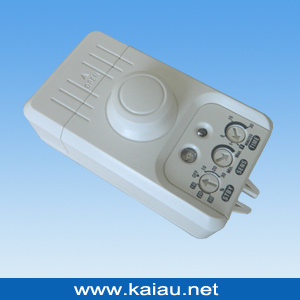

Dimmable Mv Motion Sensor (KA-DP25A)

Name: Dimmable Mv Motion Sensor (KA-DP25A)
Brand: all-electronics-online.com
SKU: 777611585
Availability: InStock
Rating: 4.5 (23 reviews)

Price:	US $ 8.5-15.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-DP25A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery Time:	Within 30 Days
Warranty:	2 Years
Package:	Customized Color Box or White Box
Type:	Microwave Sensor Switch
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Principle:	Microwave Sensor
Application:	Corridor, Warehouse,Garage,Toilets etc.

Product Description

KA-DP25A Dimmable MV Motion Sensor Specifications:
1) Power Source: 220-240V
2) Power Frequecy: 50/60Hz
3) HF system: 5.8GHz CW radar,ISM band
4) Transmitting Power: <0.5mW
5) Power Consumption: <0.5W(standby); <1W(operation)
6) Detection Distance: Diameter 2-16 meters
7) Delaying Time: 10s,30s,90s,3min,20min,30min ( adjustable)
8) Daylight Sensor: 5lux, 10lux, 30lux, 50lux, Disable
9) Stand-by Dimming Level: 10%, 20%, 30%,OFF
10) Stand-by Time: 5s, 5min, 10min, 30min, Disable
11) Installation Height: 4 meters max.
12) Motion speed:0.3-3m/s
13) Detection Angle: 360 degree
14) Working Temperature: -40~+75°C
15) Max. Rated Load: 1000W incandescent lamp
500W halogen lamp
200W energy-saving lamp(CFL&PL)
400VA/cosφ=0.5 OR 160W/20uF Max. Fluorescent lamp
200W LED lamp

KA-DP25A Introduction:
1) Automatic Dimming when used in combination with 1-10V dimmable led drivers or ballasts.
2) Built-in adjustable daylight sensor.
3) Detedtion distance, delaying time and ambient light can be precisely setted by DIP switch.
