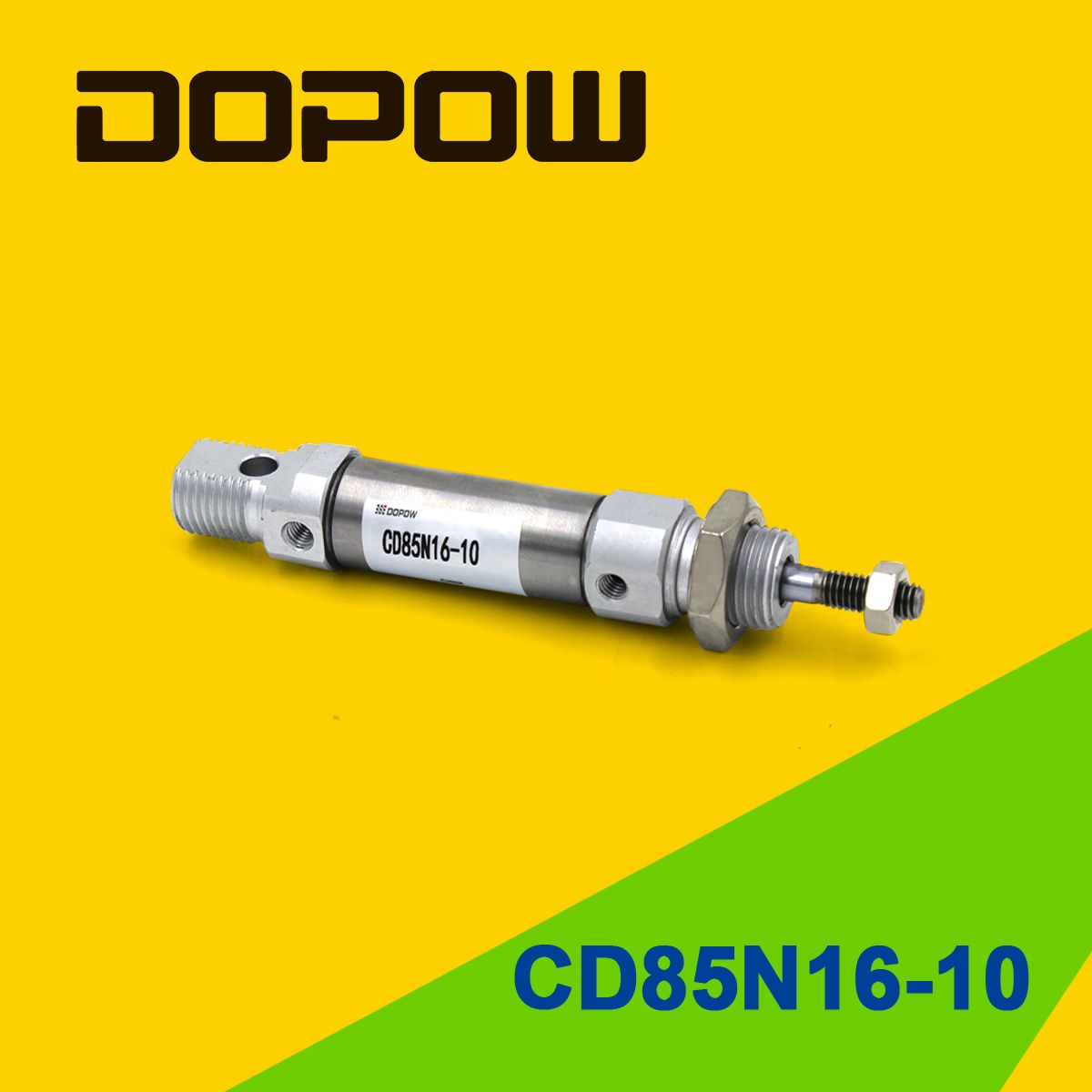

Dopow C85 European Mini Standard Cylinder

Name: Dopow C85 European Mini Standard Cylinder
Brand: all-electronics-online.com
SKU: 816606195
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 3.62-4.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

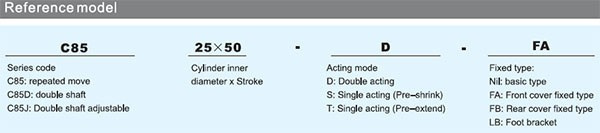

Prod Model:	C85N16-50
Bore:	8mm/10mm/12mm/16mm/20mm/25mm
Stroke:	10-300mm
Promise Pressure Resistance:	1.35MPa
Port Size:	M5,1/8"
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Standard
Pressure Direction:	Double-acting Cylinder

Product Description

DOPOW C85 air cylinder (also called a pneumatic cylinder) has a stainless-steel body and a chrome-plated steel single piston rod to help resist corrosion and tarnishing.The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement.

1. When load changes in the work ,the cylinder with abundant output capacity shall be selected.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity ,much dust or water drops,oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. The cylinder shall be carried out test run without load before application.Prior to run,buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time,please conduct anti-rust treatment to the surface.Anti-dust caps shall be added in air inlet and outlet ports.

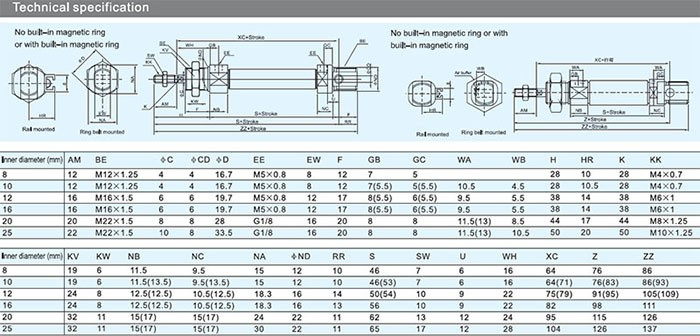

Specification
Bore size(mm)	8	10	12	16	20	25
Fluid	Air
Action type	Double acting
Max.Operating pressure	1.0Mpa
Min.Operating pressure(Mpa)	0.1	0.08		0.05
Environment and fluid temperature	-20~80ºC(Built-in magent:-10~60ºC)
Cushion type	Rubber cushion(Standard),Air cushion(optional)
Piston speed	50~1500mm/s
Lubrication	Not required(Non-lube);To give the oil,please use turbine No.1 oil ISO VG32.
Allowable kinetic energy(J) (Mat buffering)	0.02	0.03	0.04	0.09	0.27	0.4
Allowable kinetic energy(J) (Air buffering)	-	0.17	0.19	0.4	0.66	0.97
Pore size	M5 X 0.8				G1/8
