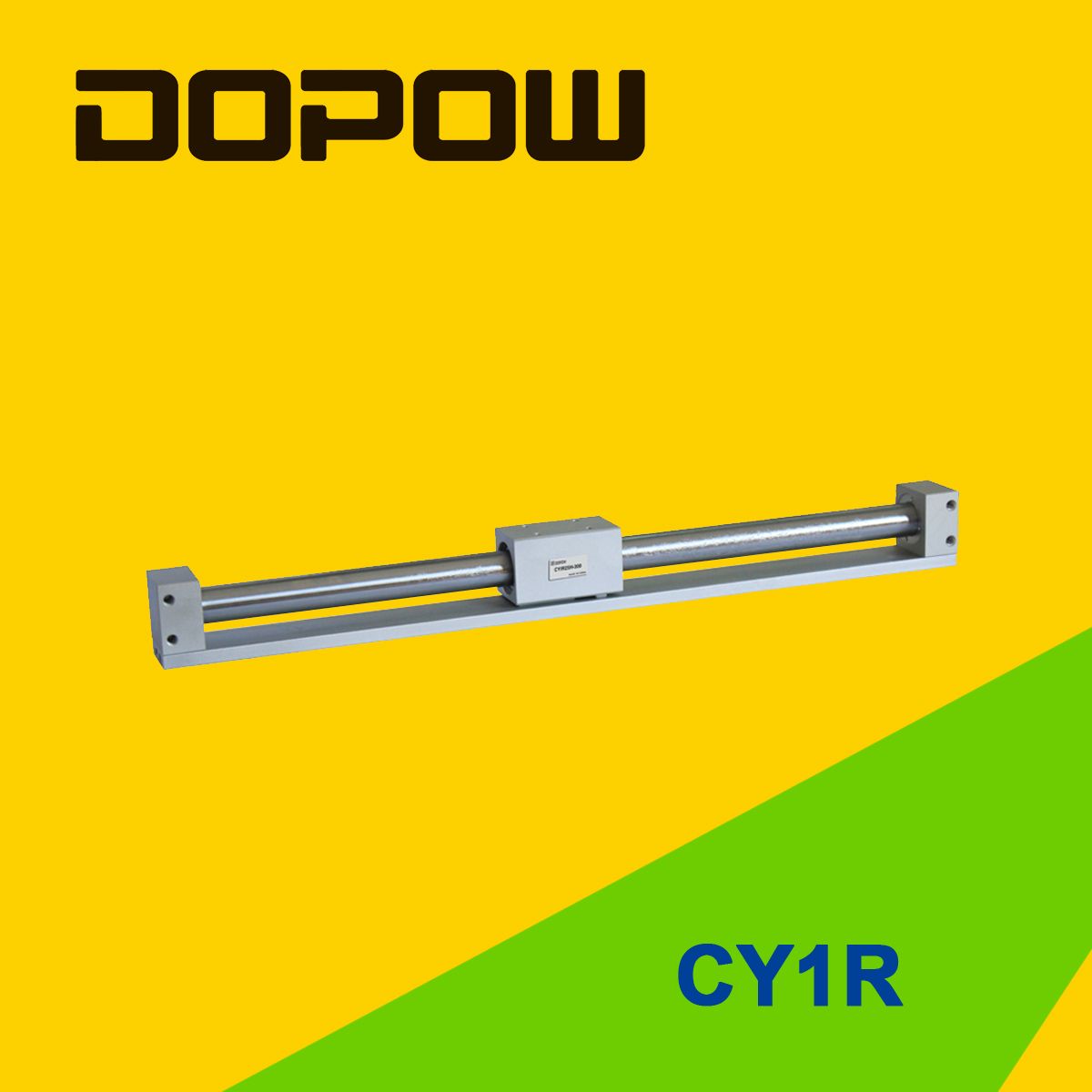

Dopow Cy1r Magnetically Coupled Rodless Cylinder Piston Cylinder

Prod Model:	CY1R
Bore:	6mm/10mm/15mm/20mm/25mm/32mm/40mm/50mm/63mm
Stroke:	5-1000mm
Max Using Pressure:	0.7MPa
Buffer Type:	Beginning and End Rubber Buffer
Port Size:	M5,1/8"
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Nonstandard
Pressure Direction:	Double-acting Cylinder

Product Description

DOPOW Rodless Air Cylinder CY1R Magnetically Coupled Type Direct mount type, with switch rail, bore sizes (mm): 6, 10, 15, 20, 25, 32, 40, 50, 63, Maximum operating pressure: 0.7MPa.Variety of auto switches available.Rodless Air Cylinder CY1R Magnetically Coupled Type Direct mount type, with switch rail, bore sizes (mm): 6, 10, 15, 20, 25, 32, 40, 50, 63, Maximum operating pressure: 0.7MPa, ambient temperature: -10 to 60°C.Variety of auto switches available.

1. Magnetically coupled rodless cylinder, have a wide range of applications, and save mounting space.
2. Direct mount type, with switch rail
3. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm.Bore sizes (mm): 6, 10, 15, 20, 25, 32, 40, 50, and 63
4. Maximum operating pressure:   0.7MPa
5. Ambient temperature:   -10 to 60°C
6. With no external leakage, the CY series can be used in many diverse environments.
7. Loads and moments are possible through the use of integrated guides.
8. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application.
9. The 5 different model variations offer widest application choice.
10. Auto switches are integrated as standard.


Bore(mm)	6	10		15	20		25	32	40	50	63
Working medium	Air
Acting mode	Double acting
Proof pressure	1.05MPa
Max.working pressure	0.7MPa
Min,working pressure	0.18MPa
Operating temperature	5-60centigarde
Piston speed	50-400mm/s
Cushion	Rubber cushion on each side
Lubrication	Not required
Port size	M5X0.8		PT1/8"			PT1/4"
