Dopow Msqb50 Rack and Pinion Rotary Pneumatic Cylinder

Name: Dopow Msqb50 Rack and Pinion Rotary Pneumatic Cylinder
Brand: all-electronics-online.com
SKU: 816243925
Availability: InStock
Rating: 4.8 (136 reviews)

Price:	US $ 56.99-267.99/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQB50
Bore:	10mm/20mm/30mm/50mm
Stroke:	None
Max Using Pressure:	0.7MPa
Port Size:	M30.5/M50.8
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Standard
Pressure Direction:	Double-acting Cylinder

Product Description

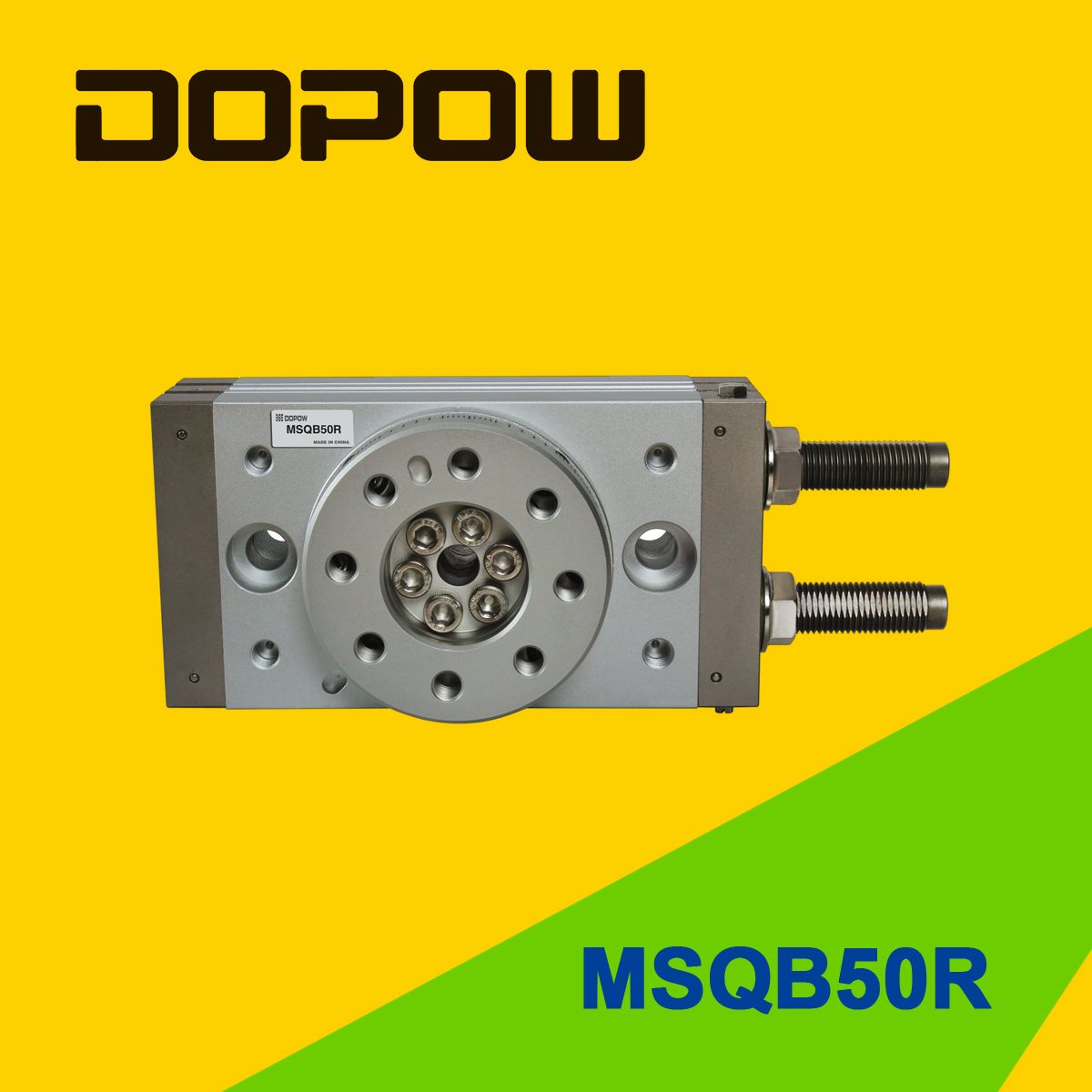

DOPOW MSQ compact rotary table is ideal for material transfer applications. It incorporates load bearings and a mounting face with a rack-and-pinion style rotary actuator. The seven sizes are 10, 20, 30, 50 with rotational adjustments.

The MSQ compact rotary table is ideal for material transfer applications.
It incorporates load bearings and a mounting face with a rack-and-pinion style rotary actuator.
The seven sizes are 10, 20, 30, 50, 70, 100, and 200 with rotational adjustments from 0-190 degrees, and auto switch capability.
Additional features include a hollow shaft and direct load mounting possibility.

Bore(mm)			10	20	30	50	70	100	200
Motion Pattern			Double action
Working Fluid			Filtered compressed Air (No lube)
Cushion Type			Rubber bumper(standard)/Oil Pressure Shock Absorber(optional)
Angle Adjustable Range			0~190°
Working Pressure Range			With adjustable angle screw :0.1~1.0 Mpa With Shock Absorber:0.1~0.6 Mpa
Steady Swing Time Rang			0.2~1.0s/90°				0.2~1.5s/90°	0.2~2.0s/90°	0.2~2.5s/90°
			0.2~0.7s/90°				0.2~1.0s/90
Operating Temperature			-10~60°C(No freezing)
Allowed Power	With adjustable angle screw		0.007J	0.025J	0.048J	0.081J	0.24J	0.32J	0.56J
	With Shock Absorber		0.039J	0.116J		0.294J	1.1J	1.6J	2.9J
Piston Diameter			φ15	φ18	φ21	φ25	φ28	φ32	φ40
Port Size		End ports	M5*0.8		1/8"
		Side ports	M5*0.8

We were founded in 2007, Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Since its inception, DOPOWhas researched and developed various kinds of products while constantly predicting and meeting future needs as a pioneer in automation technology. Today, our product lineups have tens of thousands of items, and we play an active role in a broad range of industrial fields. With our comprehensive technological strengths, we can develop creative products in cohort with customers
