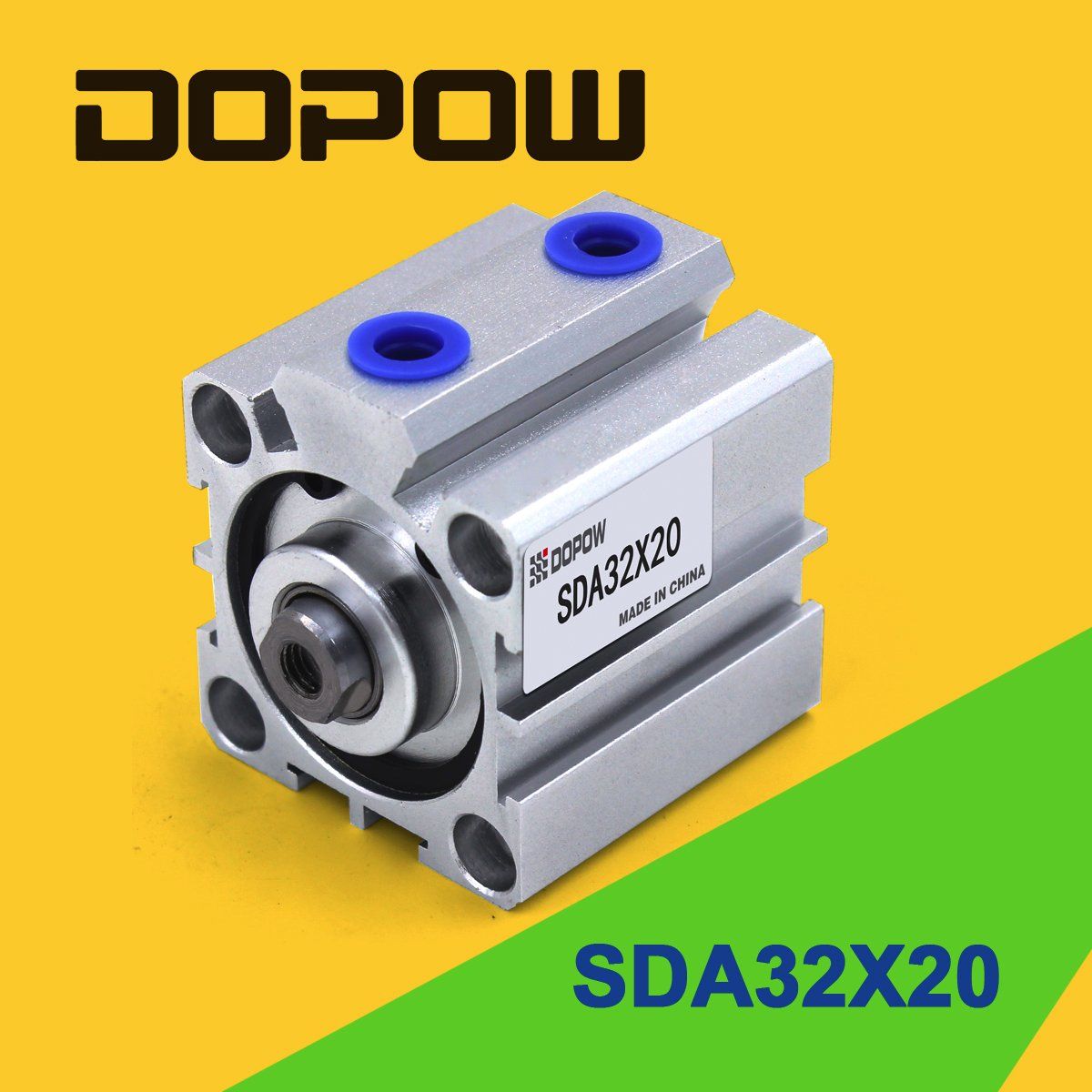

Dopow Sda32-20 Pneumatic Cylinder Compact Cylinder

Name: Dopow Sda32-20 Pneumatic Cylinder Compact Cylinder
Brand: all-electronics-online.com
SKU: 816366885
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	US $ 3.15-3.23/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SDA32-20
Bore:	12mm/16mm/20mm/25mm/32mm/40mm/50mm/63mm/80mm/100mm
Stroke:	5-1000mm
Max Using Pressure:	0.9 MPa
Promise Pressure Resistance:	1.35MPa
Port Size:	M5, 1/8, 1/4, 3/8
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Nonstandard
Pressure Direction:	Double-acting Cylinder

Product Description

Manufactured by our enterprise.
Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable.
The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
Compact structure can effectively save installation space.
There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch.
Mounting accessories with various specifications are optional.

Details

Bore size(mm)

100

Acting type

Double acting

Single acting- Push type

Fluid

Air(to be filtered by 40µ m filter element)

Operating pressure

Double acting

0.1~1.0MPa(15~145psi)(1.0~10.0bar)

Single acting

0.2~1.0MPa(28~145psi)(2.0~10.0bar)

Proof pressure

1.5MPa(215psi)(15bar)

Temperature ºC

-20~80

Speed range mm/s

Double acting:30~500 single acting:50~500

Stroke tolerance

Cushion type

Bumper

Port size

M5*0.8

1/8"

1/4"

3/8"

PT thread,NPT thread and G thread are available.

We were founded in 2007, Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Since its inception, DOPOWhas researched and developed various kinds of products while constantly predicting and meeting future needs as a pioneer in automation technology. Today, our product lineups have tens of thousands of items, and we play an active role in a broad range of industrial fields. With our comprehensive technological strengths, we can develop creative products in cohort with customers
