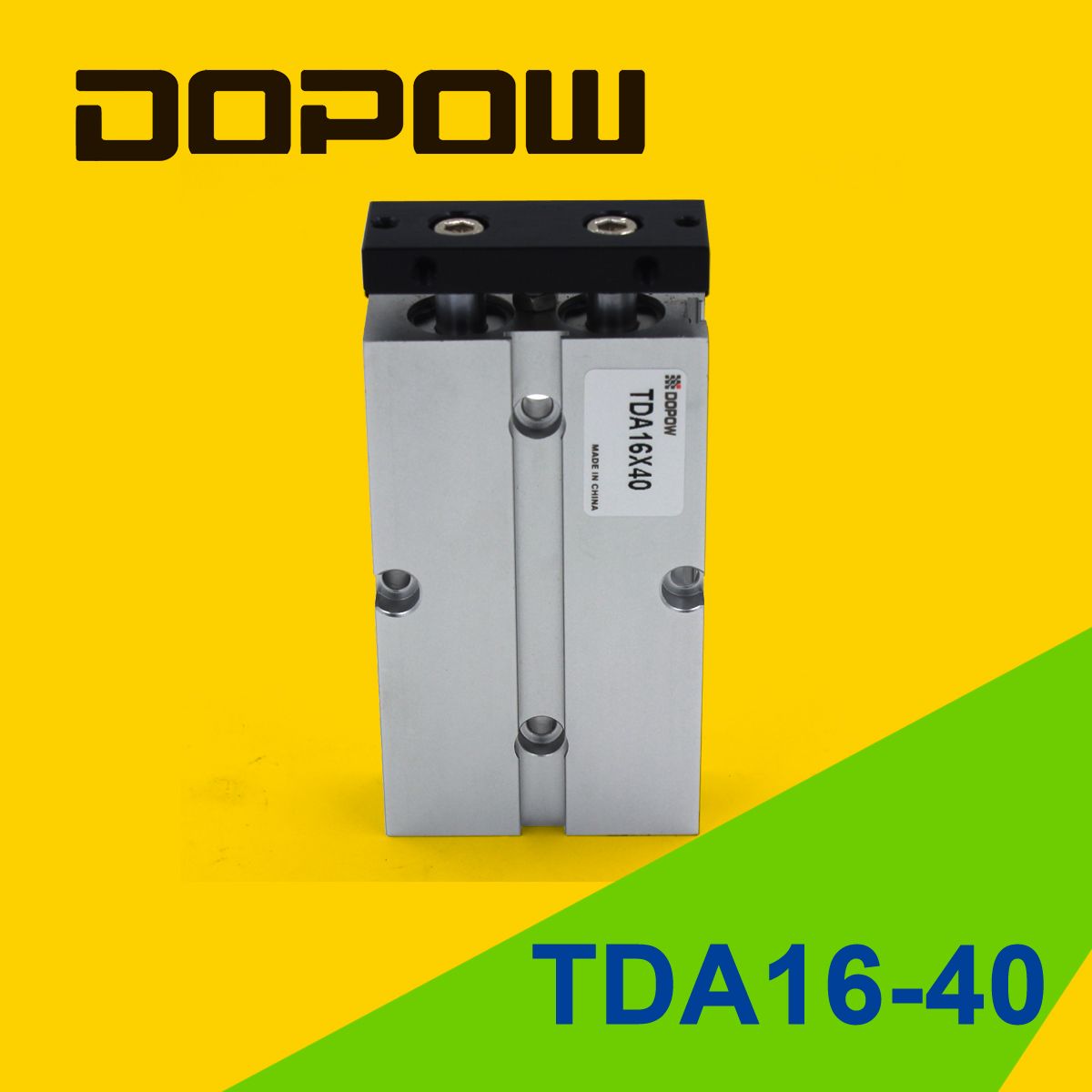

Dopow Tn (TDA) 16-40 Twin-Rod Cylinder Bore Double Action

Name: Dopow Tn (TDA) 16-40 Twin-Rod Cylinder Bore Double Action
Brand: all-electronics-online.com
SKU: 816597205
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	US $ 2.99-3.99/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TDA16-40
Bore:	10mm,16mm,20mm,25mm,32mm
Stroke:	10-150mm
Max Using Pressure:	0.9 MPa
Promise Pressure Resistance:	1.35MPa
Port Size:	M5*0.8
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Nonstandard
Pressure Direction:	Double-acting Cylinder

Product Description

DOPOW TN Double Cylinder Series widely used in pneumatic machines and some industrial fields, like printing
industry, automatic control industry, etc. Dual-piston rod provides a high degree of anti-bend and reverse the
rigidity of the cylinder, ensuring excellent service life and oriented performance. Reserve assembly tank in the
external of cylinder body, so that it is easy for the magnetic switch in installation, the location of fixed and
adjustment.

Specification
Enterprises standard is implemented.
Embedded installation and fixation mode saves the installation space.
It is good resistance to bending and twisting moments.
Mounting holes on three sides facilitates multi-position mounting.
Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.

Details

Bore size(mm)	10	16	20		25	32
Acting type	Double acting
Fluid	Air(to be filtered by 40µ m filter element)
Operating pressure	0.1~1.0MPa(14~145psi)
Proof pressure	1.5MPa(215psi)
Temperature ºC	-20~70
Speed range mm/s	30~500
Adjustable stroke mm	-10~0
Stroke tolerance	+1.0 0
Cushion type	Bumper
Non-rotating tolerance	±0.4°			±0.3°
Port size	M5*0.8
Retract position.
PT thread, NPT thread and G thread are available.
