Name: Dry and Wet Vacuum Cleaner AC Induction Motor
Brand: all-electronics-online.com
SKU: 803989225
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	V1J-PH22
Name:	Vacuum Cleaner Motor
Application:	Vacuum Cleaner
Rated Voltage:	220-240V
Certifiacate:	Ce,CCC
Condition:	New
Package:	Pallet
Function:	Driving
Power Source:	Vacuum Cleaner Motor

Product Description

Technical parameter

Rated voltage: 220-240V

Technical parameter

Rated voltage: 220-240V

Rated frequency: 50/60HZ

Rated input power: 1200±5% W

Max vacuum degree: ≥ 24KPa

Max airflow: ≥2.5 m3/min

Max suction power: ≥410

Max efficiency: ≥40%

Speed of full open: 32000rpm

Direction of rotation: CCW when viewed from input airside

Insulation class: Single CLE

Insulation resistance: ≥50 MΩ

Dielectric strength: 1800V/S ≤5mA

Spark: ≤2

Noise: ≤98 dB(A)

Vibration: ≤15

Temperature rise: ≤90

Life: ≥500H

Certificate: CE, CCC, CB

Industrial motor assembly drawing

Competitive advantages

Variety of application, easy operation.

We have Overseas Service Center.

We could customize motor for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

Information needed for motor inquiry
It will be better if customer could send us detailed drawing including below information.
1. Motor drawing

2. Required effiency

3. Required power, voltage, and current

4. Required noise

5. Motor application

6. Required productivity

7. Other technical requirement

If possible, it will be better if customer can send us samples.

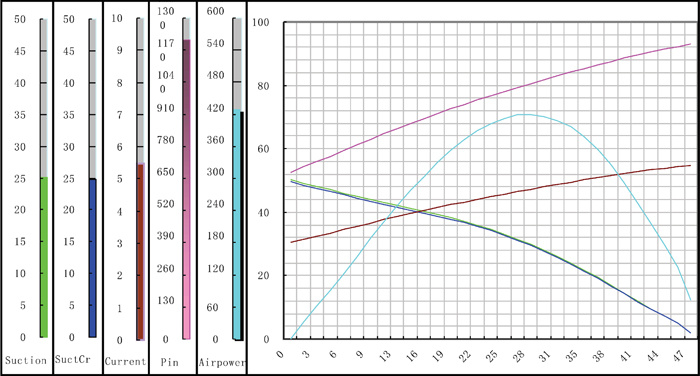

Motor performance

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. Nide has three main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line. The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc. The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Nide has following affiliated companies

Ningbo Nide Mechanical Equipment Co., Ltd

Jiangsu Nide Automation Tech Co., Ltd

Jiangsu Xiandian Mechanical Co., Ltd

Ningbo Haishu Nide International Co., Ltd

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 40 countries such as Germany, U. K, Spain, Italy, Turkey, Brazil, Argentina, Mexico, Iran, India, Vietnam, etc. Among the customers, many of them are the world-renown companies.

In the international market, Nide is the leading motor manufacturing machines supplier from China.

Nide--Just for easy, our objective is not only to make motor manufacturing easier, but also strike for making life easier.
