Insulation Material Armature Rotor and Stator Insulation Paper for Motor Winding

Name: Insulation Material Armature Rotor and Stator Insulation Paper for Motor Winding
Brand: all-electronics-online.com
SKU: 826683775
Availability: InStock
Rating: 4.9 (68 reviews)

Price:	US $ 3-4KG
Min Order:	100KG
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Various
Name:	Insulation Paper
Width:	5mm~1000mm
Condition:	New
Application:	Insulating Varnish
Type:	Insulation Paper
Color:	Customized
Brand:	Nide

Product Description

Insulation material armature rotor and stator insulation paper for motor winding,elector motor

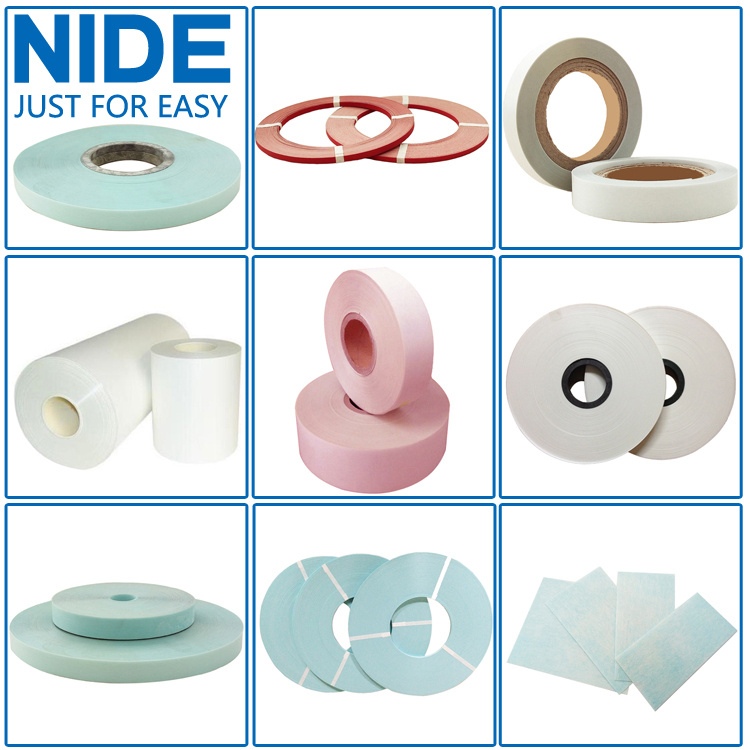

Nide provide various kinds of insulation material including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber.

DM Class F Specification

Item

Unit

Standard

Thickness

0.09

0.11

0.15

0.19

0.2

0.23

0.25

0.3

0.36

0.41

tolerance

±0.01

±0.02

±0.03

±0.04

Breakdown voltage

≥5

≥6

≥9

≥10

≥11

≥13

≥14

≥16

≥18

≥22

Tensile strength unfold

vertical

N/cm

≥60

≥80

≥150

≥190

≥220

≥260

≥280

≥330

≥350

≥380

Horizontal

N/cm

≥40

≥70

≥110

≥140

≥150

≥160

≥180

≥280

≥300

≥330

Tensile

strength fold

vertical

N/cm

≥40

≥70

≥110

≥140

≥165

≥190

≥240

≥280

≥300

≥330

Horizontal

N/cm

≥20

≥50

≥90

≥110

≥115

≥120

≥130

≥180

≥200

≥230

Thermal class

color

Light blue

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.

Hot Sell insulation material london,insulation material london,insulation paper review,paper electrical insulation materials

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. Nide has three main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line. The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc. The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Nide has following affiliated companies

Ningbo Nide Mechanical Equipment Co., Ltd

Jiangsu Nide Automation Tech Co., Ltd

Jiangsu Xiandian Mechanical Co., Ltd

Ningbo Haishu Nide International Co., Ltd

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 40 countries such as Germany, U. K, Spain, Italy, Turkey, Brazil, Argentina, Mexico, Iran, India, Vietnam, etc. Among the customers, many of them are the world-renown companies.

In the international market, Nide is the leading motor manufacturing machines supplier from China.

Nide--Just for easy, our objective is not only to make motor manufacturing easier, but also strike for making life easier.
