Dry-Type Power Transformer

Prod Model:	DRY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

1.Product description

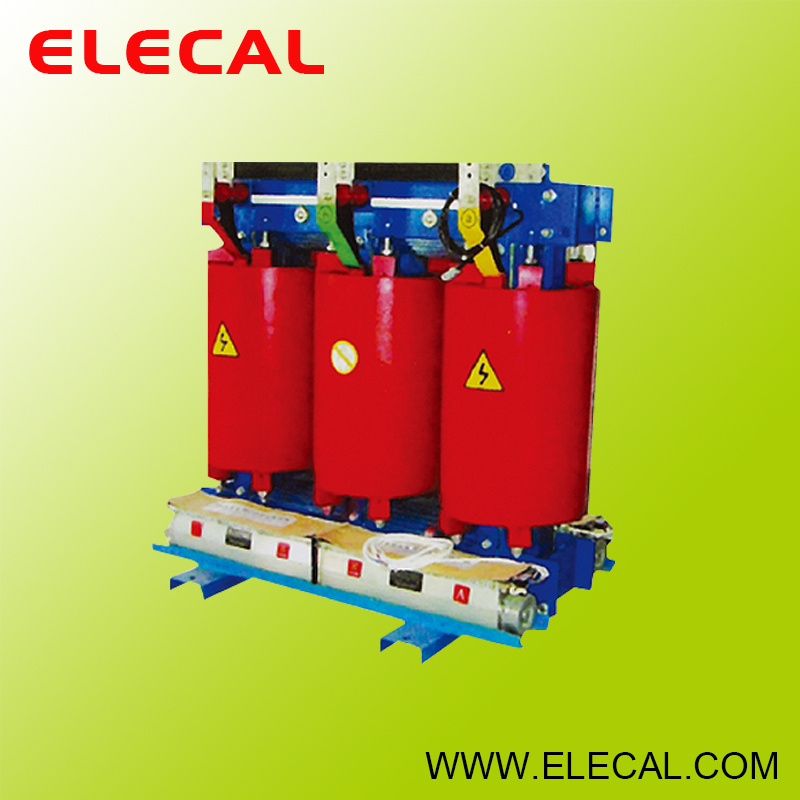

SC(B)10 resin-insulated dry-type transformer is designed basing on the Dupont(the USA) NOMEX paper insulation system. the other key components are made from imported materials (such as german MKM copper foil). with advanced manufacturing equipment and technology, the product enjoys high performance, low energy loss, safety and reliability, its especially suitable for high buildings, airports, substations and commercial centers, and any other anti-fire, anti-explode, anti-moisture places etc.

2.Specification

Type	Rated current	Voltage combination(KV)	Connection	No-load	Loss(W)	Impedance (%)
(A)	HV	LV	symbol	current(%)	No-load	load
SC10-30	1.73/43.3	6±2.5% 6±5% 10±2.5% 10±5% 10.5±2.5% 10.5±5% 11±2.5% 11±5%	0.4	Dyn11 Yyn0	2.5	190	700	4
SC10-50	2.89/72.2				2.2	270	990
SC10-80	4.62/115.5				2.1	370	1380
SC10-100	5.77/144.3				1.9	400	1570
SC10-125	7.22/180.4				1.7	470	1840
SC10-160	9.24/230.9				1.7	540	2120
SC10-200	11.6/288.7				1.5	620	2520
SC10-250	14.43/360.8				1.5	720	2750
SC10-315	18.19/454.7				1.3	880	3470
SC10-400	23.09/577.4				1.3	980	3990
SC10-500	28.9/721.7				1.3	1160	4880
SC10-630	36.4/909				1.2	1340	5870
SC10-630	36.4/909				1.2	1300	5960
SC10-800	46.2/1154.7				1.2	1520	6950	6
SC10-1000	57.7/1443.4				1	1770	8130
SC10-1250	72.2/1804.3				1	2090	9690
SC10-1600	92.4/2309				1	2450	11730
SC10-2000	115.5/2886.7				0.9	3320	14450
SC10-2500	144.3/3608.4				0.9	4000	17170
