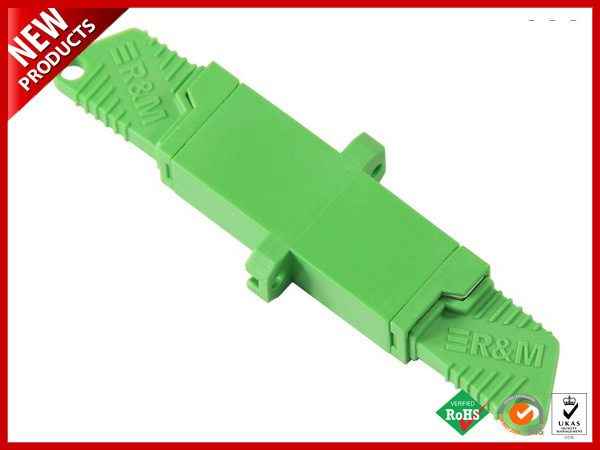

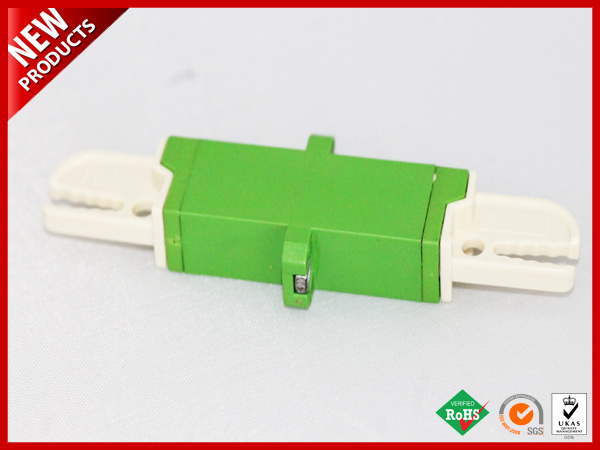

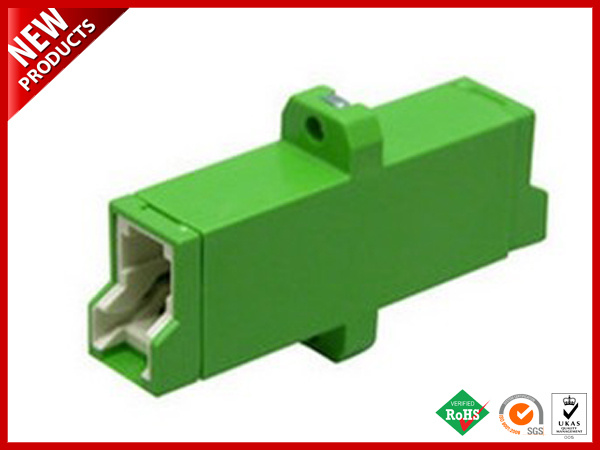

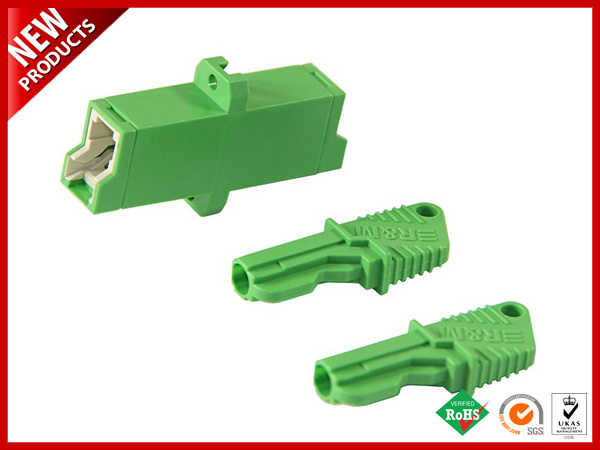

E2000 APC Fiber Optic Connector Terminator
| Price: |
US $ 0.9-1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
07874 |
| Color: |
Green |
| Fiber Type: |
Singlemode |
| Polish Type: |
APC |
| Insertion Loss: |
0.35dB |
| Return Loss: |
65dB |
| Housing: |
PC Plastic |
| Length: |
50mm |
| Patch Cord: |
E2000 |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Structure: |
E2000 |
| Light Source TYPE: |
Fiber |
| Connector Type: |
E2000 APC |
Product Description
E2000 APC Fiber Optic Connector Terminator
Features / Benefits
The SC/APC fast connector are factory pre-polished, field-installable connectors that completely
eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring
precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine
to offer an immediate low loss termination to either Single-mode or Multimode optical fibers. The Field
Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for
LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of
choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical
Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm,
3.0mm diameter single mode and Multimode fiber types, including Multi-mode 62.5/125um and
Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.
Keyed Characteristics
√ No epoxy and polishing required;
√ No expensive tools required;
√ Quick and easy fiber termination;
√ Precision mechanical alignment insures low insertion loss;
√ Superior optical performance;
√ Streamlined component design, convenient operation;
√ Pre-installed, on-site assembly without end face grinding and consideration;
√ Uses proven, molded v-groove technologies;
√ Allow optical continuity to be verified by use of visual fault locator (VFL);
√ Fiber optic communication system and telecommunication networks;
√ Fiber optic data transmission;
√ CATV;
√ Optical access.
Data Sheet | Category | Specification |
| Applicable for | Drop cable Indoor cable |
| Fiber mode | Single-mode |
| Polish Type | APC |
| Housing | Green PC Plastic |
| Operation time | S | About 50(no fiber cut) |
| Insertion Loss | dB | ≤ 0.50 |
| Insertion Loss Typical value | dB | ≤ 0.30 |
| Return Loss | dB | ≥ 45.0 |
| Fastening strength of naked fiber | N | ≥ 5 |
| Tensile strength | N | ≥ 50 |
| Reusable | Time | ≥ 10 times |
| Operating Temperature | ºC | -40~+85 |
| On-line tensile strength(20N) | dB | ΔIL≤ 0.3 |
| Mechanical durability(500 times) | dB | ΔIL≤ 0.3 |
Drop-off test
(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤ 0.3 |
Environmental performance requirements | Category | Specification |
| Condition | IL Variation | RL Variation | Appearance |
| High TEMP | 110ºC,200H | ≤ 0.5 | ≤ 5 |
No mechanical damage, like deformation, cracking and untight |
| Low TEMP | -40ºC,200H | ≤ 0.5 | ≤ 5 |
| TEMP Cycling | -40~85ºC,3.5H/Cle, 100C | ≤ 0.5 | ≤ 5 |
| HAST | 110ºC,90%RH,200H | ≤ 0.5 | ≤ 5 |
| Immersion | 25ºC,200H | ≤ 0.5 | ≤ 5 |
| Salt Mist | 5% Nacl,6.5 | | ≤ 5 |
Tensile | Pull:50N;The distance between Loading location and fast connector:
L = 22-28cm;
Duration:1min. |
≤ 0.5 |
≤ 5 |
