Name: Electric Energy Meter External Circuit Breaker Cocb-100
Brand: all-electronics-online.com
SKU: 733857532
Availability: InStock
Rating: 4.8 (58 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COCB-100
Poles:	1p+N, 2p, 3p+N,4p
Frequency:	50/60Hz
Rated Current In(a):	6,10,16,20,25,32,40,50,63,80,100
Rated Insulated Voltage Ui(V):	500
Rated Working Voltage Ue(V):	1p+N/2p:230 3p+N/4p:400
Rated Impulse Withstand Voltage Uimp(V):	6000
Instantaneous Trip Type:	C
Ics(Ka):	10
ICU(Ka):	7.5
Mechanical Life(Times):	20000
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC61009-1

Product Description

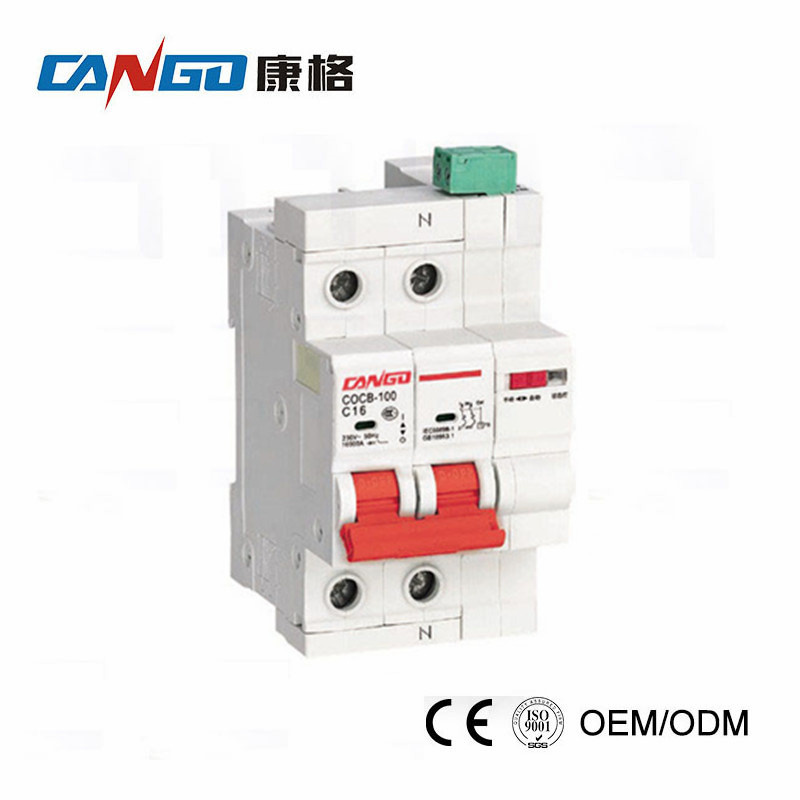

COCB-100 Electric Energy Meter External Circuit Breaker
1. The control part adopts single modulus design, width is only 18mm,
2. When owing money, it will open, renew the money, it will close.
3. Operating mechanism to circuit breaker closing time less than 2s, openning time less than 0.6s.
4. Mechanical Life over 20000 times.
5. Icu=10Ka
6. Adopt internal shaft drive, make sure circuit breaker above 2P could reliably synchromswitching.
7. Equiped with close safe lock hole.
8. Outline fit modular terminal combination electrical equipment standard, din rail installation, interchangable.
9. Low power dissipation, use environmental-friendly material, comply with Rohs.

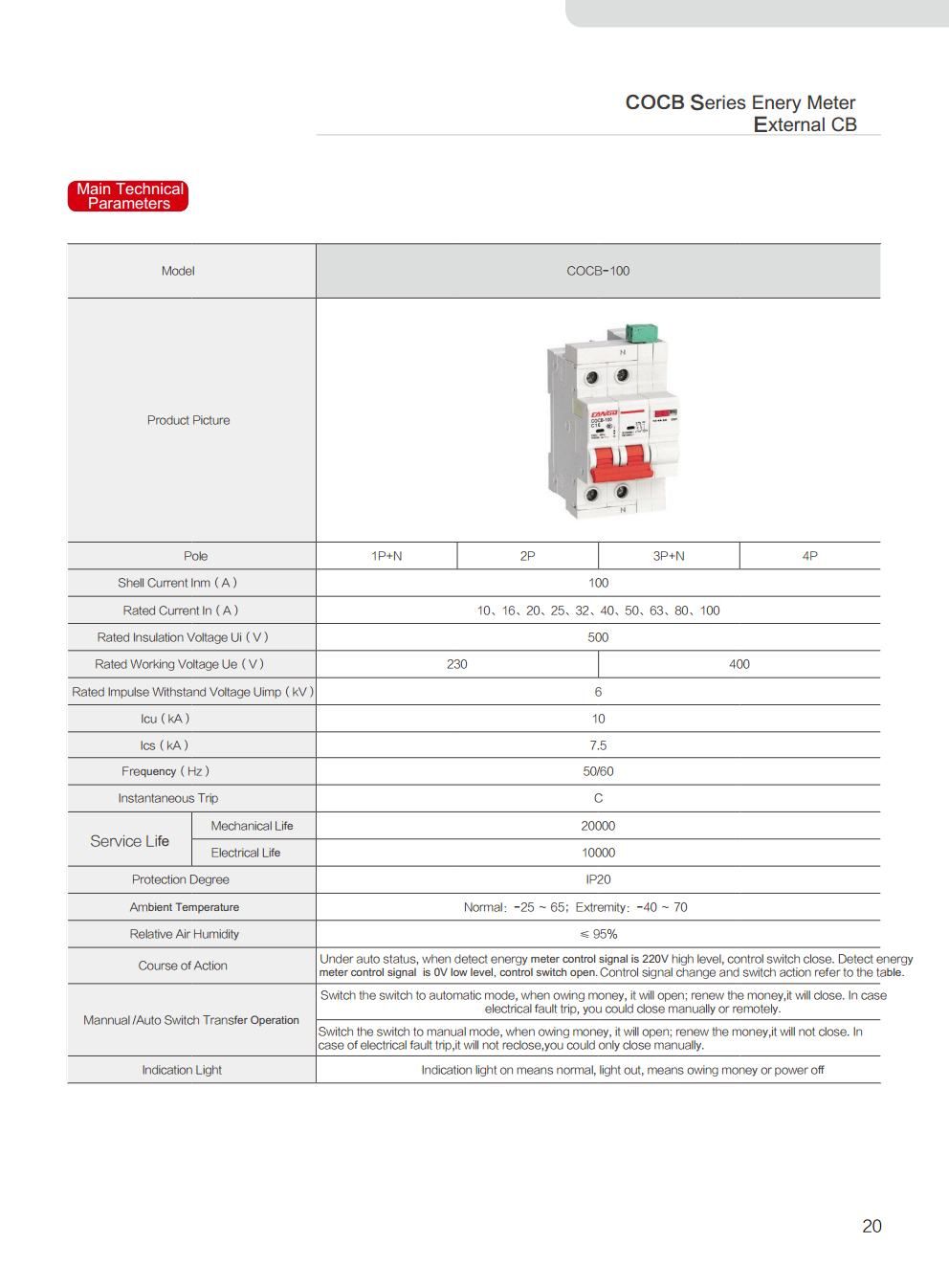

Technical Parameters of COCB-100 CB

Poles	1P+N 2P 3P+N 4P
Frequency	50/60Hz
Rated Current in(a)	10,16,20,25,32,40,50,63,80,100
Rated Insulated Voltage Ui(V)	800
Rated Working Voltage Ue(V)	230/400
Rated Impulse Withstand Voltage Uimp(V)	6000
over current trip:	Electromagnetic Type /Thermal Magnetic Type

Application of our COB Series MCB:
