Name: Fiber Optic Cable Single-mode Attenuator ST/APC
Brand: all-electronics-online.com
SKU: 814703195
Availability: InStock
Rating: 4.8 (149 reviews)

Price:	US $ 0.5-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-002
Material:	Metal
Fiber Type:	Singlemode
Core:	Singlecore
Transmission Medium:	Single-Mode
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Structure:	FC Attenuator
Light Source TYPE:	Fiber Optic
Brand:	PUNO

Product Description

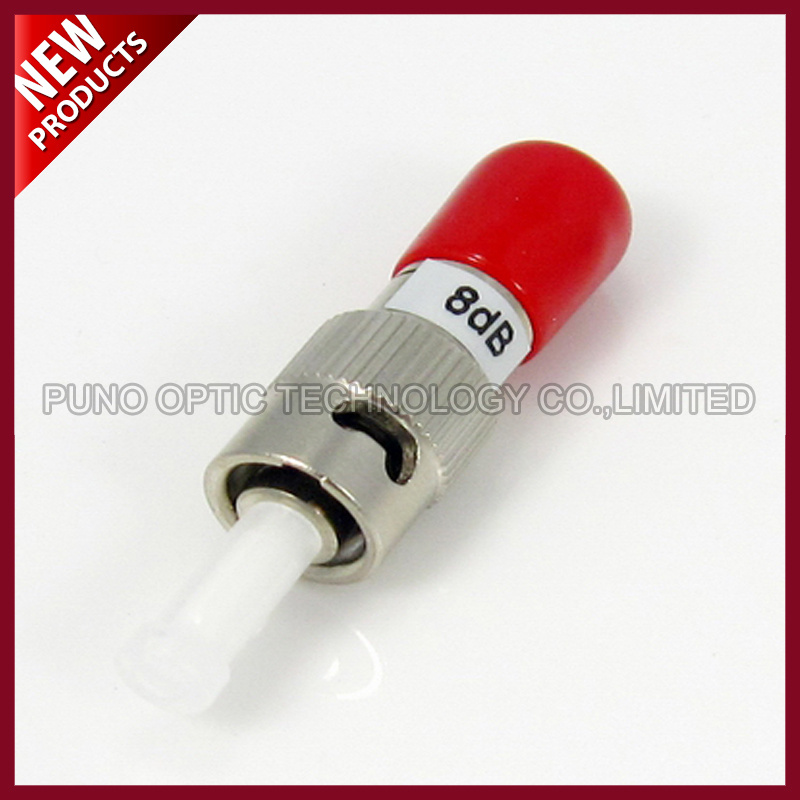

Fiber Optic Cable Single-mode Attenuator ST/APC:
ST Single-mode Fixed Optical Attenuator is generally used in optical measurement. In the when measure optical receiver sensitivity, usually place in the optical receiver input to adjust receiving light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic connector with all high performance of connectors. When we using optical attenuator, please keep the environment clean and dry, put on the dust cap when not in use, handle with care, strictly forbid collision.

Features	Application
Good Interchangeability and repetition	Equipment test
Accurate attenuation value	The connection between equipment
High reliability	The connection between jumper
A variety of optional	Cable TV network
Comply with IEC standards and ROHS requirements	Metropolitan area network, wide area network

Specification Information:

Parameter	Value	Unit
Operating Wavelength	1310/1550 ± 10	nm
Tolerance for 1~5 dB Attenuation	± 0.5	dB
Tolerance for 6~30 dB Attenuation	± 10	dB
Return Loss	> 50	dB
Operating Temperature	-40 to +75	ºC
Polarization Dependent Loss	≤ 0.1	dB
Mating Durability	≥ 1000	Cycle

Payment & Shipping Terms:

Minimum Order Quantity	100nos
Price	Negotiable
Packaging Details	1 ea With Anti-static Bag
Delivery Time	3-5 days
Payment Terms	T/T or Western Union
Supply Ability	50,000pcs monthly

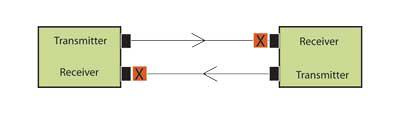

Does Multimode or Single-mode Systems need attenuators?
Generally, multimode systems do not need attenuators. Multimode sources, even VCSELs, rarely have enough power output to saturate receivers. Single-mode systems, especially short links, often have too much power and need attenuators.

Technical Data:

Parameters	Frequency band	Unit
Operating wavelength	1270-1610	nm
Maximum Attenuation	30	dB
Maximum Insertion Loss	≤ 0.5	dB
Wavelength dependent Loss	≤ 0.4	dB
Optical return loss	≥ 45	dB
Polarization dependent loss	≤ 0.1	dB
Temperature dependent loss	≤ 0.1	dB
Operating Temperature	-5 ~ +70	ºC
Storage Temperature	-40 ~ +85	ºC
Package dimension	27 (dia) X 18.0 (H)	mm

Item	Specification
Type	FC/APC Fixed Type Attenuator Male to Female
Attenuation Range	1-5 dB ± 0.5 dB 6-10 dB ± 1.0 dB 11-20 dB ± 10%
Return Loss	PC>50dB, UPC>55dB, APC>65dB
Operating Wavelength	1310nm or 1550nm or 1310nm and 1550nm

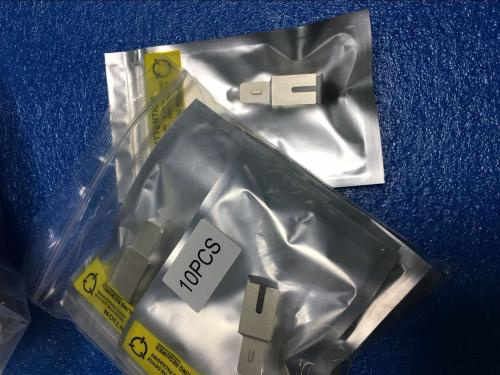

For Example Package(Quality Anti-static Bag):

Ordering Information:
1. ST/PC Single-mode Connector Type Fiber Optic Attenuator
2. ST/APC Single-mode Connector Type Fiber Optic Attenuator
3. ST/PC Multi-mode Connector Type Fiber Optic Attenuator
4. ST/PC Single-mode Adapter Type Fiber Optic Attenuator
5. ST/APC Single-mode Adapter Type Fiber Optic Attenuator
6. ST/PC Multi-mode Adapter Type Fiber Optic Attenuator
