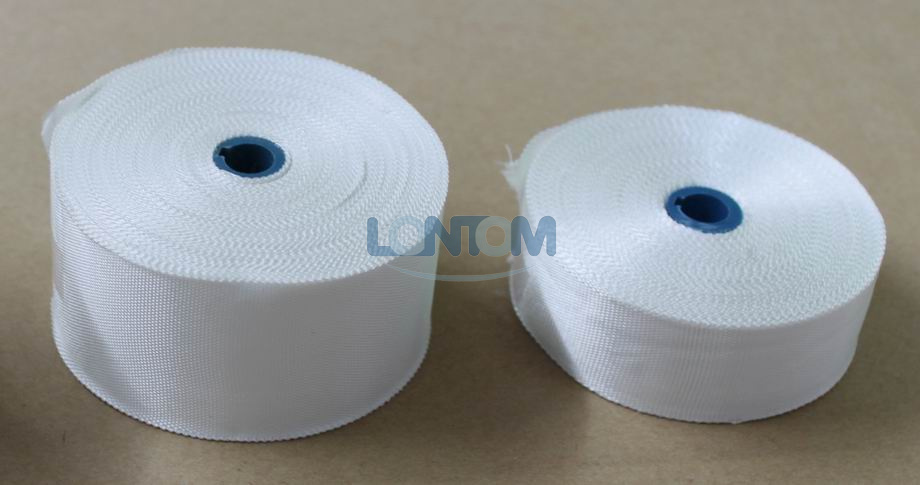

Fiberglass Woven Insulation Banding Tape

Name: Fiberglass Woven Insulation Banding Tape
Brand: all-electronics-online.com
SKU: 672410205
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LT-FGT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.13mm~0.40mm
Width:	10mm~150mm
Length/Roll:	30 ~ 100 Meters
Standard Color:	White
Flammability:	VW-1
Weave:	Plain
Cutting Tool:	Scissors
Certificate:	RoHS ,MSDS
Usage:	AC,DC Motors, Transformers
Application:	Motor
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	<10KV

Product Description

Fiberglass tape is weaved by no-alkali fiberglass yarn, with good thermal resistant and insulation features, which is widely used for windings of motor and transformer.

Main Properties:
1.Thickness: 0.13mm~0.40mm
2. Width: 10mm~150mm
3. Length/Roll: Normal package 30 or 50 meters
4. Standard color: White
5.Flammability: VW-1
6.Weave: Plain
7.Cutting tool: Scissors
8.Certificate: RoHS ,MSDS
Application:
1.AC,DC motors
2. Electric generators
3. Transformers

Technical Data:

Test content		Unit	Standard
Appearance			Smooth and white, not any impurity
Standard roll length		M	50 meters per roll and each roll allow one junction.
Tolerance	thickness	mm	± 0.01
	width	mm	± 2
	length	m	± 6
Soluble resin content		%	above: 90
Tensile strength		N/cm	above: 196
Elongation at break		%	7
Breakdown voltage min.		KV	1.5
Standard color			white
