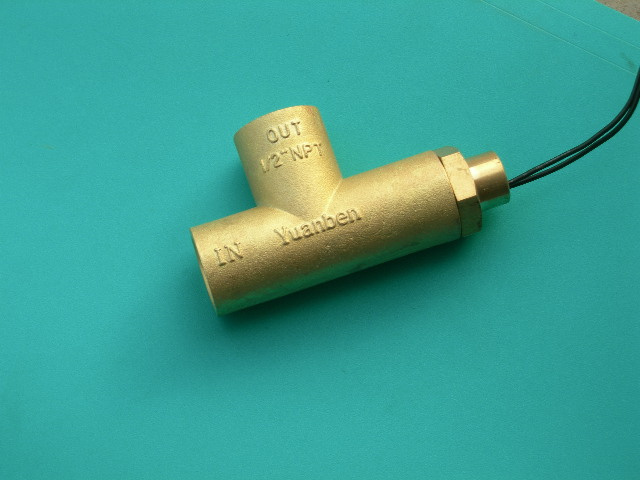

Flow Switch

Name: Flow Switch
Brand: all-electronics-online.com
SKU: 735592245
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Description
The operating principle based on a free-floating magnetic piston, which responds only to the motion of fluid within the pope line. Not to static or system pressure, in the presence of fluid flow, controlled movement of the piston actuates an external hermetically sealed reed switch, thus producing the required signal this signal can be used to actuate audible or visual alarms as well as relays or other.

Characteristic
Parts name: Material and parameter
Farts:
Housing Brass C37700
Piston PVC or PBT
Spring Stainless steel
Retaining rings Stainless steel SUS 304
Operating pressure 300 PSI max
Temperature range -40~125deg. C
Carry current 1.5A
Switch current: 1.0Amax
Switch voltage: 300Vac, 250Vdc
Power rating: 70VA
Lead wire AWG 22, to 18, 300mm length, UL1430, free lead wire
Flow range: 0.75L~8.0L/min
Set point Accurancy: 10% max
Set point Differentive: 15%
Repeatability: 2% max
Mounting: Mounting orientation (Horizontal or vertical) as signal of flow direction Mounting orientation
Mounting thread: FNPT. 3/4",
Adequate filtration and sealing Procedures should be used when mounting in flow line

Made of brass material, 3/4"FNPT threads, the flow rating setting can be selected from 0.5GPM to 5GPM.

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
