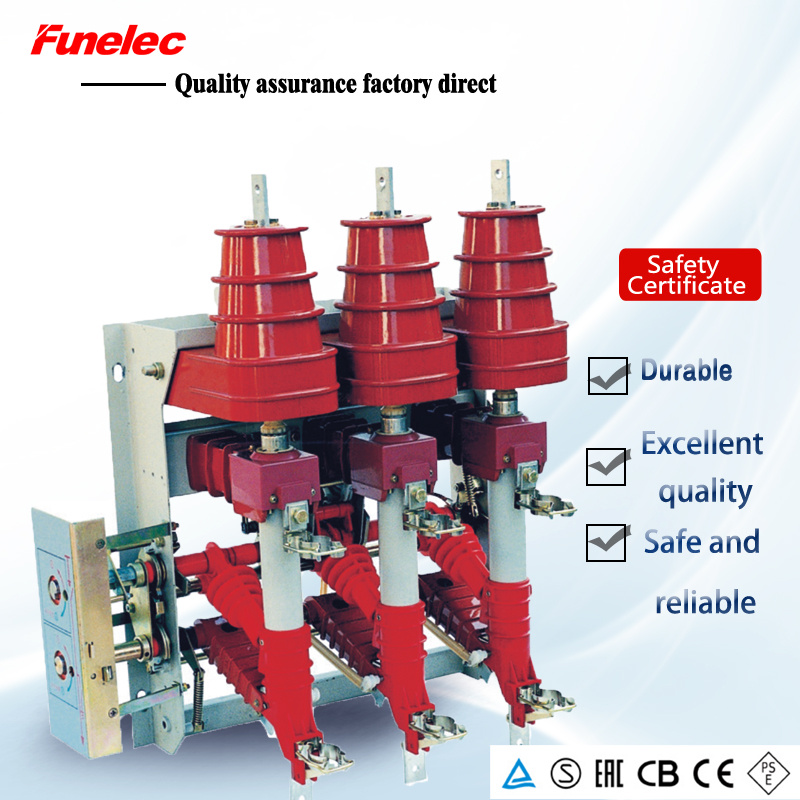

Fnr12-12 Series Indoor AC Hv Load Switch with Fuse

Name: Fnr12-12 Series Indoor AC Hv Load Switch with Fuse
Brand: all-electronics-online.com
SKU: 728104692
Availability: InStock
Rating: 4.4 (67 reviews)

Price:	US $ 500-600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FN12-12
Rated Voltage:	12kv
Rated Frequency:	50Hz
Mechanical Life:	4000
Rated Current:	630A
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Poles Number:	3
Certification:	CCC
Structure:	Vcb

Product Description

Product Description

FKN12-12D pneumatic type load switch, FKRN12A - 12Dseries pneumatic type load switch fuse combination electric appliance, three-phase power distribution system applicable to 12 kv and below, as transformers, cables, overhead lines and other electrical equipment control box of protection;Especially suitable for the terminal station and box transformer substation of power grid.And is suitable for ring network, the double radiation control and protection power supply unit.

FKN12-12D series pneumatic load current and overload current.

FKN12-12D series pneumatic type load switch fuse combination electric appliance can share the load current, overload current.The breaking short circuit current.

Product Specification

Item		Unit	FN12-12/630	FNR12-12/100-31.5
Rated voltage		kV	12
Rated frequency		Hz	50
Rated current		A	630	125
Rated insulation level	1min power frequency with stand voltage	kV	Phase to earth, between poles:42;Isolating fracture; :48
	Rated lightning impulse withstand voltage(Phase to earth, between poles, open contacts)	kV	Phase to earth, between poles:75;Isolating fracture; :85
Rated peak withstanding current		kA	50
4S rated short-time withstanding current		kA /s	20
Rated breaking current	Breaking no-load transformer capacity	kVA	1250
	Rated short-circuit breaking current(expected)	kA		31.5
	Rated transfer current	kA		1.5
Earthing switch rated withstand current(peak)		kA	50
Earthing switch 4S rated short-time withstand current		kA	20(2S)
control loop supply voltage		V	110;220
Mechanical life		times	4000
