FTTH Outdoor Optical Fiber Figure 8 Flat Drop Cable-FRP
| Price: |
US $ 0.01-3/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GJYXFCH-1B6/2B6/4B6 |
| No.of Fibers: |
1fibers, 2 Fibers, 4 Fibers |
| Material: |
LSZH |
| Out Sheath Diameter: |
2.0*5.0mm (1-2f),2.0*5.2mm (4f) |
| Self Support Messenger Wire: |
Bright Steel Wire |
| Color: |
Black |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
According to Customers Request |
| Sheath Material: |
LSZH |
Product Description
FTTH Outdoor Optical Fiber Figure 8 Flat Drop Cable-FRP
Outdoor Figure 8 Flat Drop cable is a cable designed specifically for FTTH project. It adopts double reinforcement figure 8 structure, the optical fiber unit is positioned in the center, two parallel fiber reinforced steel wire are placed at two sides, then the cable is completed with a black or white color LSZH Sheath. This drop cable can directly drop into the building household from the fiber optic splice closure.
Key Features
Suitable for limited space field of the branch, indoor series;
Laid to facilitate construction operations;
Jacket use low smoke, halogen-free flame-retardant materials;
Prevent lightning and strong electric environment;
FRP strengthen the component materials.
Standards
Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following
standard specifications.
Optical fiber …ITU-T G.652D,G657,IEC 60793-2-50
Optical cable …EN 60811,EN 60794-1-2
Technical Parameters| Drop Cable Type | GJYXFCH-1B6/2B6/4B6 |
| No.of fiber | 1F-4F |
SM fiber | Fiber type | G657A1, A2 | Concentricity error | ≤0.5um |
| Cladding diameter | 124.8±0.7um | Cladding non-circularity | ≤0.7% |
| Coating diameter | 245±5um | Fiber color | standard spectrum |
| Central strength member | Material | FRP | Color | white |
| Diameter | 0.5mm | Qty | 2 |
| Self support messenger wire | Material | bright steel wire | Diameter | 1.0mm |
| Out sheath | Material | LSZH | Color | black |
| Diameter | 2.0*5.0mm (1-2F)
2.0*5.2mm (4F) | Thickness | >=0.5mm |

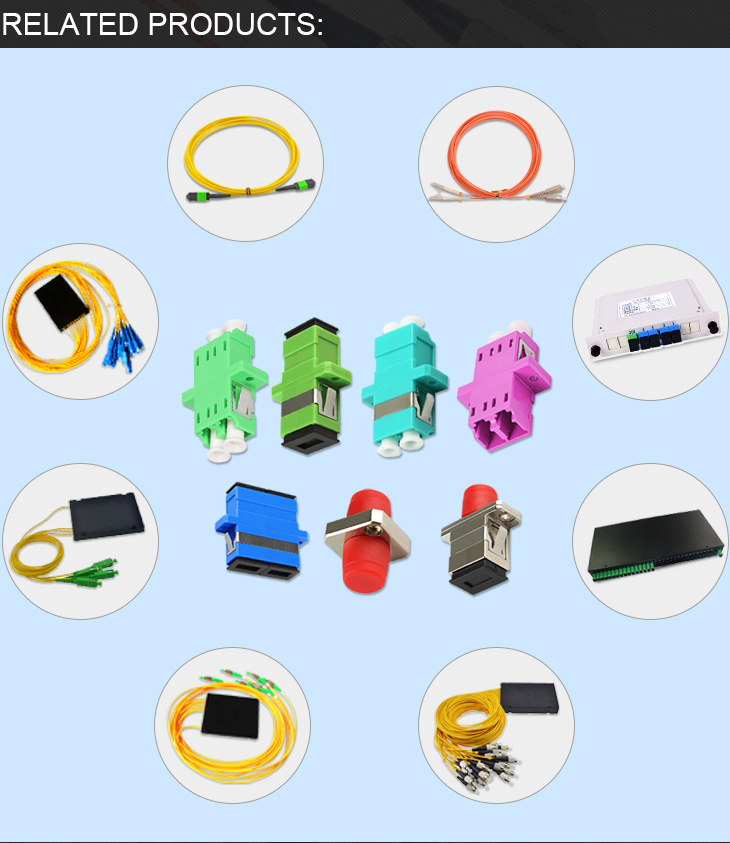

Related products
Our fiber patch cord production line:

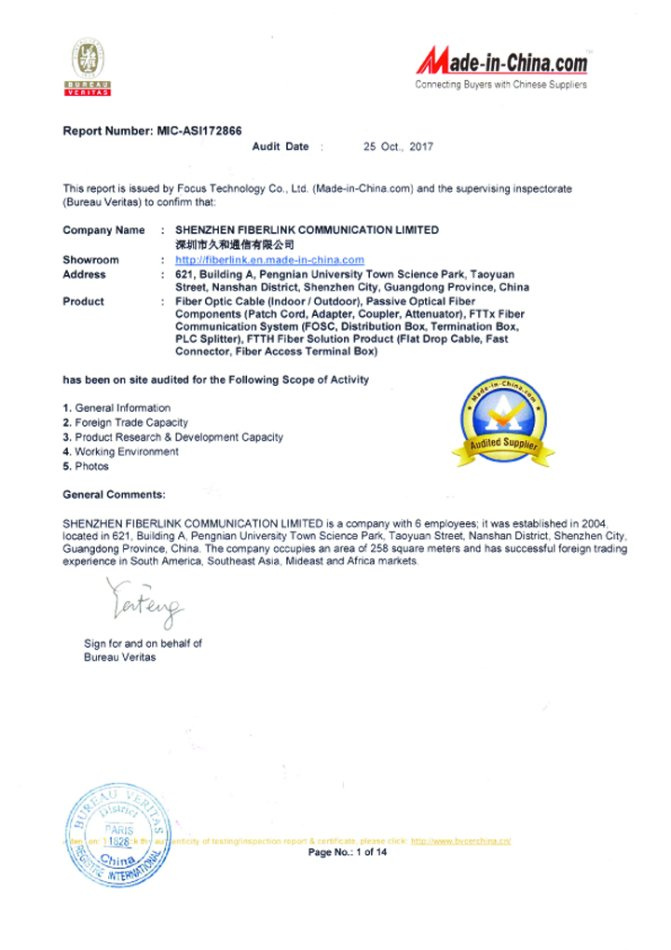

Certifications
