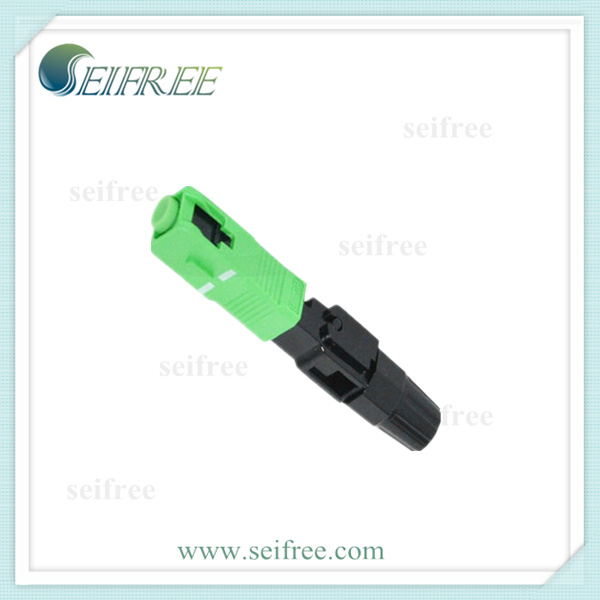

FTTH Sc/APC Fiber Fast Connector for Outdoor Field Assembly

Name: FTTH Sc/APC Fiber Fast Connector for Outdoor Field Assembly
Brand: all-electronics-online.com
SKU: 780005055
Availability: InStock
Rating: 4.5 (23 reviews)

Price:	US $ 0.78-0.88/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SADP-F-S-S-S-SC-MAPC-00-00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G52D, G657A (Optional)
Jacket Type:	PVC
Insertion Loss:	<0.3dB
Return Loss:	>55dB
Cable Available:	2mm, 3mm Fiber Optic Patch Cord (Optional)
Application 1:	Drop Cable
Application 2:	FTTH
Application 3:	Fiber Optic
Application 4:	Fan out Patch Cord
Application 5:	Pigtail
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC

Product Description

Features
1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G652D/G657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	10unit/box

FAQ
1.Is your company a manufacturer or dealer?
---We have our own factory in Wuhan, China.

2.Can you provide free samples for us?
---Sure, we can provide free samples for you, but the freight should be paid by you.

3.What's the lead time for all the goods that I required?
---It depend on the quantity of products. Generally, it would be 1-2 weeks.

4.What's the warranty for your products?
----Normally it is 1 year.

5.What's your payment term?
---It is 100% T/T in advance.

6.What's the MOQ for your products?
---1pcs is okay.

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
