| Prod Model: |
HG2B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Type: |
Current Fuse |
| Usaga: |
Low Voltage |
Product Description
Application

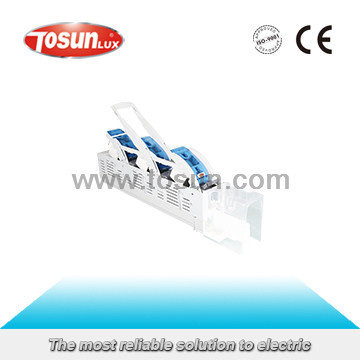

HG2B Fuse Type Isolating Switch Disconnect Switch is applicable in the circuit of rated voltage AC 660V and below, rated current AC160A-630A, rated frequency of 50Hz. In the power distribution system of industrial enterprises, it is mainly used in distributor circuit and motor circuit with high short-circuit current for infrequency manual making, breaking and disconnecting the power supply.
Specification
Conventional Heat Current(A) | 160A | 250A | 400A | 630A |
Rated Working Current le | 400VAC-23B | 160A | 250A | 400A | 630A |
660VAC-22B | 100A | 200A | 315A | 425A |
Rated Making Capacity(A r,m,s) | 10le |
Rated Breaking Capacity(A r,m,s) | 8le |
Rated Limited Short Circuit Current(r.m.s) | 50kA |
Mechanical Life | 3000 | 2000 | 1000 | 1000 |
Electrical Life(times) | 600 | 400 | 200 | 200 |
Fuse Loss Power | 12W | 24W | 34W | 48W |
Model | Assorted Fuse | Switch Rating Heat Current(A) | Rated Current(A) |
HG2B-160A | NT00 | 160 | 4,6,10,16,20,25,32,35,40,50,63,80,100,125,160 |
HG2B-250A | NT3 | 250 | 80,100,125,160,200,224,250 |
HG2B-400A | NT3 | 400 | 125,160,200,224,250,300,315,355,400 |
HG2B-630A | NT3 | 630 | 315,335,400,425,500,630 |
