| Prod Model: |
HR17 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Type: |
Current Fuse |
| Usaga: |
Low Voltage |
Product Description
Application

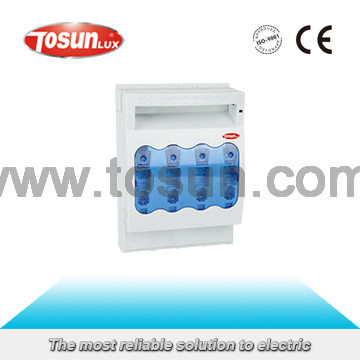

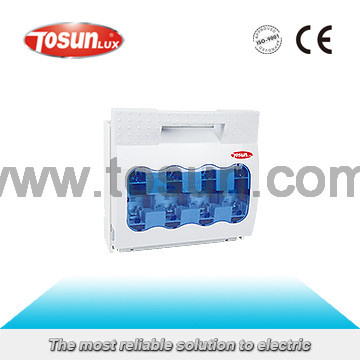

HR17 Fuse Type Isolating Switch Disconnect Switch is applied to the high short circuit with AC 50/60Hz, voltage up to 690V and rated working current up to 630A. It processes upper and lower end input and output structure, leads in equipment with knife-edge and arc extinguishing equipment, and also can be operated with load. It is used as power switch, isolating switch and emergency switch, fro preotecting current.
Specification
Model | Rated Working Current le | Rated Short Circuit Connecting Capacity lcm | Rated Limit Short Circuit Current lnc | Rated Insulated Voltage Ui | Use Type | Number of Poles | Matched Fuse Link |
HR17-160 | 160A | 1600A | 50kA | 690V | AC-23B | 3,4 | NT00 |
HR17-250 | 250A | 2500A | NT1 |
HR17-400 | 400A | 4000A | NT2 |
HR17-630 | 630A | 6300A | NT3 |
