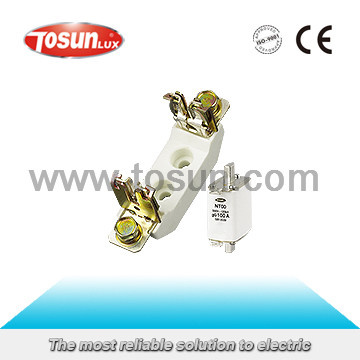

Fuse with Low Voltage (NT)

Name: Fuse with Low Voltage (NT)
Brand: all-electronics-online.com
SKU: 755100965
Availability: InStock
Rating: 4.8 (62 reviews)

Price:	US $ 0.4-14.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	500V, 600V, 380V
Current:	2-1000A
Rated Power Loss:	0.41-75W
Rated Current Of Base:	160A, 250A, 400A, 630A, 1000A
Certificate:	IEC-60269
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage

Product Description

APPLICATION

1. NT low voltage fuse features light in weight, small in size, low in power loss and high in
breaking capacity.

2. Widely used in overload and short circuit protection of electric installation.

3. Conform to IEC-60269.

SPECIFICATION

Type	Fuse Link				Fuse Base
Type	Rated Current (A)	Rated Voltage (V)	Rated Power Loss (W)	Weight	Type	Rated Current (A)	Weight
NT00C	2	500, 600	0.41	0.15	Sist 101	160	0.2
	4		0.62
	6		0.81
	10		1.08
	16		1.60
	20		1.81
	25		2.31
	32		3.07
	36		3.17
	40		4.05
	50		4.25
	63		4.70
	80		5.7
	100		7

Type	Fuse Link				Fuse Base
Type	Rated Current (A)	Rated Voltage (V)	Rated Power Loss (W)	Weight	Type	Rated Current (A)	Weight
NT00	4	500, 600	0.67	0.15	Sist 101	160	0.2
	6		0.89
	10		1.14
	16		1.65
	20		1.94
	25		2.50
	32		3.32
	36		3.56
	40		4.30
	50		4.5
	63		4.6
	80		6
	100		7.3
	125	500	7.6
	160	500	9.6

Type	Fuse Link				Fuse Base
Type	Rated Current (A)	Rated Voltage (V)	Rated Power Loss (W)	Weight	Type	Rated Current (A)	Weight
NT0	6	500, 600	0.67	0.2	Sist 101	160	0.32
	10		0.89
	16		1.14
	20		1.65
	25		1.94
	32		2.50
	35		3.32
	40		3.56
	50		4.30
	63		4.5
	80		4.6
	100		6
	125	500	10.1
	160	500	15.2

Type	Fuse Link				Fuse Base
	Rated Current (A)	Rated Voltage (V)	Rated Power Loss (W)	Weight	Type	Rated Current (A)	Weight
NT1	80	500, 600	6.2	0.36	Sist 201	250	0.8
	100		7.5
	125		10.2
	160		13
	200		15.2
	224		16.8
	250		18.3

Type	Fuse Link				Fuse Base
Type	Rated Current (A)	Rated Voltage (V)	Rated Power Loss (W)	Weight	Type	Rated Current (A)	Weight
NT2	125	500, 600	9	0.65	Sist 401	400	1.2
	160		11.5
	200		15
	224		16.6
	250		18.4
	300		21
	315		19.2
	355		24.5
	400		26

Type	Fuse Link				Fuse Base
	Rated Current (A)	Rated Voltage (V)	Rated Power Loss (W)	Weight	Type	Rated Current (A)	Weight
NT3	315	500, 600	21.7	0.85	Sist 601	630	1.5
	355		22.7
	400		26.8
	425		28.9
	500	500	32
	630		40.3

Type	Fuse Link				Fuse Base
	Rated Current (A)	Rated Voltage (V)	Rated Power Loss (W)	Weight	Type	Rated Current (A)	Weight
NT4	800	380	62	1.95	Sist 1001	1000	3.45
	1000		75
