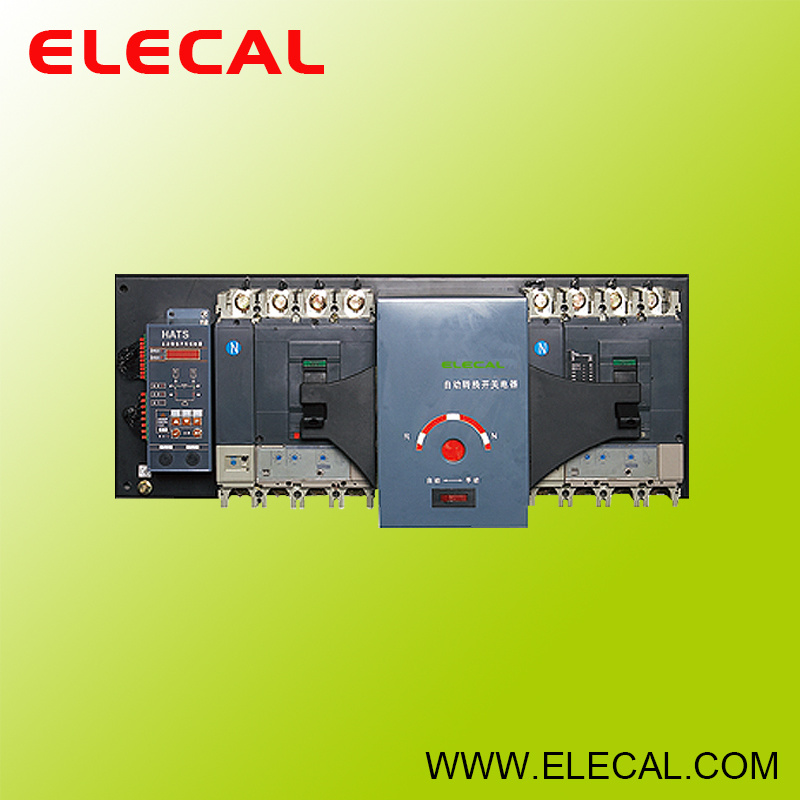

Hats Dual Power Automatic Transfer Switch

Prod Model:	Hats Dual Power Automatic Transfer Switch
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

1.Application

HATS series automatic transfer switch is one new ATS of our company developed by themicrocomputer control technology . This series ATS is settled AM2 circuit breaker as the execu-tive element, and along with the mechanotrons, the new control mechanism with electrome-chanical double interlock, which is especially applied in the important places not allowed poweroff. To meet actual demand, three different operation methods are available such as automaticentry automatic reset, automatic entry non automatic reset and commutative standby. The device conforms to IEC60947-6-1.The whole series have past CCC certification.

2.Environment conditions for operation

Temperature condition: -5~+55;relative humidity<95% at 55.
Elevation: altitude of installation place shall not exceed 2000m.
Pollution grade: grade III.

3.Main features

Three available operation methods
1.Automatically entry and automatically reset.
2.Automatically entry and non automatically reset
3. Commutative standby
Three steady operating positions
1.The grid power supply is making, the standby power supply is breaking.
2.The grid power supply is breaking, the standby power supply is making.
3.The grid power supply is breaking, the standby power supply is breaking.
Compact size, single structure, beautiful outlook , 12.5~630A available, convenient operation and long operating life,3P,4P can be supplied.
The transfer is drived by single motor, single structure, reliable transfer, no noise and small wallop.
The device is with electromechanical interlock protection, which can ensure the two power supplies working normally, no disturbance.
The device can be along with load automatic transfer , on urgent situation, it can be transferred by handle.
Advantages comparative to other products:
1.The breaking capacity of the control protecting fuse is 50kA, which increases the distribution safety.
2.There is interlock between manual and automatic operation, this can avoid the manual operation on the automatic operation.
3. When the executive handle of circuit breaker is broken, the contact is felted or the load is in problem(overload, short circuit), the ATS do not transfer, the is called the real electromechanical interlock.
4.The wrong wire connection indication can be supplied. When the phase wire and zero wire is connected wrong, the sound-photo device will alarm, it ensures the reliability.

3.Function of controller in HATS automatic transfer switch


Contrller	Type A (built-in)	Type B (panel)
Operational voltage	AC230V	AC230V
Frequency	50/60Hz	50/60Hz
Three operational positions
Common power supply making
Standby power supply making
Both common power supply and standby power supply breaking
Automatic operation
Manual remote control
Handle operation
Automatic operation
To monitor common power supply and automatic transfer	Check phase lacking, voltage losing	Check phase lacking,undervoltage, overvoltage and voltage losing
To monitor standby power supply and automatic transfer		Check phase lacking,undervoltage, overvoltage and voltage losing
To control generator
Fire fighting linkage
Automatic entry automatic reset
Automatic entry non automatic reset
Commutative standby
Manually remote control
Compel it to work at common power supply
Compel it to work at standby power supply
Compel it to word at "0"prosition
Test
By test pushbutton on panel or control pushbutton
Indications
Operation status indication: making or breaking
Common power supply indication and standby power supply indication
Malfunction tripping indication
Parameters setting indication
Other functions
Transfer time delay	0s,5s,15s,30s inaccuracy ≤ 5%	0-255s
Recovery time delay	0s,5s,15s,30s inaccuracy ≤ 5%	0-255s
Protective function when neutral line is wrong connection (sound and light alarm)
Overtime malfunction-breaking function after transfer signal sent out
Standard configuration     Selective function

Note:
1.If operational voltage is the same as power voltage, the common power supply and standby power supply can supply power directly. If not ,it must use equivalent isolation transformer.

2.Under the situation of handle operation, if the control of electrical manipulating device is open, automatic controlling function will be invalid.

3.On conditions both common power supply and standby power supply are normal, if common power supply is malfunction and automatically transfer to standby power supply (transfer time delay adjustable), when the common power supply
returns to normal, it will automatically return(return time delay adjustable).

4. Under the situation both common power supply and standby power supply are normal and common power supply is working, if common power supply is malfunction and automatically transfer to standby power supply. Controller will stop transferring. Even if common power supply return to normal, switch will not return. Please press reset pushbutton, controller returns to normal.

5.Under the situation both common power supply and standby power supply are normal, to get through electricity(or reset), the common power supply will work prior. If the working power has some malfunction during operation and automatically transfer to another power supply(type B switching transfer time delay adjustable), both power supply will have the same priority and will be standby power supply of each other.
