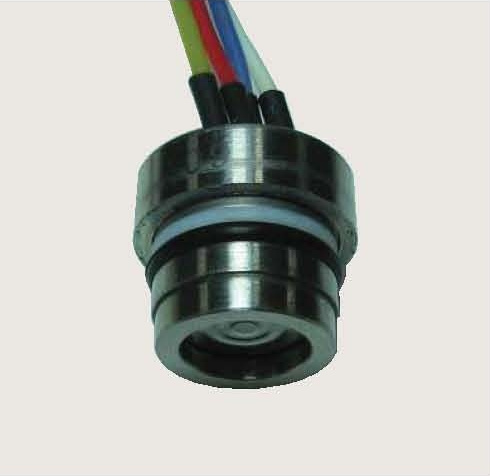

HBC13 Pressure Sensor (diameter 13mm)
| Price: |
US $ 15-18/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HB-C13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
13mm |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Silicon Diffusion |
| Material: |
Mixture |
Product Description
High precision pressure transducer for industrial applications
Measuring ranges from 2.5MPa - 60Mpa
Piezoresistive diffusion silicon pressure sensor
Excellent accuracy and long term stability
316L package assemble conveniently
The transducer can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system design.
| Performance Specification | |
| Technology | Piezoresistive Diffusion Silicon Pressure Sensor |
| Nominal range | 2.5Mpa, 4MPa, 6MPa, 10MPa, 25Mpa, 40Mpa, 60Mpa |
| Pressure reference | Sealed guage, Absolute |
| Overload | 1.5~2 times nominal scale |
| Zero offset | ±2mV |
| Full scale output | >70mV(typical) |
| Accuracy | ±0.25%F.S ±0.5%F.S |
| Long term stability | ±0.2%F.S/year |
| | |
| Electrical Specifications | |
| Excitation | 1mADC (5VDC and 10VDC available) |
| Insulation resistance | >100MΩ(250VDC) |
| Bridge resistance | 3kΩ~6kΩ |

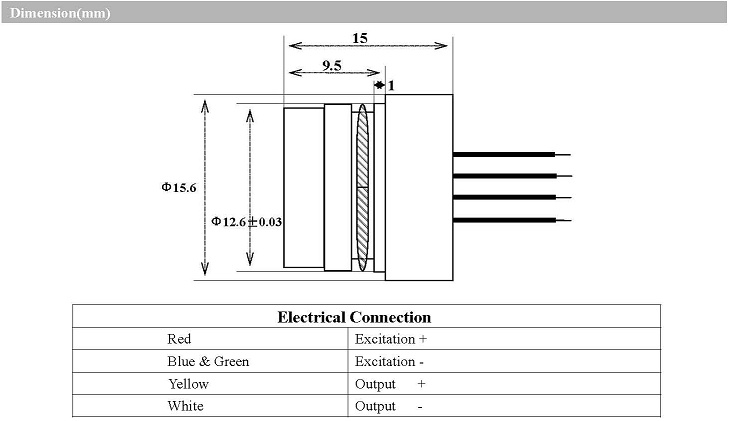

| Electrical connection | 4 wires (5 wires available) |
| | |
| Environmental | |
| Operating temperature range | -45~125ºC |
| Compensated temperature range | -10~70ºC |
| Thermal sensitivity coefficient | ≤±0.02%F.S/ºC |
| Thermal zero coefficient | ≤±0.02%F.S/ºC |
| Physical Specification | |
| Process connection | OD16mm "O" Ring |
| Process media | Gas and liquid |
| Materials wetted by process | Stainless 316L standard |
| | Optional: Tantalum, Hastelloy C276, Monel |
| Fill fluid | Silicon oil or olive oil(sanitary centrifugal) |
| Weight | About 25g |
Shenyang Academy of Instrumentation Science Co., Ltd. Was derectly belonging to Ministry of Machinery Industry as a large comprehensive scientific research academyt, now is subject to China National Machinery Industry Corporation (SINOMACH). Name listed in national comprehensive technology ability 100 research academies & institutes, AAA class credit enterprise in Liaoning province. One of the national high-tech enterprises, focus on sensor and instrument' S research, develop and manufacture.
After 40 years' Development, we have accomplished 626 scientific research items and 159 awards in state, province, ministry and city, of which there are 20 National Invention Awards and Science and Technology Progress Awards, 56 various awards in province and ministry and 80 patents and know-hows.
The main products are including:
- Pressure sensor die/wafer
- Pressure sensor & transmitter
- Dew-point transmitter
- Wafer dicing machine
- Metal bellows(Hydroformed & Electroformed)
- Optical filter & optical reflector
- Current sensor & gauss meter
We are the only manufacturer for silicon piezoresistive pressure wafer/die, and the only national research center in China.
We are the only manufacturer for electroformed metal bellows in China.
We are the largest manufacture for optical filter in China
We has passed the GB/T19001-2000. Elastic components and transducers has passed GJB9001A-2001.
We gain class AAA in both enterprise credit and banking credit.
SAIS has established a nationwide marketing network, and the products are widely employed in such military and civil industries as spaceflight, aviation, navigation, petrochemistry, Metallurgy, Heat Supply, Thermoelectricity, Hydroelectricity, Coal, Light Industry, Architecture and Pharmacy. Some of the products are exported to overseas market.
We would like to creat HB name brand, collect time elite, introduce others' Merits. It is our responsibilities to constantly increase more advanced techniques to HB products. We also strictly abide by the marketing ideology of faithfulness, carry through quality policy, innovating in products by science and technology, guarantee quality by strict administration, reduce cost by elaborated accounting, reassure clients by gualified services. We seriously complete the sales management mode of Whole Course Credit Administration, repay our clients with profound enterprise cultures, outstanding management, strong core competition abilities and qualified credit.
