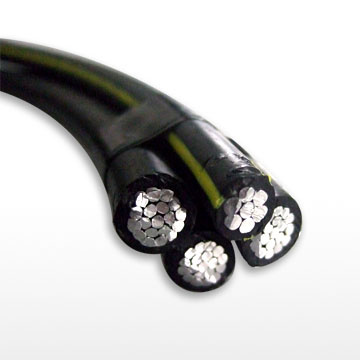

High Quality ABC Duplex Service Drop Wire
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Duplex Service Drop Wire |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Aluminum |
| Jacket: |
None |
| Armor: |
None |
| Voltage Rating: |
0.6/1kv,10kv |
| No.of Cores: |
1-4 Cores |
| Applicable Standard: |
ASTM, BS, CSA, DIN |
| Models Applicable: |
Duplex/Triplex,Quadruplex Servoce Drop Conductor |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
PVC |
| Certification: |
SABS |
| Brand: |
Henan Jiapu |
Product Description
Duplex Service Drop AAC-Aluminum Conductor(ABC Cable)
-Applications:
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75° C maximum.
-Construction:
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
-Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
ASTM B230, B231, B232 and B-399 ,B498,ICEA S-76-474
Code Name |
Phase Conductor |
Bare Neutral |
Approx.Weight |
Code Name |
Phase Conductor |
Bare Neutral |
Approx.Weight |
Size |
Stranding |
Insulation Thickness |
Size
|
Stranding |
XLPE |
PE |
Size |
Stranding |
Insulation Thickness |
Size |
Stranding |
XLPE |
PE |
AWG |
- |
mil |
AWG |
- |
lbs/1000ft |
AWG |
- |
mil |
AWG |
- |
lbs/1000ft |
AAC Neutral Messenger |
ACSR Neutral Messenger |
|
Pekingese |
6 |
Solid |
45 |
6 |
7/w |
63.5 |
61.7 |
Setter |
6 |
Solid |
45 |
6 |
6/1 |
75.0 |
73.2 |
Collie |
6 |
7/w |
45 |
6 |
7/w |
66.8 |
63.1 |
Shepherd |
6 |
7/w |
45 |
6 |
6/1 |
78.3 |
74.6 |
Dachshund |
4 |
Solid |
45 |
4 |
7/w |
95.5 |
93.4 |
Eskimo |
4 |
Solid |
45 |
4 |
6/1 |
113.7 |
111.6 |
Spaniel |
4 |
7/w |
45 |
4 |
7/w |
100.5 |
95.4 |
Terrier |
4 |
7/w |
45 |
4 |
6/1 |
118.7 |
113.6 |
Doberman |
2 |
7/w |
45 |
2 |
7/w |
152.7 |
145.7 |
Chow |
2 |
7/w |
45 |
2 |
6/1 |
181.7 |
174.7 |
Malemute |
1/0 |
19/w |
60 |
1/0 |
7/w |
242.6 |
234.2 |
Bull |
1/0 |
19/w |
60 |
1/0 |
6/1 |
288.7 |
280.3 |
6201 Alloy Neutral Messenger |
Chihuahua |
6 |
Solid |
45 |
6 |
7/w |
67.6 |
65.8 |
Whippet |
4 |
7/w |
45 |
4 |
7/w |
107.0 |
101.9 |
Vizsla |
6 |
7/w |
45 |
6 |
7/w |
70.9 |
67.2 |
Schnauzer |
2 |
7/w |
45 |
2 |
7/w |
163.3 |
156.2 |
Harrier |
4 |
Solid |
45 |
4 |
7/w |
102.0 |
99.9 |
Heeler |
1/0 |
19/w |
60 |
1/0 |
7/w |
259.2 |
250.8 |
Note:
(1)Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.
(2)Conductor temperature of 90°C for XLPE, 75°C for PE; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun.
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
