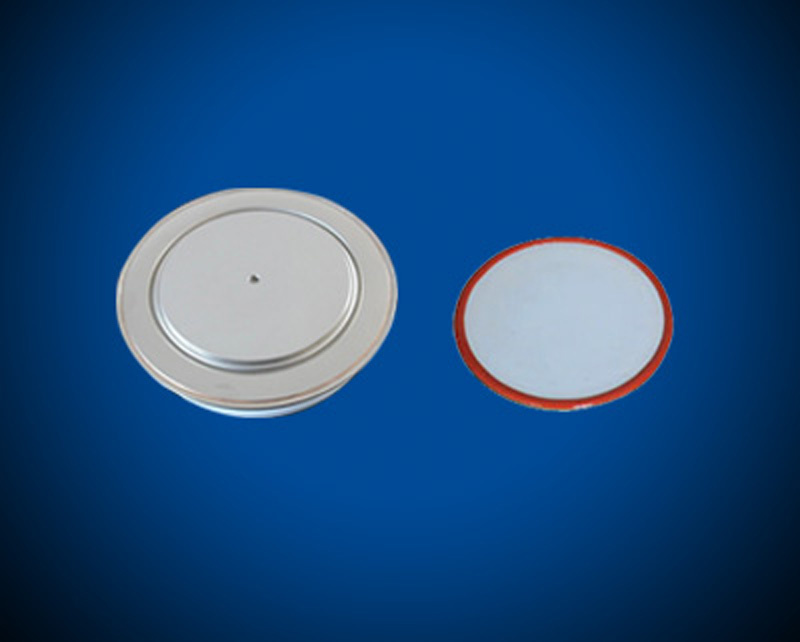

High Quality Fast Diode Thyristor (ZK Series)

Name: High Quality Fast Diode Thyristor (ZK Series)
Brand: all-electronics-online.com
SKU: 706806542
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZK Series

Product Description

Name: Fast Diode
Application: High-frequency rectifier circuit, freewheeling diodes, the inverter
ZK Series

Type	VRRM	IF(AV)	IFSM@ TVJM&10ms	IRRM(max)& Tj=125ºC	VFM(max)&Tj=25ºC		Trr(max)	Tvj	Rthjc	F±10%	Outline
Type	V	A	KA	mA	IFM(A)	V	μs	ºC	K/W	KN	Outline
ZK300	1000-1800	300	4.5	15	900	2.3	4	125	0.11	5	1D
ZK200	2000-3000	200	3	15	600	2.4	6	125	0.11	5	1D
ZK400	1000-1800	400	6	20	1200	2.3	4	125	0.06	10	2D
ZK300	2000-3000	300	4.8	20	900	2.4	6	125	0.06	10	2D
ZK500	1000-1800	500	7.5	30	1500	2.3	5	125	0.05	13	2DA
ZK400	2000-3000	400	6.4	30	1200	2.4	8	125	0.05	13	2DA
ZK800	1000-1800	600	9.6	35	1800	2.3	5	125	0.04	15	3D
ZK500	2000-3000	500	9	35	1500	2.6	8	125	0.04	15	3D
ZK1200	1000-1800	1200	18	50	3000	2.2	6	125	0.02	25	4D
ZK1000	2000-3000	1000	15	50	3000	2.6	8	125	0.02	25	4D
ZK2000	1000-1800	2000	28	60	3000	2.0	6	125	0.016	30	5D/5DA
ZK1500	2000-3000	1500	22.5	60	3000	2.0	8	125	0.016	30	5D/5DA
ZK3000	1000-1800	3000	45	80	3000	2.0	6	125	0.01	36	6D/6DA
ZK2500	2000-3000	2500	38	80	3000	2.2	8	125	0.01	36	6D/6DA

YA Series

Type	IF(AV)	VRRM	IFSM@ TVJM&10ms	IRRM(max)& Tj=125ºC	VFM(max)&Tj=25ºC		Trr(max)	Tvj	Rthjc	F±10%	Outline
Type	A	V	KA	mA	IFM(A)	v	μs	ºC	k/w	kn	Outline
YA796	925	1500-2500	13.8	75	1000	1.75	3.5	125	0.05	25	4D
YA696	1000	2000-2600	14	100	1000	1.9	5.0	150	0.04	15	3D
