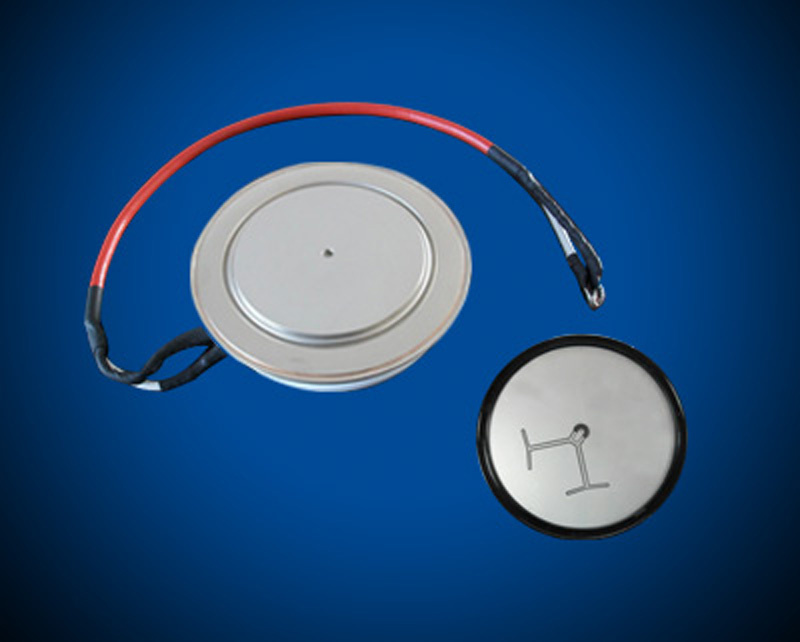

High Quality Fast Thyristor (KK Series)

Name: High Quality Fast Thyristor (KK Series)
Brand: all-electronics-online.com
SKU: 706806822
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KK Series

Product Description

Name: Fast Thyristor
Application: inverters, choppers, Induction heating, various types of forced inv
KK Series

Type	VDRM/VRRM	IT(AV)	IT(AV) ITSM @TVJM&10ms	IDRM/IRRM(max)Tj=125ºC	VTM(max)@Tj=25ºC		Tq(max)	Tvj	Rthjc	F±10%	Outline
	VDRM/VRRM	IT(AV)	IT(AV) ITSM @TVJM&10ms	IDRM/IRRM(max)Tj=125ºC	ITM	VTM	Tq(max)	Tvj	Rthjc	F±10%
	V	A	KA	mA	A	V	μs	ºC	K/W	KN
KK200	1200-2000	200	3.0	30	600	2.9	35	125	0.06	10	KT30
KK500	1200-2000	500	7.5	50	1500	2.9	40	125	0.04	15	KT40
KK1000	1200-2000	1000	14	60	3000	2.9	40	125	0.02	25	KT55
KK1200	1200-2000	1200	14	60	3000	2.9	40	125	0.019	28	KT60
KK1500	2200-2500	1500	23	80	3000	3.0	60	125	0.018	30	KT70
KK1800	1200-2000	1800	27	80	3000	2.6	50	125	0.018	30	KT70
KK2500	2200-3000	2500	38	100	3000	2.5	80	125	0.01	36	KT80
KK3000	1800-2500	3000	42	100	4000	2.9	80	125	0.008	36	KT90
KK4000	1800-2500	3000	56	100	5000	2.9	80	125	0.006	36	KT110

YC Series

Type	IT(AV)	VDRM/VRRM	IT(AV) ITSM @TVJM&10ms	IDRM/IRRM(max)Tj=125ºC	VTM(max)		Tq(max)	Tvj	Rthjc	F±10%	Outline
					ITM	VTM
	A	V	KA	mA	A	V	μs	ºC	K/W	KN
YC476	200	600-1400	5.5	35	1200	2.5	20	125	0.06	10	KT30

Our company is a professional supplier for Ferrite core, bobbin and remote control.

We have more than ten years experience for export electronics component. There are reliable professional suppliers team for integrated circuits (IC), transistor, relay, current transformer and other electronic parties.

Choose us to make you grow faster.
