High Qualtiy FTTH 1X2 Fiber Optic PLC Splitter

Name: High Qualtiy FTTH 1X2 Fiber Optic PLC Splitter
Brand: all-electronics-online.com
SKU: 694848312
Availability: InStock
Rating: 4.8 (102 reviews)

Price:	US $ 3.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLC Splitter
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	PLC Splitter
Operate Wavelength:	1310/1550, or Customized
Max.Excess Loss(dB):	0.2
Typ.Insertion Loss(dB):	6.2
Uniformity(dB):	1.2
Directivity(dB):	60
Operate:	20~+70
Lead Type(mm):	0.25mm,0.9mm,2.0mm,3.0mm
Lead Length(M):	1.5 or Customized
Connnector:	Sc APC
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

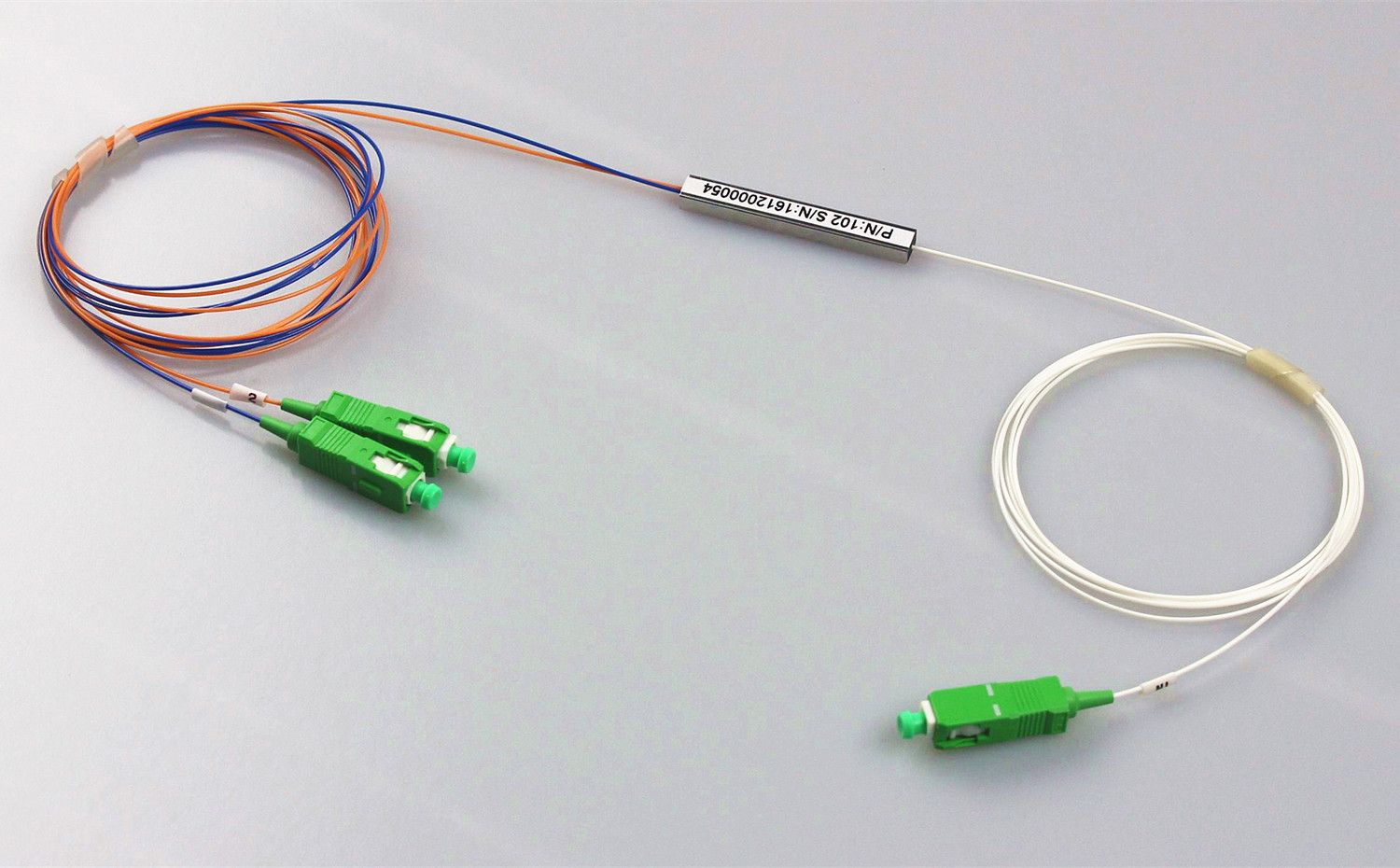

High Qualtiy FTTH 1X2 fiber optic PLC Splitter

Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.

Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available

Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting

Parameter	Configuration
Parameter			N x 4 (N=1,2,4)	N x 8 (N=1,2,8)	N x 16 (N=1,2,16)	N x 32 (N=1,2,32)
Operate Wavelength(nm)	1310/1550, or customized
Bandwidth(nm)	±20
Max.Excess Loss(dB)	0.2	0.3	0.4	0.5
Typ.Insertion Loss(dB)	6.2	9.3	12.4	15.5
Max.Insertion Loss(dB)	6.8	10.2	13.6	17
Uniformity(dB)	1.2	1.8	2.4	3
PDL(dB)	0.08	0.12	0.16	0.2
Thermal Stability(dB)	0.2	0.3	0.4	0.5
Directivity(dB)	≥60
Operate Temperature(ºC)	-20~+70
Lead Length(m)	1 or customized
Lead Type(mm)	φ3.0, φ2.0, φ0.9
Package Dimension (mm, LWH)	A:φ3.0,L=50	B:89198	C:99799	D:14011418

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

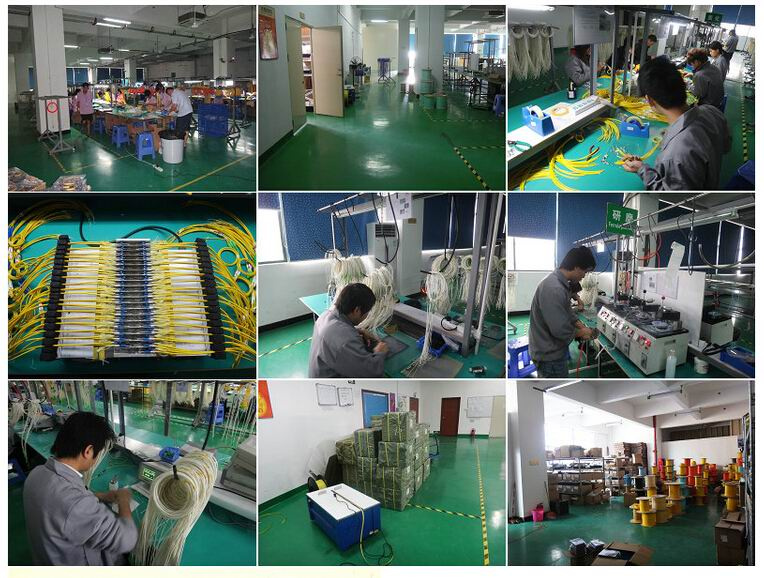

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
