Ht Protective Sleeving

Name: Ht Protective Sleeving
Brand: all-electronics-online.com
SKU: 783524375
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 1.02/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT1022
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Features & Benefits:	up to +1100oc (15 Min) and +800oc (30 Min).
Specifications & Approvals:	Pecifications Approvals SAE Aerospace as 1072
Colour:	Brick Red
Application:	Steel Factory
Type:	Insulation Sleeve
Chemistry:	Inorganic Insulation
Material:	Rubber
Thermal Rating:	250 250
Maximum Voltage:	10KV~20KV

Product Description

Thermal Management

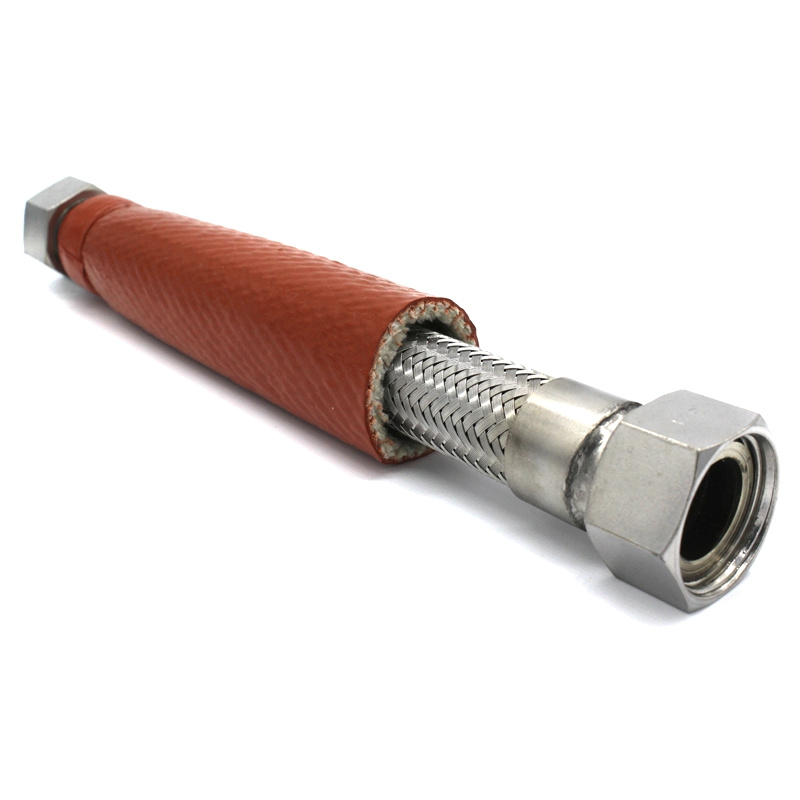

Thermo tube Aerospace sleeving is a thickwall

braided fibreglass inner lining, coated with a specially

compounded, flame retardant silicone rubber. This

product can be easily installed on cables and hoses

and expands to pass over fittings and couplings.

The aerospace grade offers an effective protection

against sustained high temperatures, flames and

molten metal splashes that can seriously damage

electrical cables and hydraulic, gas and lubricant

supply lines

The construction of Thermotube Aerospace

ensures an excellent fire protection for tubing up to

+1100ºC peak temperature according to SAE-ASTM

specifications.

This product provides thermal protection against

internal and external hazards in a variety of industries,

including aerospace, marine, iron and steel, plus

automotive.

Features & Benefits

？ Fire protection up to +1100ºC (15 min) and

+800ºC (30 min).

？ Flexibility to -54ºC

？ Resistant to hydraulic fluids and lubricating oils.

Operating Temperature

？ From -54ºC to +260ºC

Notes

Also available with an indelible ink marking, for more

information please contact us.

For further information on this or other products

in our range, or for assistance with your specific

requirements, please contact us.

All numeric data shows average or typical values.

Thermo tube

There is also a coated fibreglass tape, called

Thermobande® available. This is often used for

fire protection of tubing after the fitting of end

terminations.

Available in six different sizes ranging from 25mm to

152mm wide, to accommodate most situations.

Please contact us for more information.
