Hybrid Stepper Motor with Good Quality

Hybrid Stepper Motor with Good Quality
Price: US $ 7.41-9.06/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: H201
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 20mm
Step Angle: 1.8
Length: 28mm,34mm,40mm
Rated Current: 0.2-0.6A
Phase Resistance: 3.2-32ohm
Phase Inductance: 0.9-8.8mh
Holding Torque: 1.4-2.6n.Cm
Detent Torque: 0.2-0.5n.Cm
Lead Wire No.: 4
Weight: 50-82g
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Magnetic-Electric
Application: Projector,Monitor
Function: Stepper Motor
Operate Mode: Hybrid Stepper Motor
Certification: CE RoHS
Brand: I.CH

Product Description

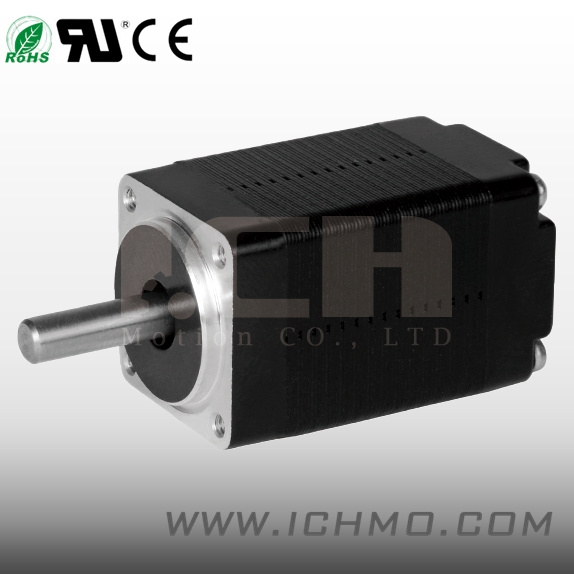

I. CH MOTOR - Hybrid Stepper Motor H201(20MM) - Nema 8

Specifications:
-Step Angle: 1.8°
-Length: 28mm, 34mm, 40mm
-Rated Current: 0.2-0.6A
-Phase Resistance: 3.2-32ohm
-Phase Inductance: 0.9-8.8mH
-Holding Torque: 1.4-2.6N. Cm
-Detent Torque: 0.2-0.5N. Cm
-Lead Wire No.: 4
-Weight: 50-82g

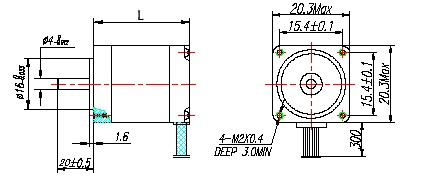

Drawing:



                                                                        Electrical Specification
Series ModelStep Angle ( o )L
(mm)
Rated Current (A)Phase
Resistance
( Ω )
Phase
Inductance (mH)
Holding Torque
(N.cm)
Detent Torque (N.cm)Lead
Wire
(NO.)
Motor
Weight
( g)
H201-001021.8280.2238.21.40.2450
H201-001061.8280.63.20.91.40.2450
H201-002021.8340.2258.41.80.3470
H201-002061.8340.64.51.21.80.3470
H201-003021.8400.2328.82.60.5482
H201-003061.8400.65.81.62.60.5482
I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
