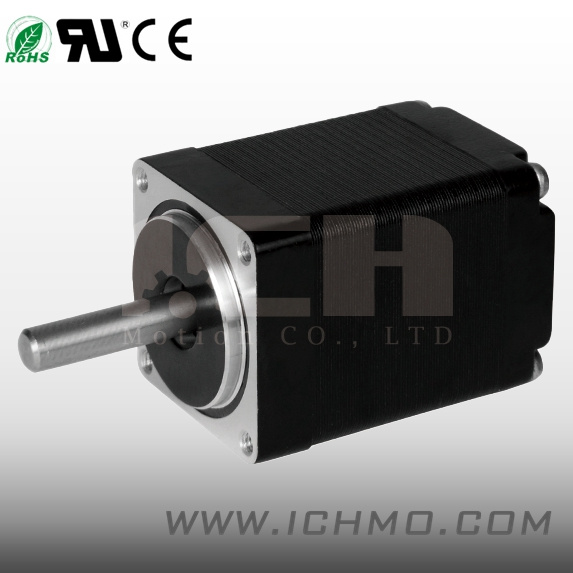

Hybrid Stepper Motor with Step Angle 1.8 Degree H281

Name: Hybrid Stepper Motor with Step Angle 1.8 Degree H281
Brand: all-electronics-online.com
SKU: 764186315
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 6.59-9.88/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H281
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	28mm
Motor Length:	28-50mm
Rated Current:	0.35-0.6A
Phase Resistance:	4.2-24ohm
Holding Torque:	4.5-10n.Cm
Leadwire No.:	4
Motor Weight:	105-180g

Product Description

I. CH MOTOR - Hybrid Stepping Motor H281(28MM) - NEMA 11

Specifications:
- Motor Length: 28~50MM
- Rated Current: 0.35~0.6A
- Phase Resistance: 4.2~24Ohm
- Holding Torque (N. Cm): 4.5~10N. Cm
- Lead Wire (No. ): 4
- Motor Weight: 105~180g

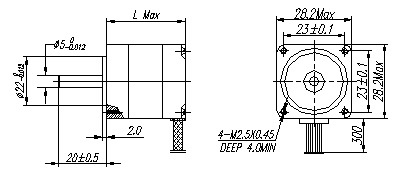

Drawing:

Electrical Specification
Series Model	Step Angle ( o )	L (mm)	Rated Current (A)	Phase Resistance ( Ω )	Phase Inductance (mH)	Holding Torque (N.cm)	Detent Torque (N.cm)	Lead Wire (NO.)	Motor Weight ( g)
H281-00506	1.8	28	0.6	4.2	2.2	4.5	0.3	4	105
H281-00504	1.8	28	0.35	12	5.8	4.5	0.3	4	105
H281-00606A	1.8	33	0.6	5.5	3.2	6.0	0.4	4	110
H281-00604A	1.8	33	0.35	15	9.2	6.0	0.4	4	110
H281-00606B	1.8	41	0.6	7.0	6.0	6.0	0.5	4	140
H281-00604B	1.8	41	0.35	20	15	6.0	0.5	4	140
H281-01006	1.8	50	0.6	9.0	7.2	10	0.8	4	180
H281-01004	1.8	50	0.35	24	18.5	10	0.8	4	180

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
