Hyperplane Ring Illuminated Screw Terminal Push Button Switch

Name: Hyperplane Ring Illuminated Screw Terminal Push Button Switch
Brand: all-electronics-online.com
SKU: 791491075
Availability: InStock
Rating: 5 (37 reviews)

Price:	US $ 3.29-5.83/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBS1GQPF-11E
Mounting Hole Size:	19mm
Switch Rating:	5A/250VAC
Contact Configuration:	1no1nc
Operation Type:	Momentary Latching
Terminal Type:	Screw Terminal
The Front Shape:	Hyperplane
Crust Material:	Nickel-Plated Brass and Stainless Steel
Protection Degree:	IP65 Ik09
Mechanical Life:	1000000
Electrical Life:	50000
Type:	Normal Open
Usage:	Start Button
Kind:	Double Throw Switch
Contact Type:	Type X Contact
Brand:	Hban
Certification:	RoHS TUV

Product Description

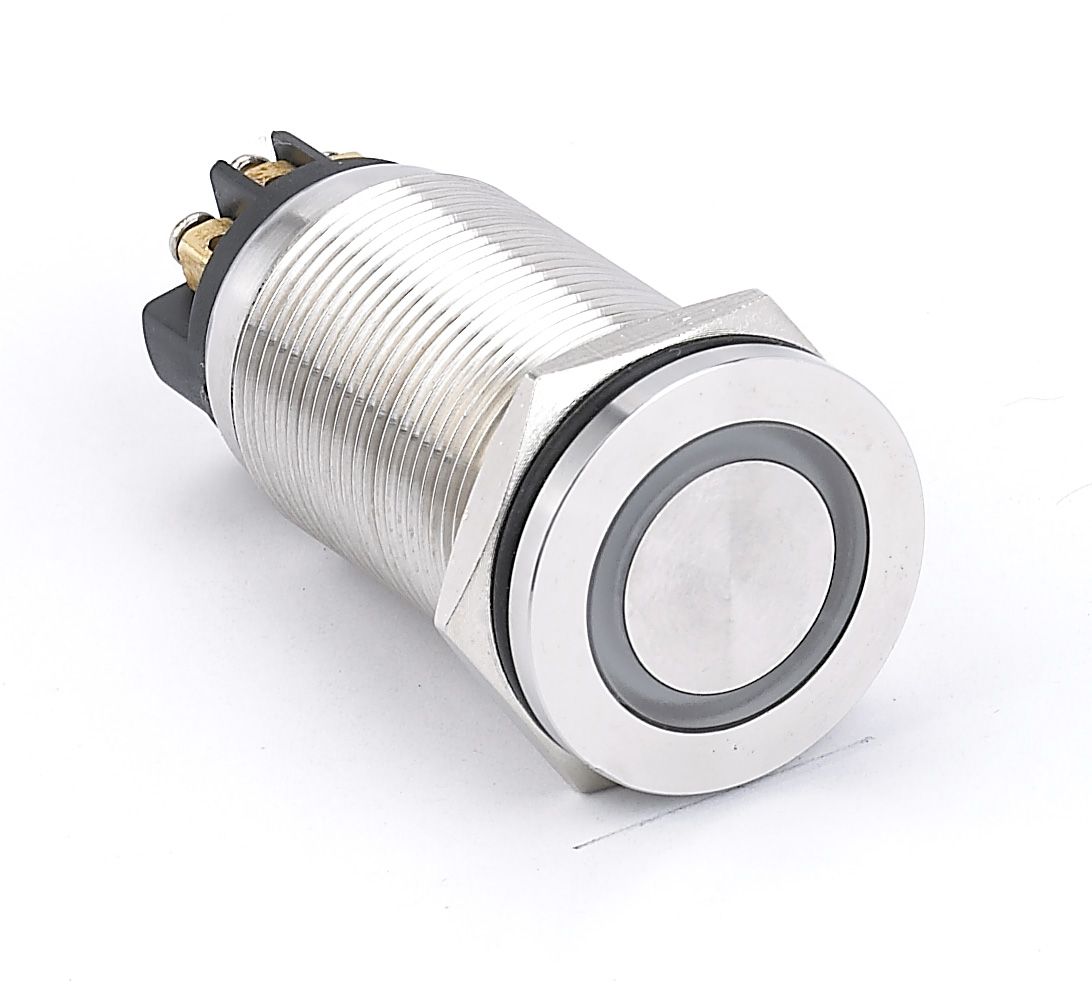

Hyperplane ring illuminated screw terminal push button switch

1.Specification
Mounting hole size:19mm
Switch Rating:5A/250VAC
Contact confirguration:1NO21NC
Operation Type:Momentary Latching
The front shape:Hyperplane
The crust material:Stainless steel/Nickel-plated Brass

Specification	HBS1GQ-11EL
The Front Shape	Flat Round
Terminal Type	Pin Terminal
Switch Type	Za
Switch Specification	5A/250VAC
Contact Resistance	<50mΩ
Insulation resistance	>1000mΩ
Dielectric Strength	2000VAC
Operation Temperature	-20ºC~ 55ºC
Mechanical Life	>1,000,000 times
Elecrical Life	>50,000times
Panel Thickness	1~10mm
Torque	5-14Nm
Operation Pressure	about 4N
Operation Stroke	about 2.5mm
Protection Degree	IP65 IK09
Material
Contact	Silver Alloy
Button	Stainless steel Mirror Surfact CD Pattern
Case	Stainless steel or Nickel-plated Brass
Base	PBT
Material
Contact	Silver Alloy
Button	Stainless steel Mirror Surfact CD Pattern
Case	Stainless steel or Nickel-plated Brass
Base	PBT
Lamp Parameters
Type	Ring-Illumination
Rated Voltage	2V/6V/12V/24V/36V/110V/220v
Color
Life	50000 Hours

2.Package:

ITEM	PC/BOX	BOX/CTN	PCS/CTN	CBM
HBS1GQ	40	25	1000	435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP67 IK10

Would you need LED lamp? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
