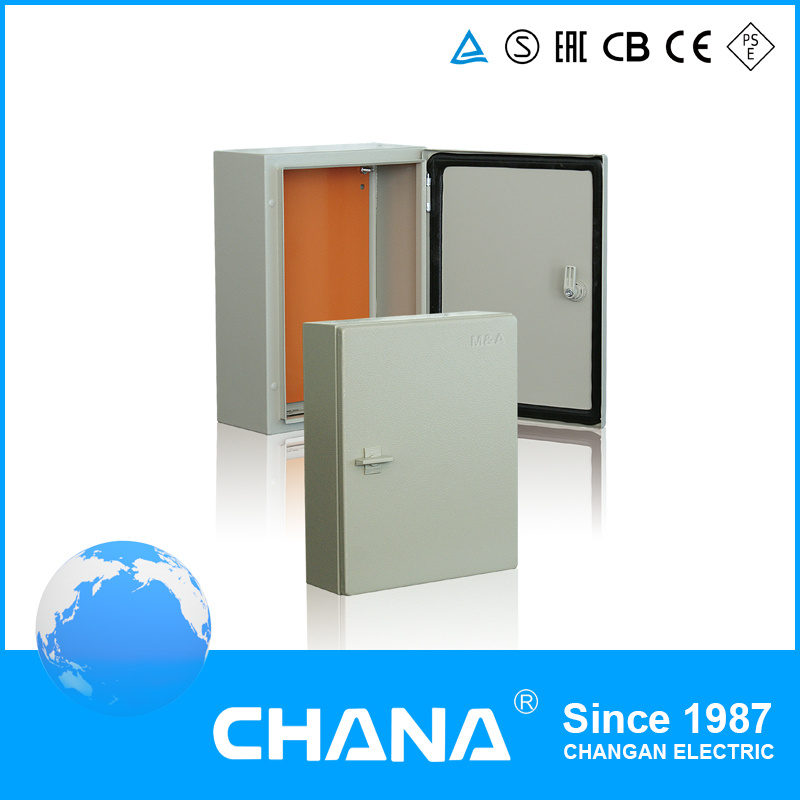

Ik10 Metal Enclosure Steel Distribution Box with IP66

Name: Ik10 Metal Enclosure Steel Distribution Box with IP66
Brand: all-electronics-online.com
SKU: 798004605
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	US $ 7.86-8.71/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CABS
Impact Performance:	Ik10
Standard:	IEC60529
Type:	Distribution Metering Box
Structure:	Protection
Certification:	Ce
Size:	4-22 Ways
Shell Protection Grade:	IP66
Brand:	Chana

Product Description

CABS Series Steel Distribution Box

1. Description

Protection degree: IP66
Standard: IEC60529
Color: RAL7032, RAL7035
Impact performance: IK10

2. Specification

Model	Dimension (mm)			Thickness (mm)			Bottom hole size	Lock QTY	Mounting plate size
Model	L	W	D	Door	Body	M.P	Bottom hole size	Lock QTY	L	M
CABS 2020/15	200	200	150	1.2	1.2	2	A	1	150	150
CABS 2520/15	250	200	150	1.2	1.2	2	A	1	200	150
CABS 3020/15	300	200	150	1.2	1.2	2	A	1	250	150
CABS 3020/20	300	200	200	1.2	1.2	2	A	1	250	150
CABS 3025/15	300	250	150	1.2	1.2	2	A	1	250	200
CABS 3025/20	300	250	200	1.2	1.2	2	A	1	250	200
CABS 3030/15	300	300	150	1.2	1.2	2	B	1	250	250
CABS 3030/20	300	300	200	1.2	1.2	2	B	1	250	250
CABS 3030/25	300	300	250	1.2	1.2	2	B	1	250	250
CABS 4030/15	400	300	150	1.2	1.2	2	B	1	350	250
CABS 4030/20	400	300	200	1.2	1.2	2	B	1	350	250
CABS 4030/25	400	300	250	1.2	1.2	2	B	1	350	250
CABS 4030/30	400	300	300	1.2	1.2	2	B	1	350	250
CABS 4040/15	400	400	150	1.2	1.2	2	C	1	350	250
CABS 4040/20	400	400	200	1.2	1.2	2	C	1	350	350
CABS 4040/25	400	400	250	1.2	1.2	2	C	1	350	350
CABS 4040/30	400	400	300	1.2	1.2	2	C	1	350	350
CABS 5030/15	500	300	150	1.2	1.2	2	B	1	450	350
CABS 5030/20	500	300	200	1.2	1.2	2	B	1	450	250
CABS 5030/25	500	300	250	1.2	1.2	2	B	1	450	250
CABS 5040/15	500	400	150	1.2	1.2	2	C	1	450	350
CABS 5040/20	500	400	200	1.2	1.2	2	C	1	450	350
CABS 5040/25	500	400	250	1.2	1.2	2	C	1	450	350
CABS 5040/30	500	400	300	1.2	1.2	2	C	1	450	350
CABS 5050/20	500	500	200	1.2	1.2	2	D	1	450	450
CABS 5050/25	500	500	250	1.2	1.2	2	D	1	450	450
CABS 5050/30	500	500	300	1.2	1.2	2	D	1	450	450
CABS 6040/15	600	400	150	1.2	1.2	2	C	1	550	350
CABS 6040/20	600	400	200	1.2	1.2	2	C	1	550	350
CABS 6040/25	600	400	250	1.2	1.2	2	C	1	550	350
CABS 6040/30	600	400	300	1.2	1.2	2	C	1	550	350
CABS 6050/15	600	500	150	1.2	1.2	2	D	1	550	450
CABS 6050/20	600	500	200	1.2	1.2	2	D	1	550	450
CABS 6050/25	600	500	250	1.2	1.2	2	D	1	550	450
CABS 6050/30	600	500	300	1.2	1.2	2	D	1	550	450
CABS 6050/15	600	600	150	1.2	1.2	2	D	1	550	550

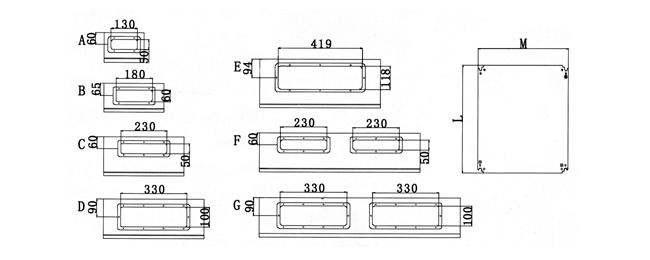

3. Overall and Installation Dimension

4. Certificate

5. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
