| Prod Model: |
Multi Purpose Break-out Cable |
| Operating Temperature: |
-40 C ~ +70 C |
| Central Member: |
Mentallic Strength Member |
| Armor: |
Steel Armoring |
| Application: |
Sensor |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
Product Description
Multi Purpose Break-out Cables
Description:
This specification covers a series of cables with 2 to 12 fibers. The cable fulfils the fire performance test of IEC332-1 and IEC332-3C.
Application:Backbone in LAN'sIndoor/ outdoor in ductsInternal wiring/ Fan-outs

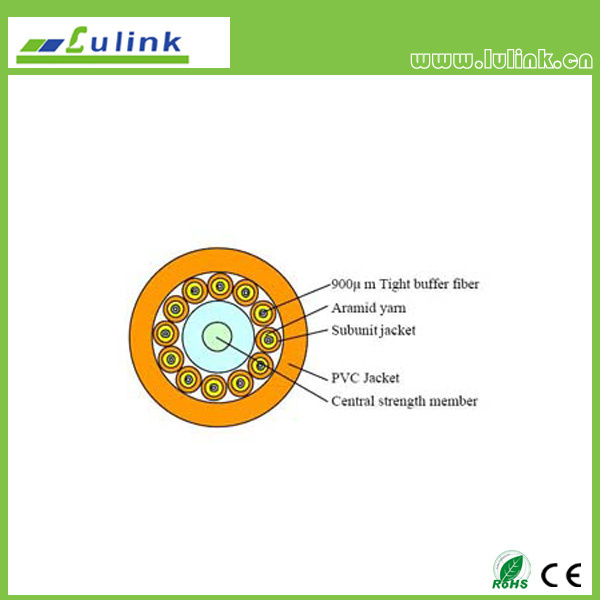

Construction Data:
| Tight buffer fiber diameter | 900+/-50um |
| Core reinforce | Aramid yarn |
| Break-out unit jacket material | PVC |
| Break-out color code | The units have sequential numbering printed on the surface for identification |
| Central strength member | All dielectric |
| Out jacket material | PVC |
Technical Data-Physical:
| Fiber count | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable diameter (mm) | 7.2 | 7.2 | 8.2 | 9.6 | 10.7 | 12.2 |
| Cable weight (kg/km) | 45 | 45.2 | 62.5 | 85.9 | 109 | 140 |
| Temperature rating | -20 ~+60ºC |
| Operation storage | -20 ~+60ºC |
Technical Data-Mechanical:
| Max. loading (IEC794-1) Installation operation | 660N
200N |
Min. bend radius (IEC794-1)
Long term (mm)
Short term (mm) | 20xD
10xD |
| Crush resistance (IEC794-1) | 1000N/100mm |
Technical Data-Transmission:
| Fiber type | Single-mode (1310/1550nm) | Multi-mode (50/125um)
(850/1300nm) | Multi-mode
(62.5/125um)
(850/1300nm) |
| Attenuation | Typical | 0.36/0.22 | 3.0/1.0 | 3.0/1.0 |
| Maximum | 0.5/0.4 | 3.5/1.5 | 3.5/1.5 |
| Zero dispersion slope | <0.093ps/km•nm2 | - | - |
| Dispersion (1285~1340nm) | -3.5~ 3.5ps/ (nm•km) | - | - |
| Mode field diameter | 9.3+/-0.4um | - | - |
| Cutoff wavelength cable | <1270nm | - | - |
| Bandwidth | @850nm | - | ≥200MHz•km | ≥160MHz•km |
| @1300nm | - | ≥400MHz•km | ≥200MHz•km |
| Cladding diameter (um) | 125+/-1.0 | 125+/-1.0 | 125+/-1.0 |
