| Prod Model: |
GJFJV |
| Operating Temperature: |
-40 C ~ +70 C |
| Central Member: |
Mentallic Strength Member |
| Armor: |
Steel Armoring |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
Product Description
Simplex Cables--GJFJV
Description:
This specification covers a Φ2.8mm orΦ2.0mm single fiber cable with a 900um tight buffered fiber and aΦ1.6mm single fiber cable with a 600um tight buffered fiber.
Application:For premises wiringIndoorInternal wiring

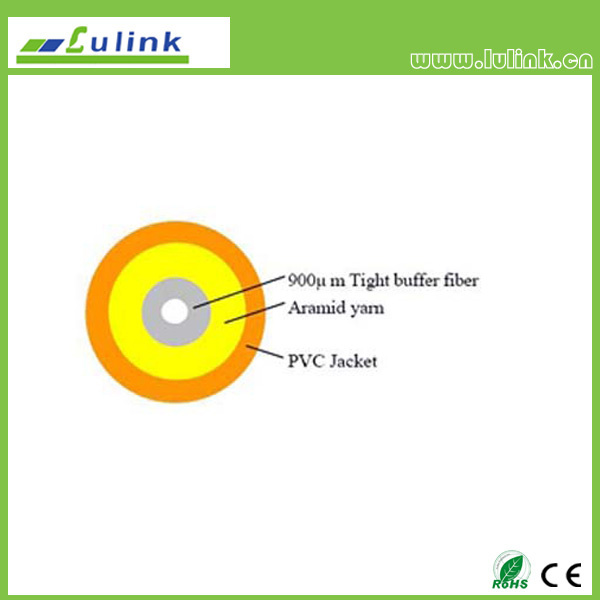

Construction Data:
| Tight buffer fiber diameter | 600+/-50um for 1.6mm cable/ 900+/-50um for 2.0mm, 2.8mm cable |
| Core reinforce | Aramid yarn |
| Out jacket material | PVC |
Technical Data-Physical:
| Cable diameter (mm) | 1.6 | 2.0 | 2.8 |
| Cable weight (kg/km) | 3.3 | 4.2 | 6.4 |
| Temperature rating | -20 ~+60ºC |
| Operation storage | -20 ~+60ºC |
Technical Data-Mechanical:
| Max. loading (IEC794-1) Installation operation | | 120N
60N | 150N
80N |
