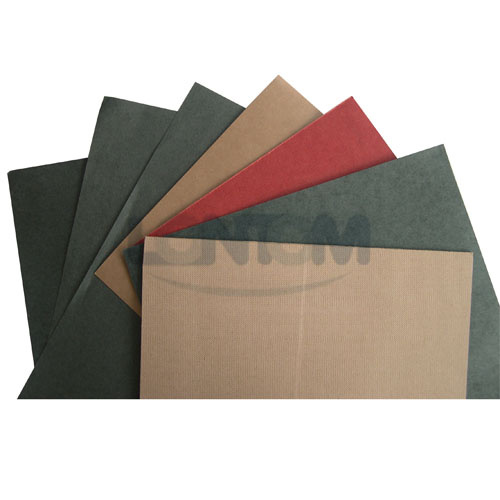

Insulation Press Paper Board (PPB)

Name: Insulation Press Paper Board (PPB)
Brand: all-electronics-online.com
SKU: 643517385
Availability: InStock
Rating: 4.7 (134 reviews)

Price:	Negotiable/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Ton
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPB
Markets:	Southeast Asia,Africa,Mid East,Western Europe
Application:	Insulators
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	A 105

Product Description

Insulation Press Paper Board is appropriated for uses as electric industrial board for motors, electric device, instruments, switch board, transformer for insulation and assembly pieces. 100%(wood/cotton) thick board is characterized by its high density, good mechanical strength, low compression coefficient and high electric strength.

Main Properties:
Thickness: 0.5---4.5mm
Laminated board thickness: 5-50mm
Size: 1X1; 1X2; 2X4M
Color: Brown, red or green

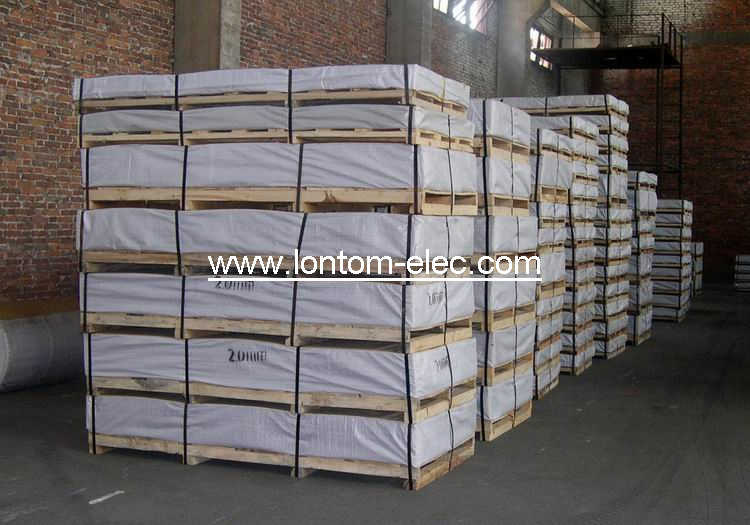

Package: 1000 kgs per pallet.

Properties		Unit	Testing value
Thickness		mm	0.8~1.0mm	1.5~2.0mm	2.5mm	3.0mm
Thickness Tolerance		%	±7		±5
Density		g/cm3	1.00~1.25		1.10~1.25
Tensile Strength, Min.	Cross	N/mm2	50
	Longitudinal		90
contraction, Max.	Cross	%	1.4
	Longitudinal		1.0
	Vertical		6.0
Elongation, Min.	Cross	%	4.0
	Longitudinal		35
Dielectric Strength, Min.		KV/mm	35	30	27	24
Humidity		%	4~9		5~9
PH of Aqueous Extract			6.0~8.0
Oil-absorbency, Min.		%	9
