Jq-12f-2z 30A 250VAC Power Relay /High Power Relay, Power Electromagnetic Relay

Jq-12f-2z 30A 250VAC Power Relay /High Power Relay, Power Electromagnetic Relay
Price: US $ 2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: JQ-12F-2Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Capacity: 30A 250VAC/ 28VDC
Terminal Layout: 2z, 2h, 2D
Dielectric Strength: Boc 1000VAC, Bcc 1500VAC
Certificate: CCC,CE
Rated Coil Power: DC2.5W AC4.0va

Product Description

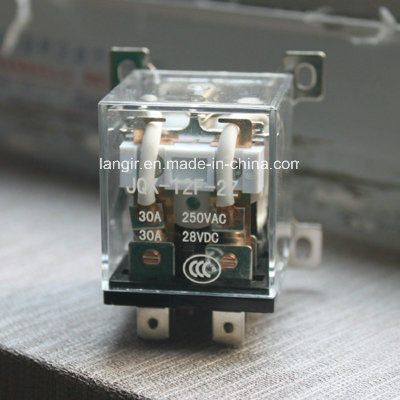

JQX-12F Power Electromagnetic Relay

Order Code

Technical Specification

Insulation Resistance≥1000mΩ (500VDC)
Dielectric strengthBetween coil and contacts ≥2500VAC1min
Between open contacts ≥1200VAC1min
Operate/ Release time≤15ms/ 10ms
Terminal TypeScrew

Contact Specification

Contact Form2Z, 2H, 2D
Contact Resistance≤100mΩ (1A 6VDC)
Contact MaterialAgCdO, AgSnO2
Contact Capacity30A 250VAC/ 28VDC

Coil Specification

Rated Coil PowerDC2.5W AC4.0VA

Coil Date

Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
64.200.6030129.603.6024
128.401.201202419.207.2072
2416.82.403304838.4014.40430
4833.64.80182011088.0036.001500
6042.06.002800220176.0072.006050/7200




240176.072.008000

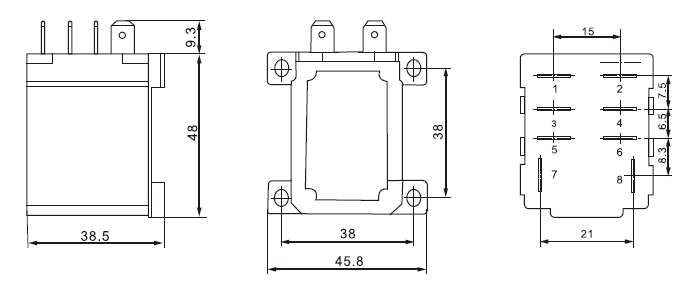

Dimension

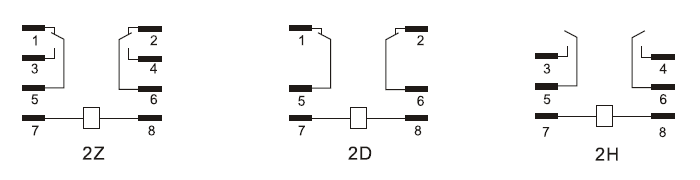

Wiring Diagram




Profile
