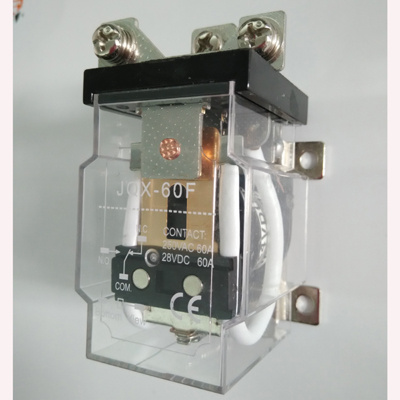

Jqx-60f Power Relay 60A 250VAC Relay with High Quality

Jqx-60f Power Relay 60A 250VAC Relay with High Quality
Price: US $ 2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: JQX-60F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Capacity: 60A 250VAC/ 30VDC
Terminal Layout: 1z, 1h, 1d
Dielectric Strength: Boc 1200VAC, Bcc 2500VAC
Certificate: CCC,CE
Rated Coil Power: DC2.0W AC2.5va

Product Description

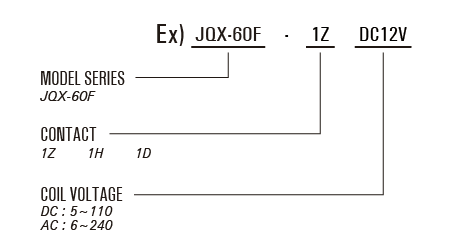

Order Code



Technical Data



Insulation Resistance≥1000mΩ (500VDC)
Dielectric strengthBetween coil and contacts ≥2500VAC1min
Between open contacts ≥1200VAC1min
Operate/ Release time≤25ms/ 25ms
Terminal TypeScrew



Contact Specification



Contact Form1Z, 1H, 1D
Contact Resistance≤100mΩ (1A 6VDC)
Contact MaterialAgCdO, AgSnO2
Contact Capacity60A 250VAC/ 30VDC



Coil Specification



Rated Coil PowerDC2.0W AC2.5VA



Coil Date



Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
64.800.601864.801.8014.4
129.601.2072129.603.6057
2419.202.402882419.207.20230
4838.404.8011504838.4014.40921
6048.06.00180011088.0036.005000
11088.011.06050220/240176.0072.0019400/ 23070

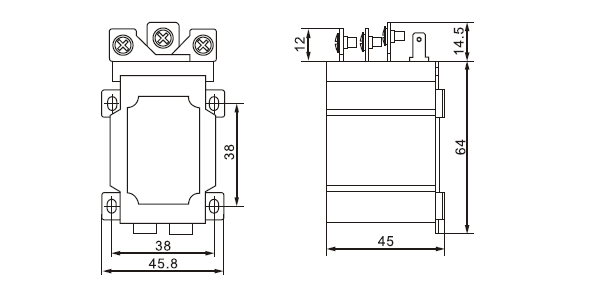

Dimension

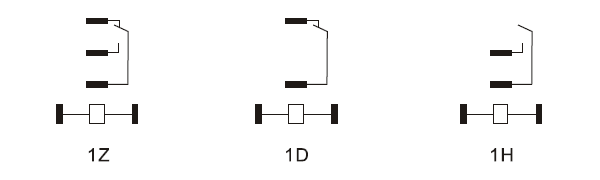

Wiring Diagram

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
