LC Duplex ODVA Patch Cord Fiber Optic Outdoor Cable RRU and Base Station

Name: LC Duplex ODVA Patch Cord Fiber Optic Outdoor Cable RRU and Base Station
Brand: all-electronics-online.com
SKU: 834211535
Availability: InStock
Rating: 4.5 (74 reviews)

Price:	US $ 1-20/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	002
Cable Diameter:	7.0mm
Fiber Type:	Singlemode
Cable Color:	Black
Connector Type:	ODVA LC Connector
Fiber Count:	2
Jacket:	LSZH Jacket
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CCC
Sheath Material:	LSZH

Product Description

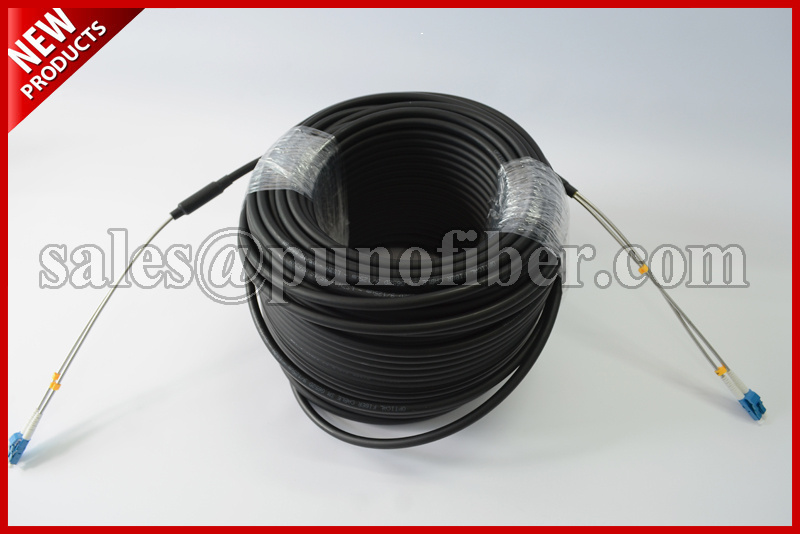

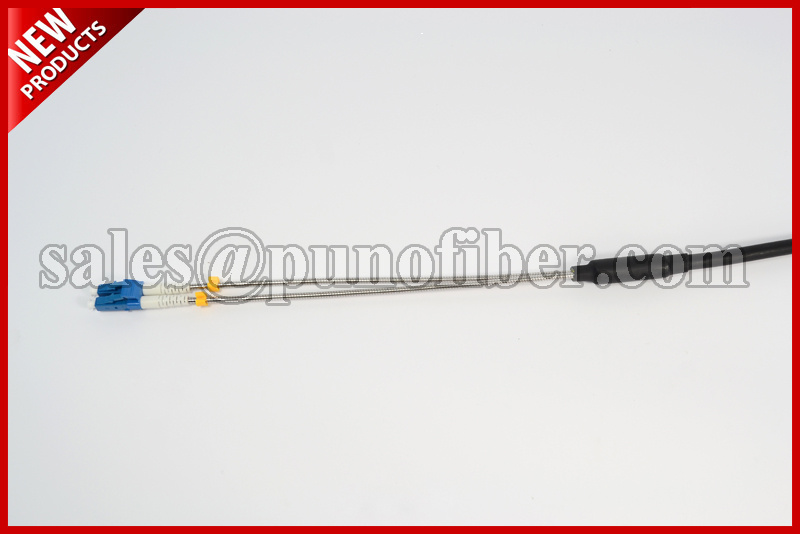

LC Duplex ODVA Patch Cord Fiber Optic Outdoor Cable RRU and Base Station

Cable Diagram
This specification covers the requirements for application of the FullAXS connector system, which is designed to perform optical or electrical connections using a variety of cables and connectors. A bulkhead panel mount device enables mechanical connection of the plug against a panel or a cabinet by means of bayonet coupling. A shielded cable plug provides an electrical grounding structure to connect the braid of a shielded cable to the panel or cabinet. The ground connection is achieved by multiple contact springs in the plugs, pressing against the inside surface of the panel hole. The optical and electrical connections, as well as the environmental sealing of the FullAXS connector, are established as soon as the circular outer shell is locked to the bulkhead.

Features
√ Built-in socket with square or hexagonal flange;
√ Screwed locking mechanism;
√ Easy and safe installation.

Application
√ FTTx in passive optical network;
√ Transportation and railway system;
√ Ethernet and Industrial networking system;
√ Broadcasting networks;
√ Mining;
√ Any extreme environments;
√ Base station / FTTA.

Specifications of Connector

Mating Mechanism	Bayonet
Ingress Protection	IP-67
Operating Temperature	-40ºC ~ +70ºC
Mechanical Performance	Straight pulling force 25 Kgs
Mating Durability	500 mating cycles
Jacket color	OS2 (G.652.D): Black OS2 (G.657.A2/B2): Black
Notes: Connector performance characteristics are provided in the product specification for the applied connection type.

Physical Properties

Cable outside diameter (OD)	5.0±0.2mm
Connector cable retention	50N @ 0ºC 19.4N @ 90ºC
Connector durability	500 cycles
Bend radius, minimum	1.6mm: 16mm 3mm: 29mm 900 micron: 9mm

Technical Polarity

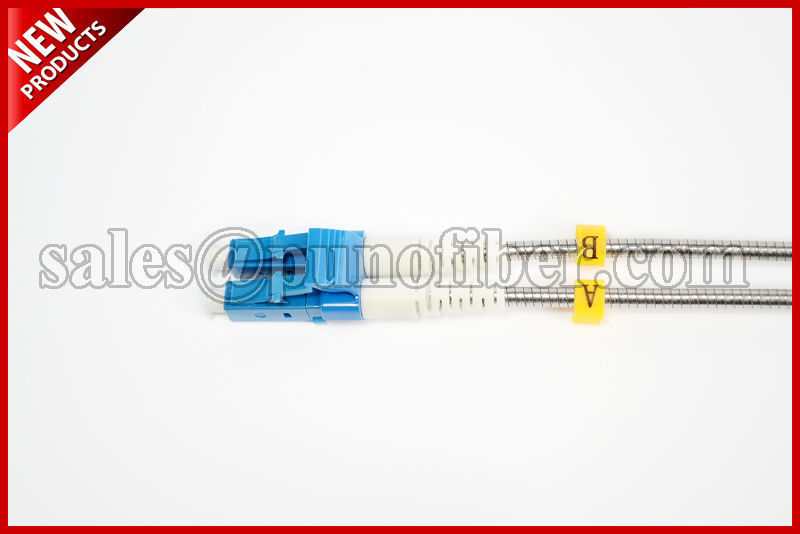

LC duplex to FullAXS, cable Ø 4.8 mm, singlemode bend insensitive fiber
