| Prod Model: |
JL3214 |
| In Put Voltage: |
90 ~ 264vact127 ~ 370VDC |
| Output Voltage: |
5/12/15/24/36V |
| Power: |
100W |
| Warranty: |
2 Years |
| Item Name: |
LED Driver Powersupply |
| Usage: |
Light |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Brand: |
Meanwell |

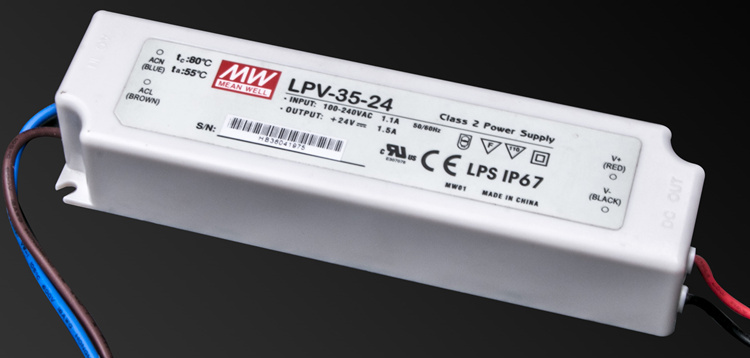

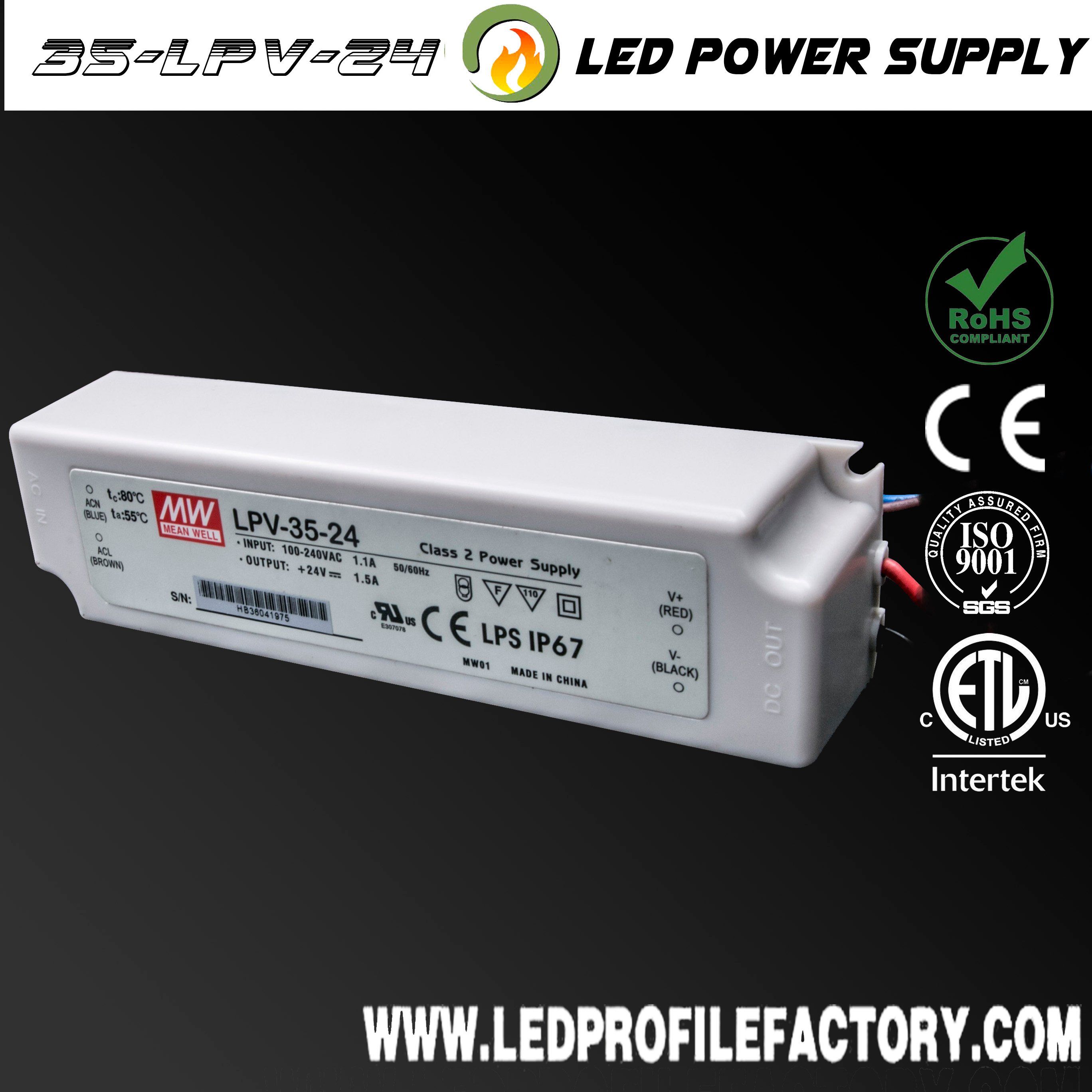

Product Description
Why choose us
feature
Withstand 300VAC Surge input for 5 seconds
Universal AC input I Full range
Cooling by free air convection
Protections: Short circuit I Over load I Over voltage
Fully isolated plastic case
100% full load burn-in test
Small and compact size
Class 2 power unit
IP 42 design
Pass LPS
Specification
| MODEL | APV-25-5 | APV-25-12 | APV-25-15 | APV-25-24 | APV-25-36 |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V |
| RATED CURRENT | 3.5A | 2.1A | 1.68A | 1.05A | 0.7A |
| CURRENT RANGE | 0 ~ 3.5A | 0 ~ 2.1A | 0 ~ 1.68A | 0 ~ 1.05A | 0 ~ 0.7A |
| RATED POWER | 17.5W | 25.2W | 25.2W | 25.2W | 25.2W |
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| VOLTAGE TOLERANCE Note.3 | ±5.0% |
| LINE REGULATION | ±1.0% |
| LOAD REGULATION | ±2.0% |
| SETUP, RISE TIME Note.6 | 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load |
| HOLD UP TIME (Typ.) | 20ms/230VAC 12ms/115VAC at full load |
| INPUT | VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 75.50% | 82% | 83% | 83% | 84% |
| AC CURRENT | 0.4A/230VAC 0.8A/115VAC |
| INRUSH CURRENT(Typ.) | COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC |
| LEAKAGE CURRENT | 0.25mA / 240VAC |

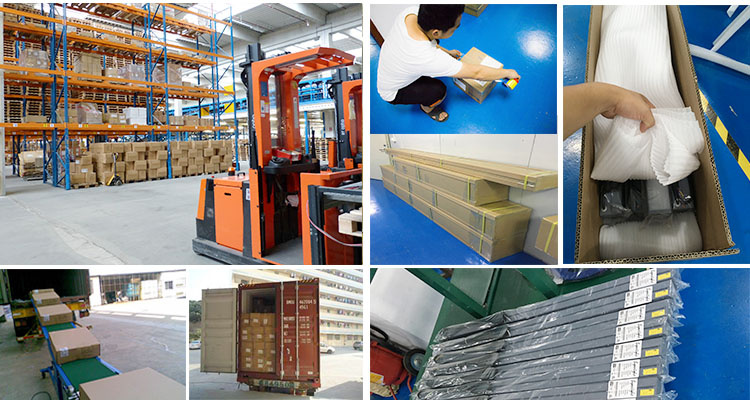

Packaging&transportation:
FAQ:
Q:How will I know whether to use a Constant Voltage or Constant Current driver with my LED's?
A:Usually the manufacturer of the LED load will specify whether the LED module is for use with either a Constant Voltage or Constant Current driver.
Q:What is input voltage range of LED Driver?
A:85-264VAC,120-373VDC
Q:What is output DC voltage of LED Driver?
A:3.3/5/12/15/24/36/48V
Q:What is the working temperature?
A:-30~+70ºC
Q:What is the warranty for an LED Driver?
A:Our LED drivers have a 5 year limited warranty
