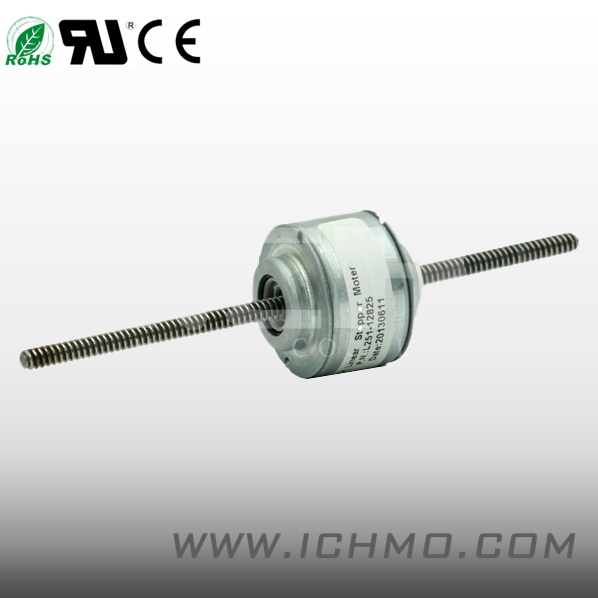

Linear Hybird Stepper Motor (L251)

Name: Linear Hybird Stepper Motor (L251)
Brand: all-electronics-online.com
SKU: 680307115
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L251
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	25mm
Step Angle:	1.8/0.9
No. Of Phase:	2
Excitation Mode:	PM-Permanent Magnet
Type:	Magnetic-Electric
Number Of Stator:	Linear Stepper Motor
Number Of Poles:	Linear Stepper Motor
Operate Mode:	Linear Stepper Motor
Brand:	I.CH

Product Description

I. CH Motor supply PM linear stepper motor. The L series PM linear stepper motors are optimized for superior torque characteristics.
Motors may be customized with value added features including, but not limited to: Encoders, shaft details, leadwire-connector assemblies and more.
All specification shown are typical at 20Degree unless otherwise noted.
Shaft extensions
All motors can be supplied with single or double ended shaft
Rotation
The motor rotation can rn clockwise or counterclockwise, depending on the commutation.
Operating temperature
Ambient operating temperature: -20Degree to +125Degree

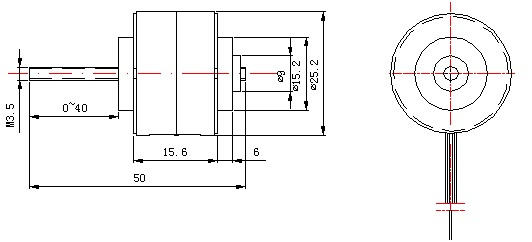

Drawing:

Electrical Specification
Series Model	Step Angel (°)	No.of phase	Rated Current (A)	Phase Resistance (ohm)	Phase Inductance (mH)	Travel per Step Avail (mm)	Diameter of Linear actuator (mm)	The Mark Thrust (N)	All Journey (mm)
L251-11025	1.8/0.9	2	0.5	14	20	0.0079, 0.0158, 0.03175	6.35	50~200	<=304.8
L251-11020	1.8/0.9	2	0.5	10	4.7
	1.8/0.9	2	1.25	1.86	0
	1.8/0.9
	1.8/0.9
	1.8/0.9
Note: Not limited as the above list, customization is welcome Torque of unipolar 30% less than that of Bipolar The whole length of output shaft or input shaft should be considered the drive condition The standard motor's isolation class is B, the max. temperature is 130Degree

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.
