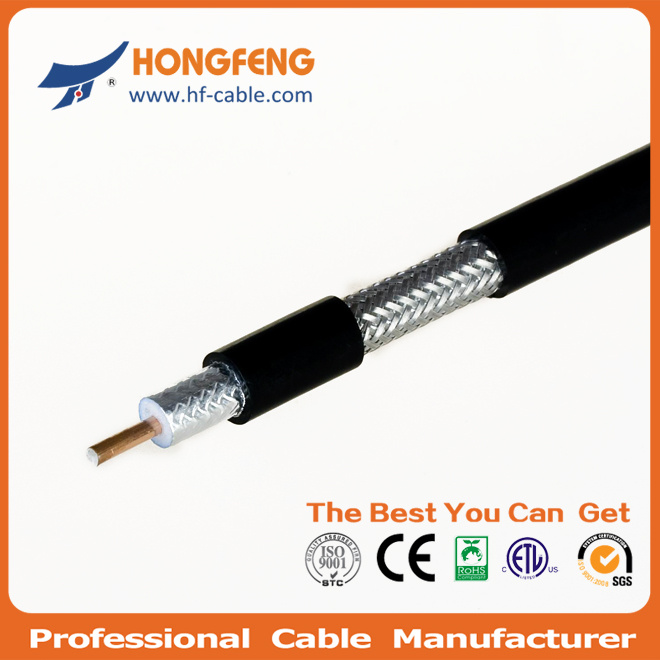

LMR 400 Coaxial Cable RF 50 Ohm Cable

Prod Model:	LMR400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CE
Type:	Coaxial Cable
Model:	LMR400
Brand:	Hf

Product Description

LMR400 cable
0.74 BC+7.24 FPE+ALFOIL+96*0.15BRAIDING+10.29 PVC
Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.

Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.

Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days

#Coaxial Cables:
1) RG Series Coaxial Cable: RG58, RG59, RG6, RG7, RG11, etc;
2) Network Cables: LAN Cable CAT3, LAN Cable CAT5;
3) Combined Cable: Siamese Cables: RG59+2C, RG6+2C, etc.

#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.

	Item	Material	Diamter  (mm)
1	Inner  Conductor(mm)	solid  copper /cca	2.74
2	Dielectric(mm)	solid  polyhthylene	7.24
3	Outer  Conductor(mm)	bonded  alunimium  foil	7.39
4	overall  braid	tinned  copper	8.13
5	Jacket(mm)	black  polyhthylene	10.29



  3)Basic Characteristics

Impedance	50ohm
Capacitance(PF/m)	101.1PF/m
velocity  of  propagation	85%
voltage  withstanding	500V  DC
Maximum  operating  frequency	6000  MHz
Nominal  Capacitance	84pF/M
SRL	50-300:   20dB
Sparker  Test(VAC)	4000
Attenuation(dB/100m)Max
150	5
220	6.1
450	8.9
900	12.8
1500	16.8
1800	18.6
2000	19.6
2500	22.2
3000	24.8
5800	35.5
