Lxw 16 Series Mirco-Switch

Name: Lxw 16 Series Mirco-Switch
Brand: all-electronics-online.com
SKU: 751028955
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 7.8-8/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXW 16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ui Rated Insulation Voltage:	AC 380V
Ith Conventional Thermal Current:	16A
Mechanical Life:	1,000,000 Times Operations
Electrical Life:	100,000 Times Operations
Pressing Type:	Push-Button
Protection:	Explosion-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	High-Current
Breaking Form:	Duplex Type
Application:	Power Plant

Product Description

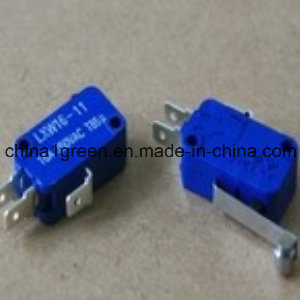

LXW 16 series micro-switch

Technical Specification

Item	Characteristic
Utilization Category	AC-12	DC-12	DC-12
Ui rated insulation voltage	AC 380V
Ith conventional voltage	16A
Ue rated working voltage	AC 250V	DC 250V	DC 250V
Ie rated working current	16A	0.3A	5A
Contact resistance	≤30mΩ
Power frequency withstand voltage	between current-carrying components and surface easy to touch		AC1890±3% 45-65Hz 5S
	between current-carrying metal parts and the ground		AC1890±3% 45-65Hz 5S
Mechanical life	1,000,000 times operations
Electrical	100,000 times operations
Ambient operating temperature	-25ºC--+85ºC

Approvel standards

	CCC	UL	CE
LXW16-**	Ith:16A	AC 250V 15A	AC-12 250V 16A
	AC-12 250V 16A		DC-12 250V 0.3A
	DC-12 250V 0.3A
LXW16-M	DC-12 250V 5A		DC-12 250V 5A
LXW16-M

Precautions for correct use

Please read this page carefully before use,common precaution please to relevant pages in summary.

Mounting
Use M3 mounting screws with plane washers or spring washers.To securely mount the switch.Tighten the screws to a torque of 0.39 to 0.59 N*m

Insulation distance
Minimum insulation layer thickness for this micro switch is 1.1mm.Minimum space distance is 1.9mm between terminal and mounting plate.Please use insulating shields or parttion to keep safe insulation distance if it failed to secure insulation distance required.
