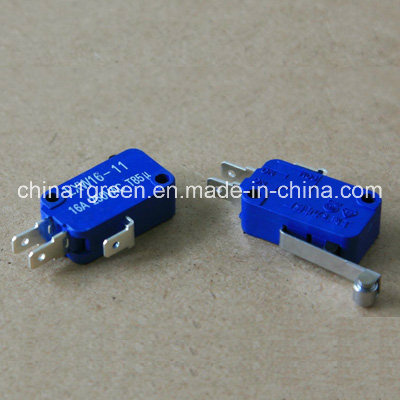

Lxw 16A Micro Switch

Name: Lxw 16A Micro Switch
Brand: all-electronics-online.com
SKU: 751029415
Availability: InStock
Rating: 4.7 (24 reviews)

Price:	US $ 7.3-7.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXW16A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ui Rated Insulation Voltage:	AC 380V
Ith Rated Insulation Voltage:	16A
Mechanical Life:	100,000 Times Operations
Electrical Life:	30,000 Times Operations
Pressing Type:	Push-Button
Protection:	Explosion-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	High-Current
Breaking Form:	Duplex Type
Application:	Hv Cabinet

Product Description

LXW 16A Series Micro Switch

Technical Specification

Item	Characteristic
Utilization Category	AC-12	AC-15	DC-13
Ui rated insulation voltage	AC 380V
Ith conventional thermal current	16A
Ue rated working voltage	AC 250V	AC 250V	DC 250V
Ie rated working current	16A	3A	0.3A
Contact resistance	≤30mΩ
Power frequency withstand voltage	between current-carrying components and surface easy to touch		AC1890V±3% 45---65Hz 5s
	between current-carrying metal parts and the ground		AC1890V±3% 45---65Hz 5s
Mechanical life	100,000 times operations
Electrical life	30,000 times operations
Ambient operating temperature	-25ºC---+85ºC

Approved standards

	CCC	UL
LXW16A-**	Ith:16A	AC 250V 10A
	AC-12 250V 16A	DC 250V 0.15A
	AC-15 250V 3A	DC 125V 0.3A
	DC-13 250V 0.3A	250V/125V 1/2HP

Precautions for correct use

Please read this page carefully before use,common precaution please refer to relevant pages in summary.

Mounting
Use M3 mounting screws with plane washers or spring washers.To securely mount the switch.Tighten the screws to a torque of 0.39 to 0.59 N*m

Insulation distance
Minimum insulating layer thickness for this micro switch is 1.1mm.Momo,um space distane is 1.9mm between terminal and mounting plate.Please use insulating shields or parttion to keep safe insulating distance if it failed to secure insulating distance required.
