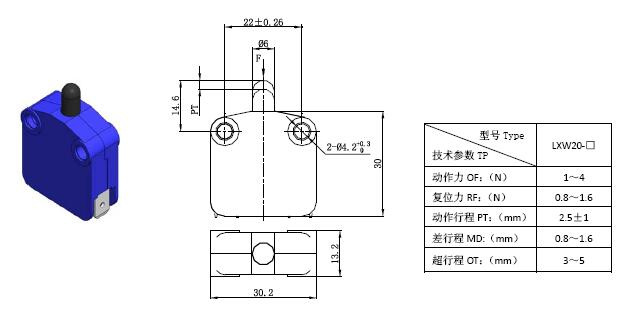

Lxw 20 Series Mirco-Switch

Name: Lxw 20 Series Mirco-Switch
Brand: all-electronics-online.com
SKU: 775589565
Availability: InStock
Rating: 5 (90 reviews)

Price:	US $ 7.8-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXW 20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Insulation Voltage:	AC 380V
Conventional Thermal Current:	16A
Mechanical Life:	300,000 Times Operations
Electrical Life:	100,000 Times Operations
Pressing Type:	Push-Button
Protection:	Explosion-Proof
Size:	Small-Sized
Breaking Capacity:	DC
Breaking Form:	Single Type
Environment:	-25-85
Application:	Hv Cabinet

Product Description

Features & Application

1.Quick&Reliable action,high precision,long life.
2.Different contact material like gold alloy,silver alloy or silver for different electrical load application.
3.Variety of quick connect terminals, for customer flexibly selection.
4.Variety of auxiliary driving type to meet different occasions.
5.Applicable to the control circuit with AC 380W,DC 250V,used as parts for master electrical appliances or alternative appliances.contact form:Za, it is recommended to connect in the same phase circuit while using the change-over contact.
6.This product is widely used for controlling electromagnet or inductive load,such as home appliance,tool,power electronic and automation application.

Technical Specification

Item	Characteristic
Utilization Category	AC-12	AC-15	DC-12	DC-13
Ui rated insulation voltage	AC 380V
Ith conventional thermal current	16A
Ue rated working voltage	AC 380V	AC 400V	DC 250V	DC 220V	DC 48V
Rated working current	16A	3A	5A	1.2A	6A
Contact resistance	≤30mΩ
Power frequency withstand voltage	between current-carrying components and surface easy to touch		AC1890V±3% 45--65Hz 5s
	between current-carrying metal parts and the ground		AC1890V±3% 45--65Hz 5s
Mechanical life	300,000 times operations
Electrical life	100,000 times operations
Ambient operating temperature	-25ºC--+85ºC
