Molded Case Leakage Circuit Breaker Comle-100

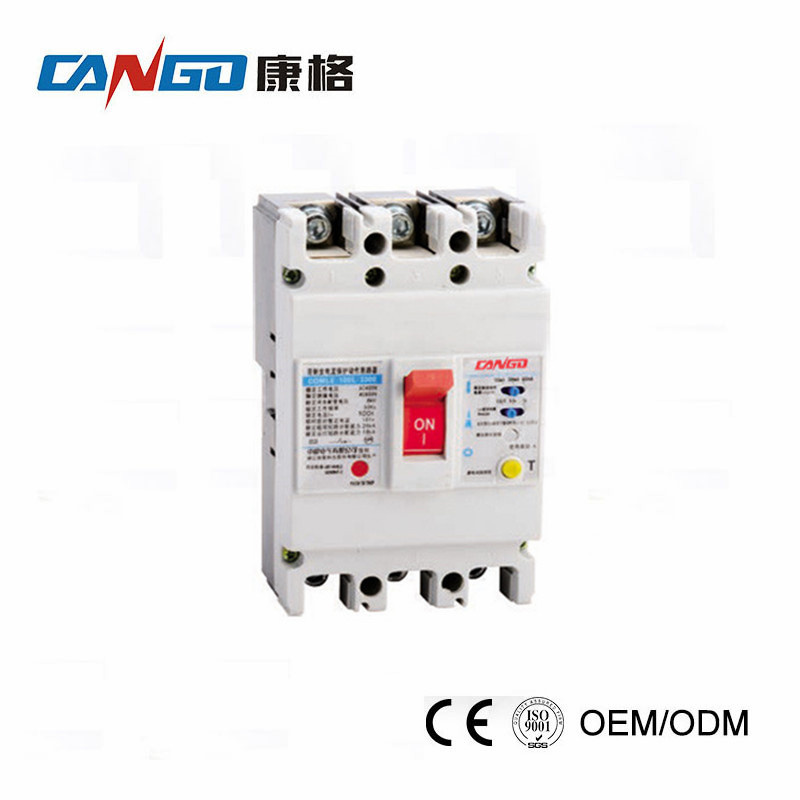

Name: Molded Case Leakage Circuit Breaker Comle-100
Brand: all-electronics-online.com
SKU: 734034112
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COMLE-100
Poles:	3p 4p
Frequency:	50/60Hz
Rated Current In(a):	6,10,16,20,25,32,40,50,63,80,100
Rated Insulated Voltage Ui(V):	800
Rated Working Voltage Ue(V):	400
Rated Impulse Withstand Voltage Uimp(V):	8000
Flash Over Distance:	50mm
I △ No(Ma):	101/21 N
Frame Current(a):	100
Mechanical Life(Times):	8500
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC

Product Description

COMLE-100 Electric Energy Meter External Circuit Breaker
1. Residual current three phase protection.
2. Residual current and its action time is adjustable.
3. Low voltage protection: when voltage is below 85V, the leakage protection module can still work normally.

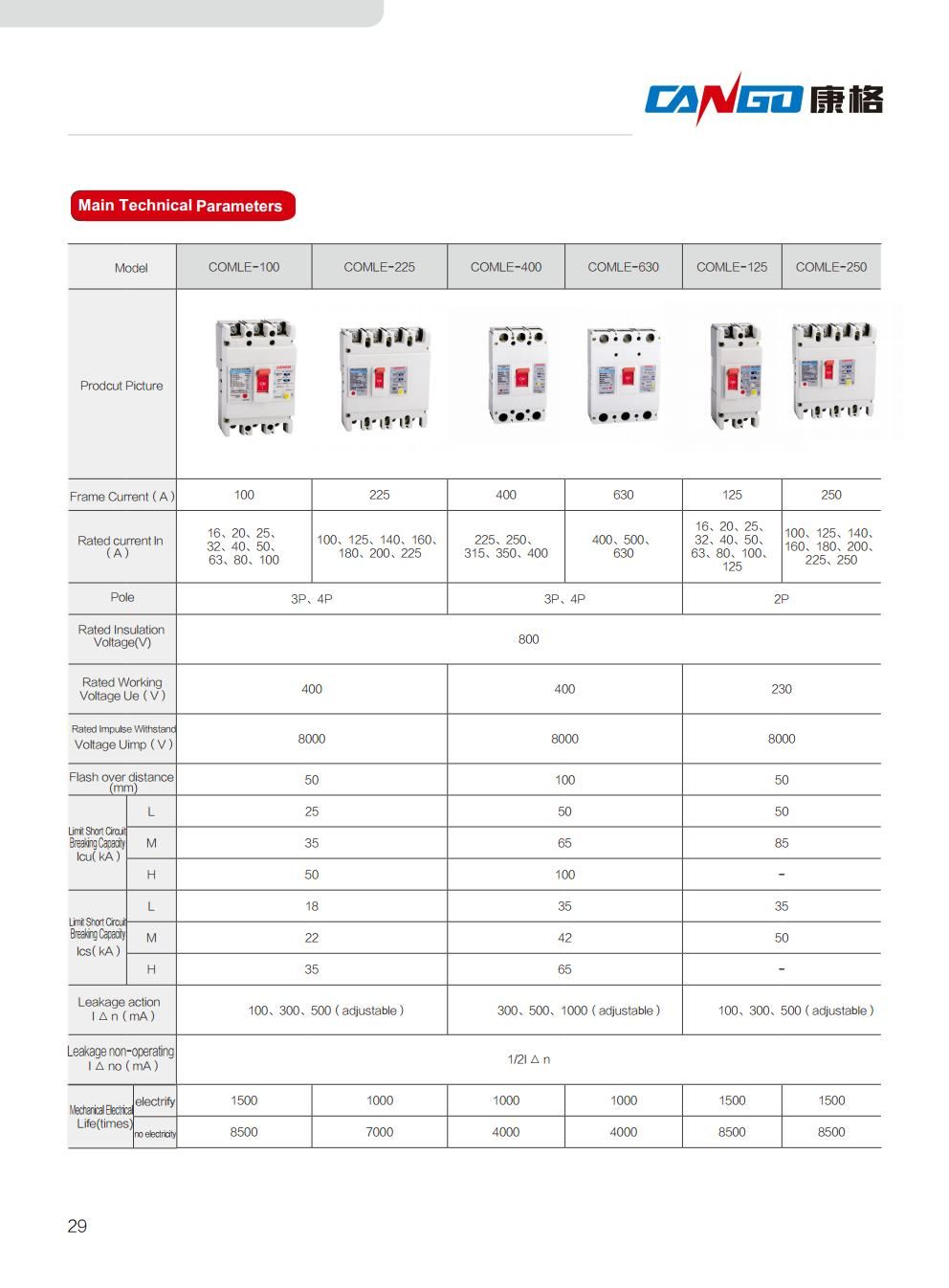

Technical Parameters of COMLE series MCCB

Poles	3P 4P
Frequency	50/60Hz
Rated Current in(a)	10,16,20,25,32,40,50,63,80,100
Rated Insulated Voltage Ui(V)	800
Rated Working Voltage Ue(V)	400
Rated Impulse Withstand Voltage Uimp(V)	8000
Leakage Operation Current	100,300,500(adjustable)

Application of our COMLE-100 MCCB:

Our Factory:

Pls feel free to contact us.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
