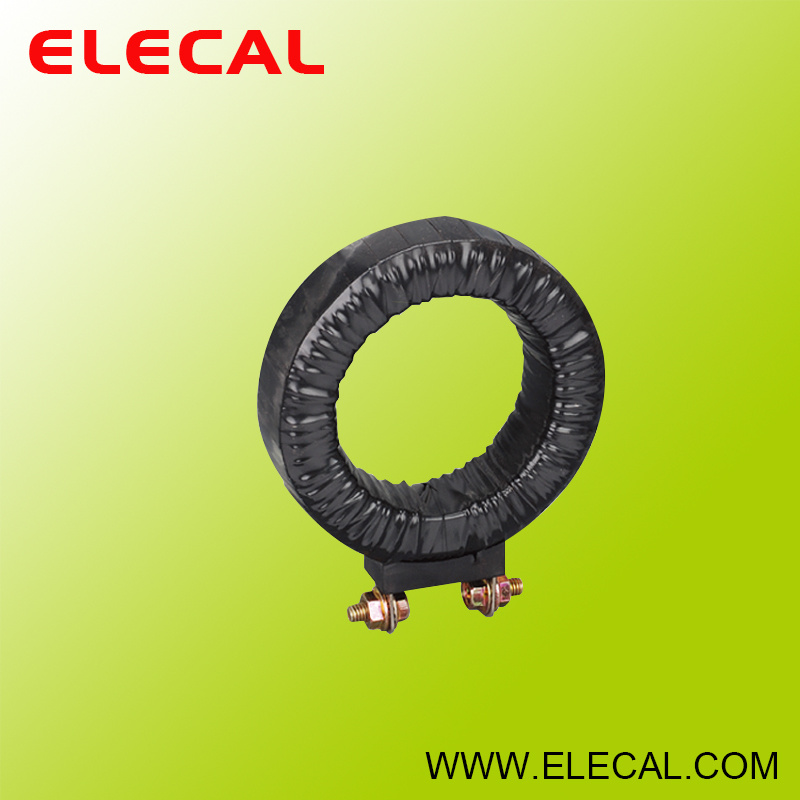

Mr Current Transformers

Name: Mr Current Transformers
Brand: all-electronics-online.com
SKU: 767075485
Availability: InStock
Rating: 4.9 (53 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

1.MR Series
Primary current: 30A-5000A
Secondary currnet:5A,1A
Standard approval:BS7626,IEC185
Maximum voltage:0.72KV
Frequency:50-60KV
Rated load:5VA-15VA
Class:1.0,3.0
Short-time thermal current:1th=60x1h
Rated security coefficient: FS<5
2.Specification
Class:0.5 1.0 3.0

Type	Current	ID(mm)	OD(mm)	TD(mm)
MR-28	30/5A-60/5A	28	70	40
MR-42	100/5A-250/5A	42	80	30
MR-45	300/5A	45	80	30
MR-60	400/5A	60	100	30
MR-60	400/5A 600/5A	60	100	30
MR-85	800/5A-1600/5	85	120	20
MR-125	2000/A-5000/5	125	165	20

Noted: For measuring currenttransformers, the accuracy class is designated by the highest permissible percentage current(ratio)error at the rated current perscribed for the ac curacy class concerned.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
