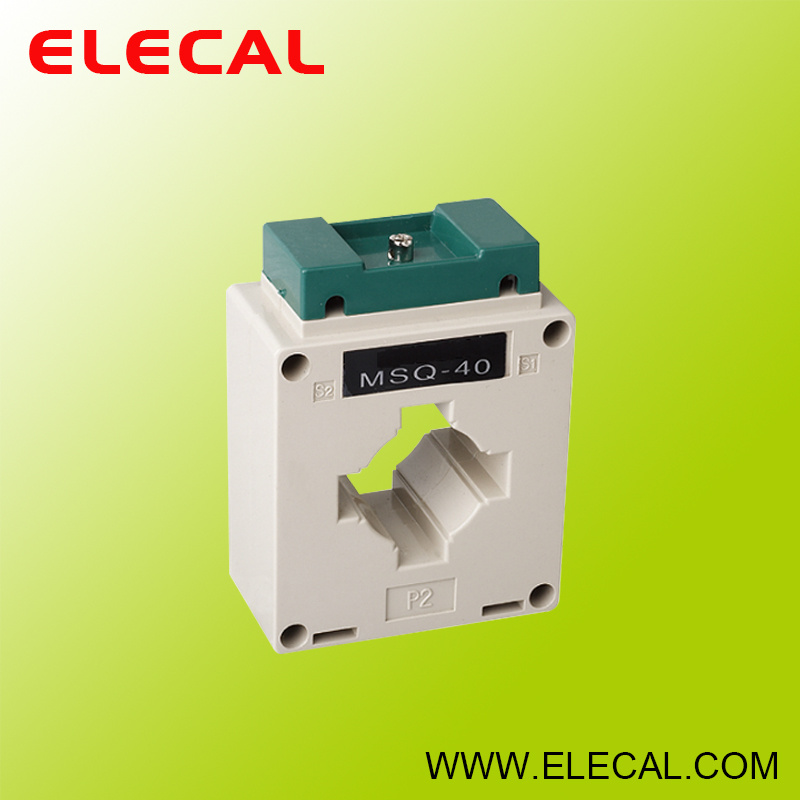

Msq Current Transformers

Prod Model:	MSQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

MSQ-A
Primary current:5A-150A
Secondary current:5A,1A
Standard approval:VDE0414,BS7626,IEC185
Maximum voltage:0.66KV
Frequency:50-60KV
Rated load:10VA
Class:0.5,1.0
Short-time thermal current:1th=60Ih
Rated security coefficient:FS5
Mounting methods:by once-lead or by copper bar

Technical characteristics of current transformers:

WITH BUSBAR

Type	Rated current(A)	Rated power(VA)		Weight(Kg)
		Class:0.5	Class:1
MSQ-A	30/5	5-10	5-10	0,60
	40/5	5-10	5-10	0,60
	20/5	5-10	5-10	0,60
	60/5	5-10	5-10	0,60
	75/5	5-10	5-10	0,60
	80/5	5-10	5-10	0,60
	100/5	5-10	5-10	0,60
	120/5	5-10	5-10	0,60
	125/5	5-10	5-10	0,60
	200/5	5-10	5-10	0,60
	250/5	5-10	5-10	0,60

WINDOWS TYPE
Bar: 30x10mm conductor: 20mm

Type	Rated current(A)	Rated power(VA)	Weight (Kg)
Class:0.5	Class:1
MSQ-30	30/5	-	1	0.4
40/5	-	1	0.4
50/5	-	1	0.4
60/5	-	1	0.4
75/5	1	1.5	0.4
80/5	1.5	2.5	0.4
100/5	2.5	5	0.4
150/5	5-10	5-10	0.4
200/5	5-10	5-10	0.4
250/5	5-10	5-10	0.4
300/5	5-10	5-10	0.4

WINDOWS TYPE
Bar: 40x10mm conductor: 30mm

Type	Rated current(A)	Rated power(VA)		Weight(Kg)
		Class:0.5	Class:1
MSQ-40	100/5	2.5	2.5	0.38
	150/5	3	5	0.38
	200/5	5	5-10	0.38
	300/5	5-10	5-10	0.38
	400/5	5-10	5-10	0.38
	500/5	5-10	5-10	0.38

WINDOWS TYPE
Bar: 60x20mm conductor: 40mm

Type	Rated current(A)	Rated power(VA)	Weight (Kg)
Class:0.5	Class:1
MSQ-60	250/5	5	5	0.60
300/5	5	5	0.60
400/5	5-10	5-10	0.60
500/5	5-10	5-10	0.60
600/5	10-15	10-15	0.60
750/5	10-15	10-15	0.60
800/5	10-15	10-15	0.60
1000/5	15	15	0.60

WINDOWS TYPE
Bar: 60x20mm conductor: 80mm

Type	Rated current(A)	Rated power(VA)	Weight (Kg)
Class:0.5	Class:1
MSQ-80	750/5	15	15	0.75
800/5	15	15	0.82
1000/5	15	15	0.89
1200/5	15	15	0.99
1500/5	15	15	1.02

WINDOWS TYPE
Bar: 60x20mm conductor: 80mm

Type	Rated current(A)	Rated power(VA)	Weight (Kg)
Class:0.5	Class:1
MSQ-100	1500/5	15	15	0.80
1600/5	15	15	0.80
2000/5	15	15	0.94
2250/5	15	15	0.98
2500/5	15	15	1.10
3000/5	15	15	1.16

WINDOWS TYPE
Bar: 60x20mm conductor: 80mm

Type	Rated current(A)	Rated power(VA)	Weight (Kg)
Class:0.5	Class:1
MSQ-125	1500/5	15	15	1.0
2000/5	15	15	1.15
2500/5	15	15	1.45
3000/5	15	15	1.60
4000/5	15	15	1.90
5000/5	15	15	2.20
