NEMA 11 NEMA 17 NEMA 23 Linear Lead Screw Stepper Motor

Name: NEMA 11 NEMA 17 NEMA 23 Linear Lead Screw Stepper Motor
Brand: all-electronics-online.com
SKU: 742927815
Availability: InStock
Rating: 4.3 (100 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	nema08 to nema 23
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 or 0.9
Hold Torque:	1.4 N.Cm to 900 N.Cm
Phase:	2 Phase
Current:	0.2-5A
Stepper Motor Size:	20mm to 86mm Length
Lead Screw Dia:	5mm to 8mm for Choose
Lead Screw Length:	50-300mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Brand:	Leison Motor

Product Description

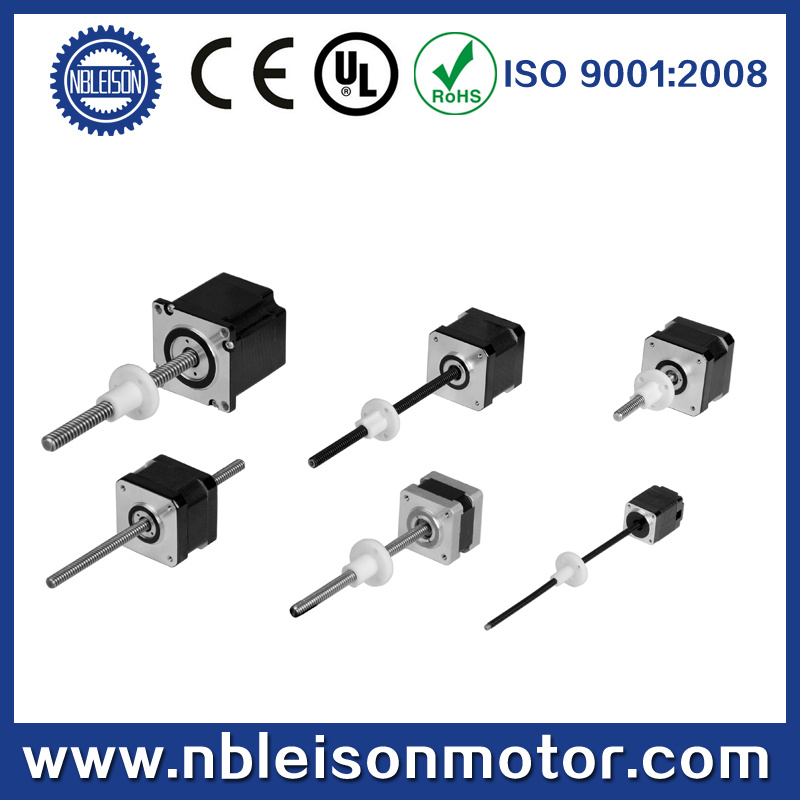

linear stepper motor:

1. Professional manfacuturer for stepper motor, We have different type NEMA8, NEMA11. NEMA14, NEMA16

NEMA17, NEMA23, NEMA34

2.1.8 degree, 0.9 degree. 3.6 degree, 1.2 degree, Single shaft or double shaft, D-cut or rond shaft

3. Customized lead wires length and connectors are also acceptable

4. Specal requirement such as add brake,encoder,gearbox are accept

5. lead screaw diamter: 3.5mm, 6.35mm or 8mm

6. lead screw material: cooper, aluminum or polyformaldehyde can be choose

7 lead screw length: 50mm to 300mm can be customized

8 We also have stepper motor and geared stepper motor from nema08 to nema34 to sell,Weclome your

required about more details about our stepper motors.

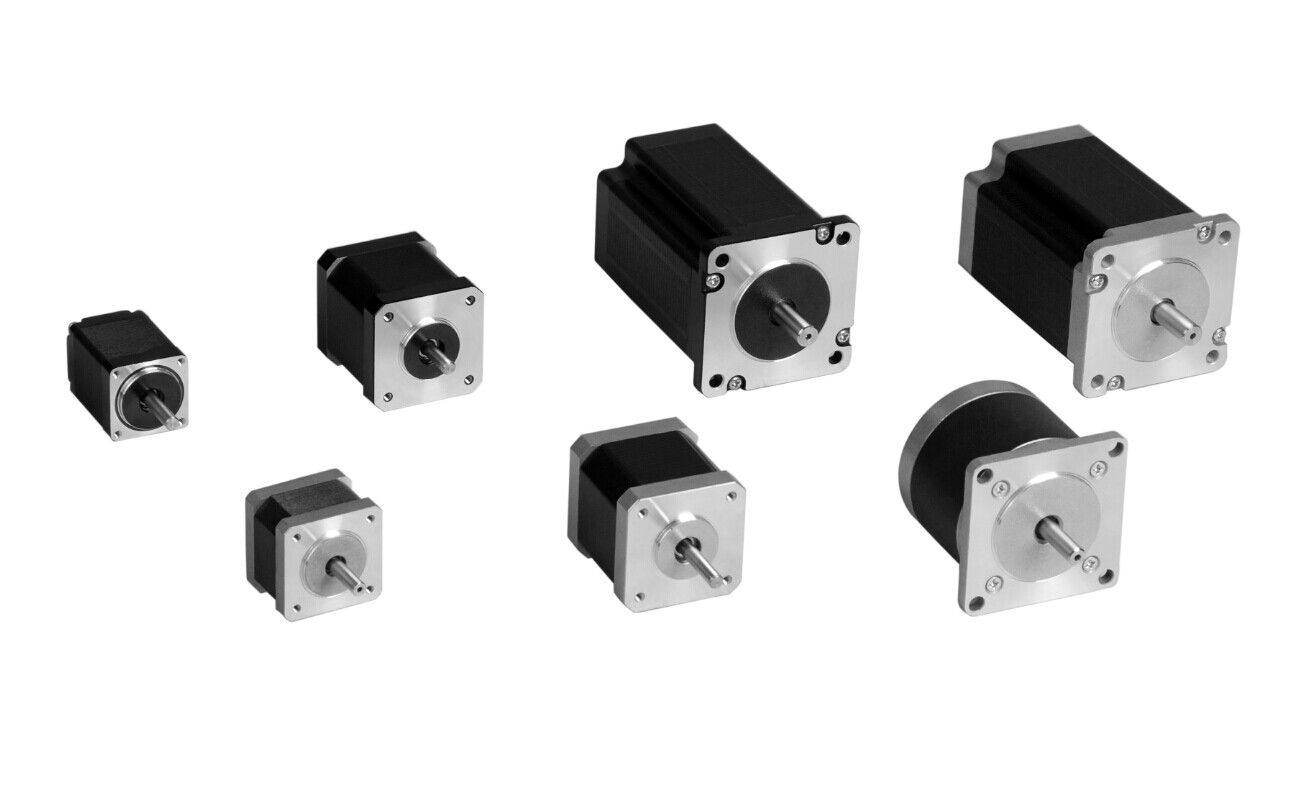

9 Different motor pictures:

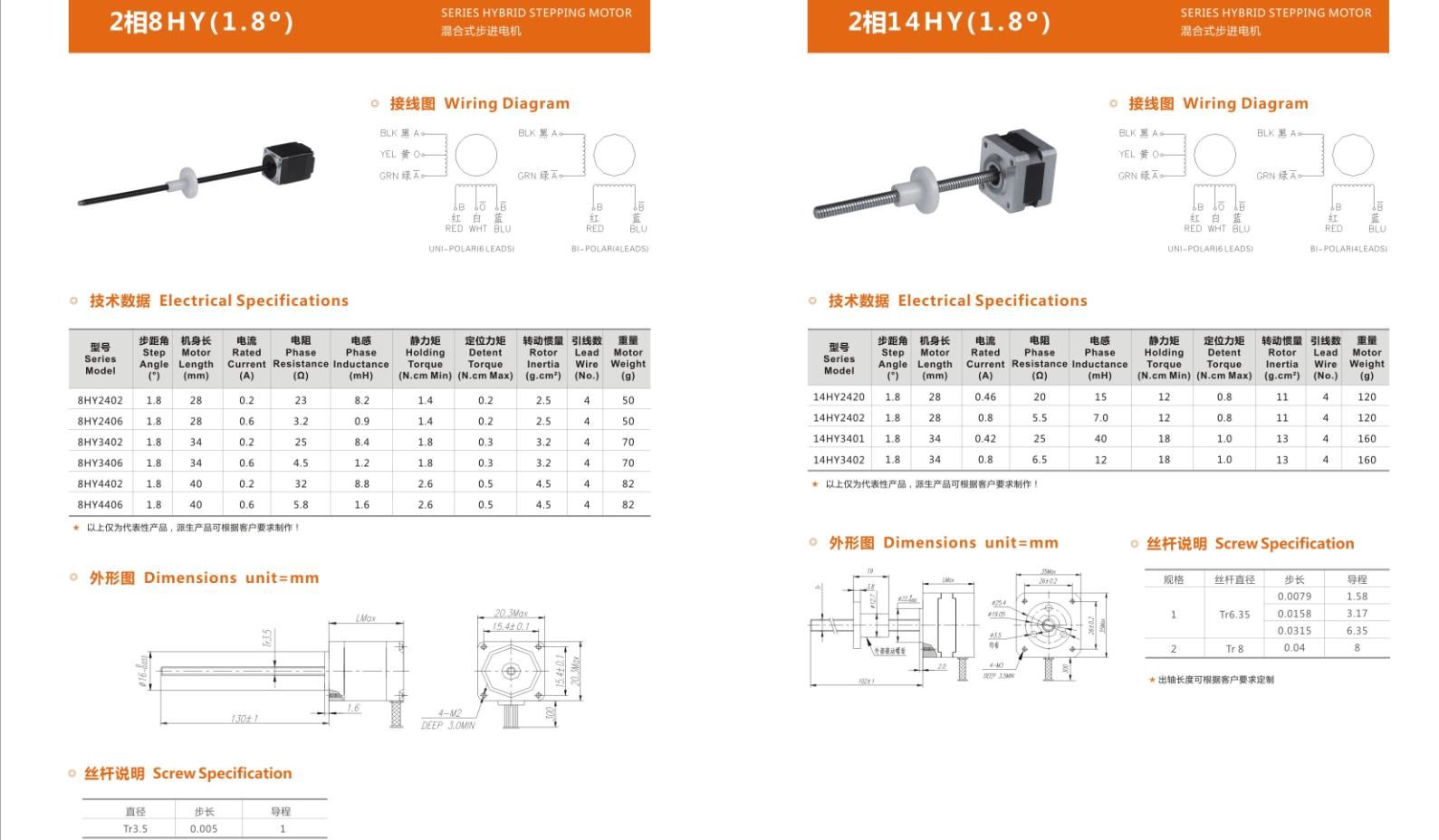

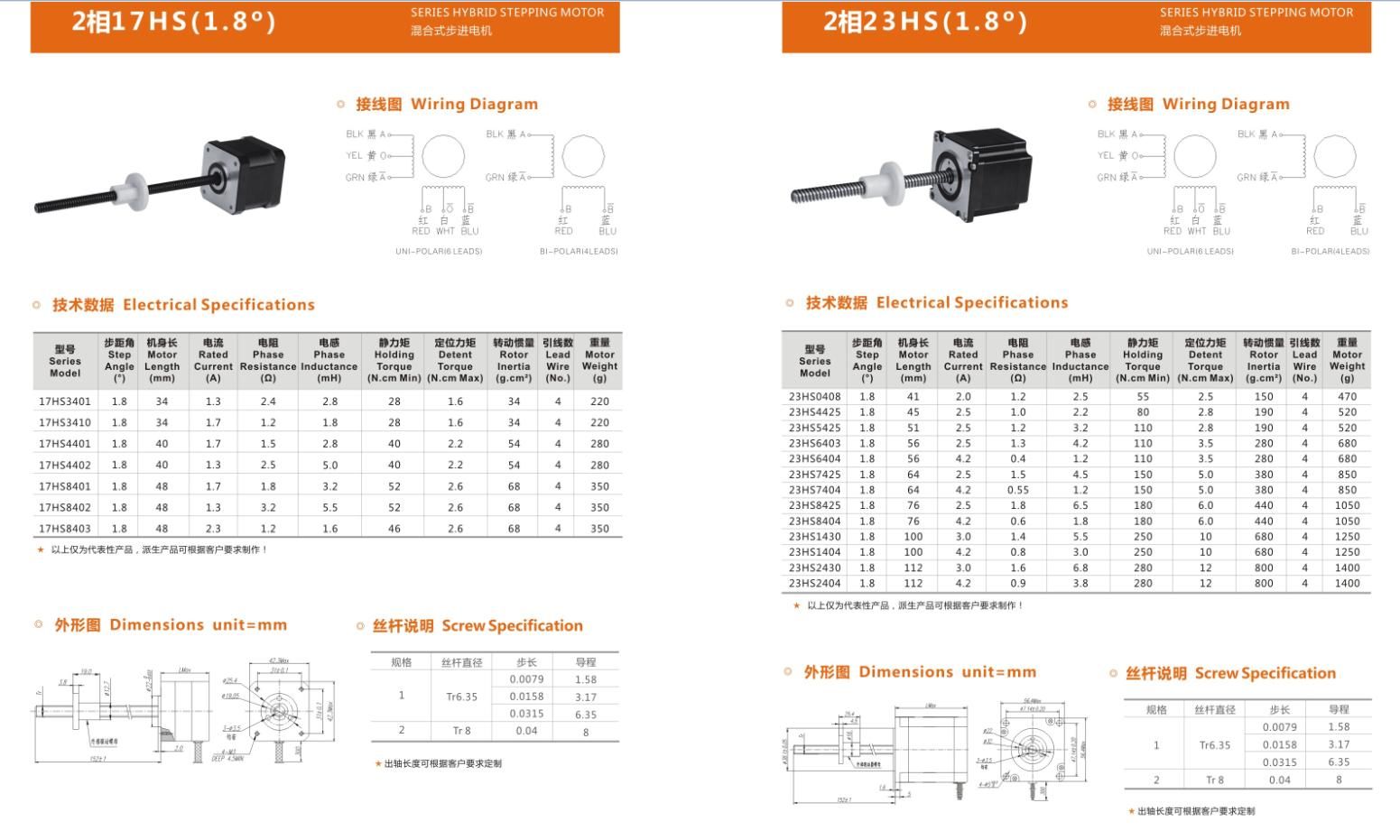

LInear stepper motor specifications:

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
