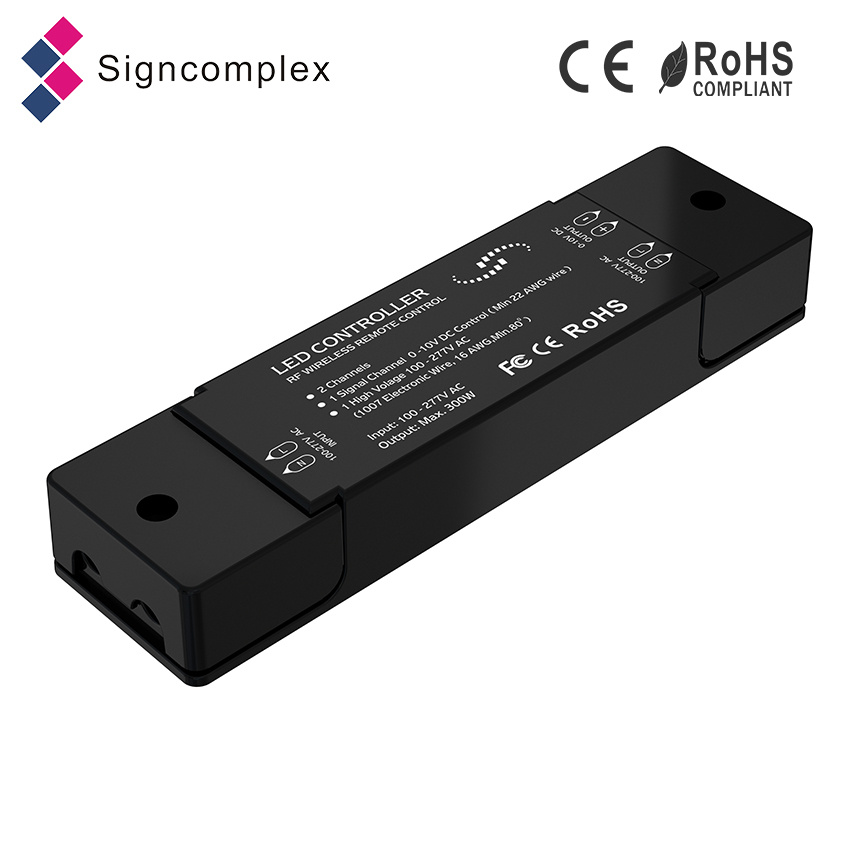

New Single Color/W+Ww/RGB 2.4G Wireless Grouping LED Controller with Ce RoHS FCC

Name: New Single Color/W+Ww/RGB 2.4G Wireless Grouping LED Controller with Ce RoHS FCC
Brand: all-electronics-online.com
SKU: 799798285
Availability: InStock
Rating: 4.5 (122 reviews)

Price:	US $ 25-35/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-0RGB-D4-20
Max. Current:	3A*3CH Max.9A;
Control Color Type:	RGB/Single Color/White+Warm White
Max.Power:	108W(12V)/216W(24V);
RF Frequency:	2.4 GHz
Receiving Sensitivity:	-96dBm
Transmitting Power:	6dBm
Waterproof Grade:	IP20
Change Mode:	52 Colors(RGB)
Product Name:	Grouping LED Controller
Keyword:	2.4G Wireless Controller
Application:	LED Products
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Type:	Touch Slide Ring Control
Voltage:	12/24V DC

Product Description

New single color/W+WW/RGB 2.4G wireless grouping led controller with CE ROHS FCC

2.4G Wireless Grouping Controller

LC-0RGB-D4-20

Description:

The controller adopt high performance processor,and control single color LED strip,white strip and warm white strip,RGB strip via 3 touch sliding ring remote controller of 2.4G.User can choose color,mode and change speed via 2.4G touch sliding ring wireless grouping remote controller;exquisite dimming ,no flicker.A remote controller can control multiple sets of controller,and single set controller has synchronous function,can realized synchronous effect.

Features:

1.Max. control distance of controller can be up to 100m(in open condition);

2.Automatic remember current change states;

3.Each remote controller can control multiple controllers.

Technical parameters:
1.Working voltage:12/24V DC;	9.Working environment:indoor
2.Max.current:3A*3CH Max.9A;	10.Waterproof grade:IP20;
3.Max.power:108W(12V)/216W(24V);	11.Working temperature:-30ºC-55ºC
4.Wireless transmission frequency:2.4GHz;	12.Inner box dimension:L210W140H24mm;
5.Receiving sensitivity:-96dBm;	13.Outer carton dimension:407304.5298mm;
6.Transmitting power:6dBm;	14.Weight of single piece(gross weight):about 50g;
7.Control distance:100m(in open condition);	15.Weight of whole carton :about 8kg;
8.Change mode:52 colors(RGB);	16.Qty. of whole carton:48pieces/carton
