Shenzhen Signcomplex Limited >> Economic 24keys Infrared LED Controller Remote RGB IR Controller for LED Lights

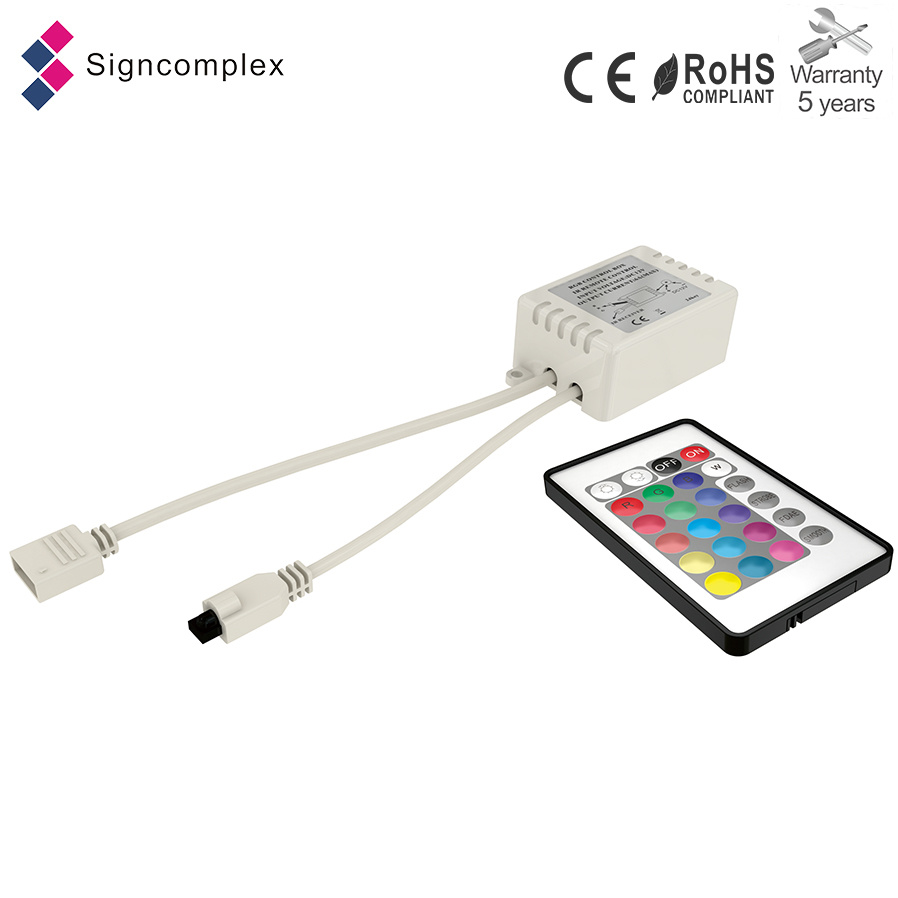

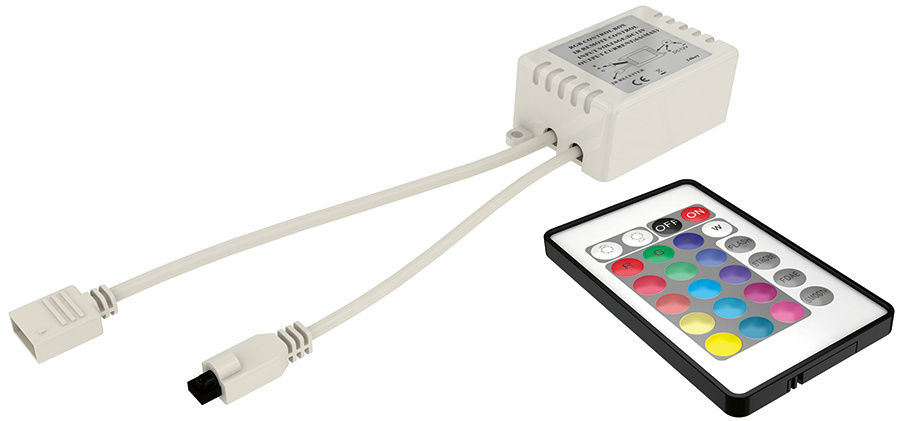

Economic 24keys Infrared LED Controller Remote RGB IR Controller for LED Lights

Economic 24keys Infrared LED Controller Remote RGB IR Controller for LED Lights
Price: US $ 1-2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: LC-0RGB-D2-02
Max. Current: 3A(Single Channel) 9A in Total
Control Color Type: RGB
Receiveing Sensitivity: -96dBm
Color Mode: 52 Kinds
Waterproof Grade: IP20
Working Temperature Range: -30 ºC-55ºC
Product Name: Wireless RGB LED Controller
Application: Control RGB LED Strip, RGB Luminaires....
Signal Transmission: RF Remote Control
Certification: FC
Universal: Universal
Transmission Distance: >100m
Type: Touch Slide Ring Control
Voltage: 12-24V

Product Description

economic 24keys Infrared LED Controller Remote RGB IR controller for LED Lights



Infrared Remote Controller

 LC-0RGB-D2-02


Description:

24 keys IR control ler is with multiple functions, adopt advanced MCU control, used for LEDs
luminaires ; the control ler has 20 modes to choose, low cost,easy wiring, convenient to use; via IR
control ler,LED l ights can be changed the mode,adjusted the speed and brightness,choosen the
static colour various dynamic light change effect can be real ized.


Technical parameters:

working voltage:5-12V DC   working temperature range:-20 ºC-60ºC
output: 3 channels        Product dimension:L62*W35*H23mm
max. load current:2A/channel    packing dimension:L90*W56*H34mm
control color type:RGB      weight(gross weight):70 gram
max.power:72W                 connection type: common anode
remote distance: max.10m static power:<1W
color mode:20 kinds

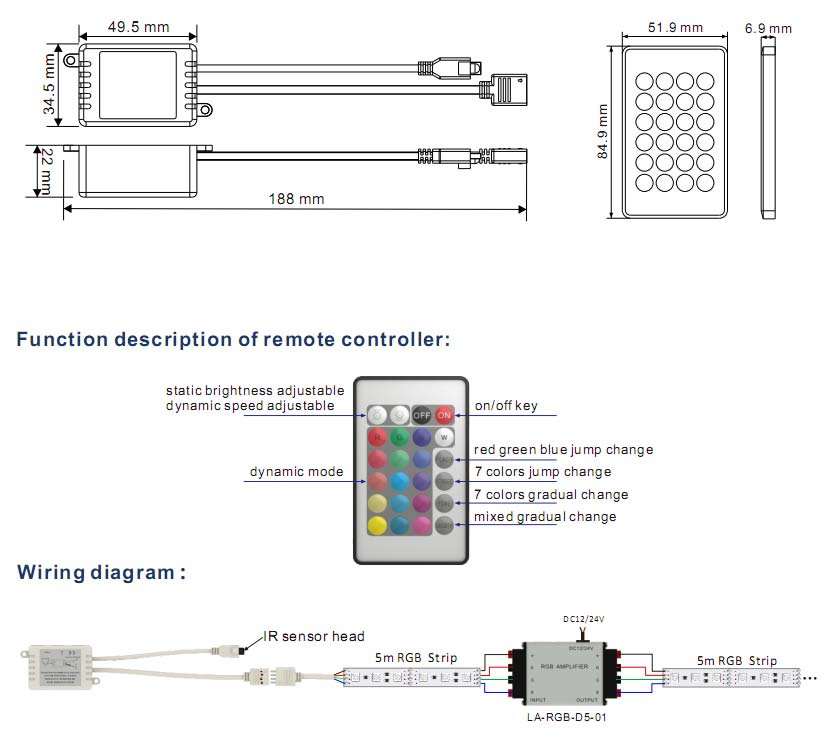

Dimension(unit:mm):

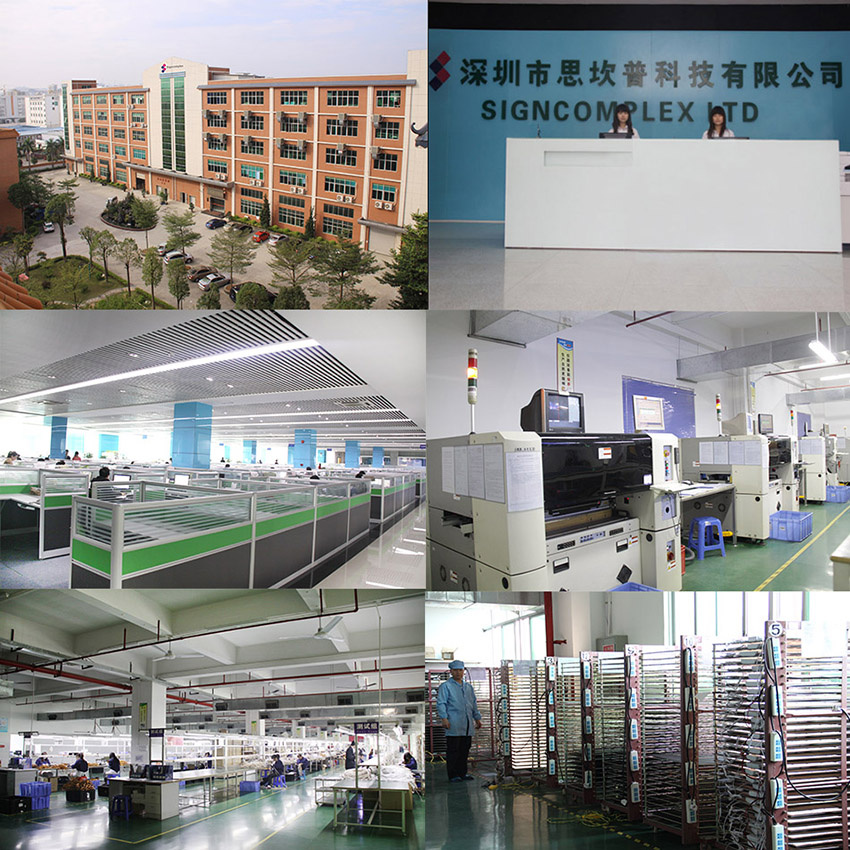

Company pictures:

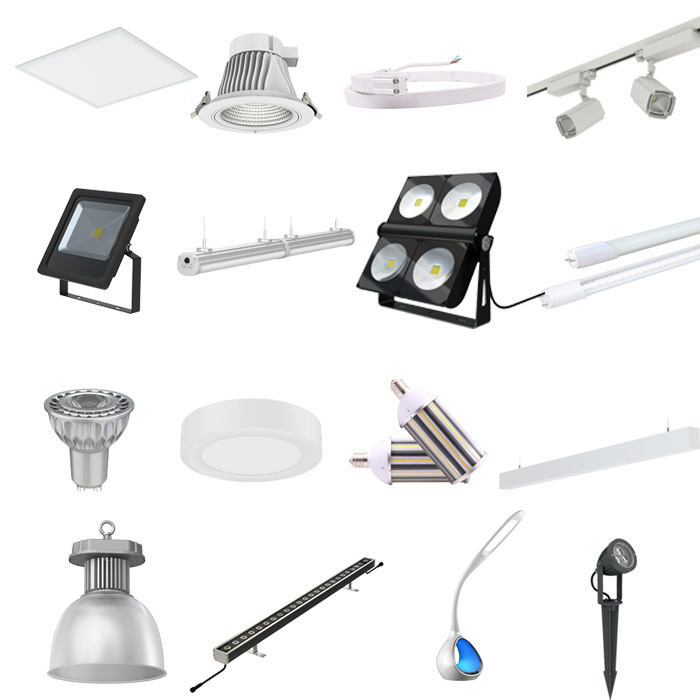

Main Products:


Trade shows:
Signcomplex Ltd., founded in 2006, is a state-level high-tech enterprise and TUV ISO 9001: 2015 certified and registered company. Currently there are over 1000 employees, and a fabrication area of more than 40, 000 square meters. Our company has advanced LED luminaire manufacturing facilities such as auto soldering and SMT machines, electrical testing device such as integrating spheres and distribution photometer, and an independent EMI laboratory as well. We also have a professionally trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant. Signcomplex enjoys a high reputation as a LED luminaire supplier throughout Europe and the US.

Signcomplex devotes itself to developing new products with state-of-the-art technologies. Our 50 people R&D team has abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. Most of our products are self-designed with private moulds. We have more than 40 patents of shape design, utility model patents and software copyright. We monthly develop more than 2 new products and 10 customized products. All our designs fully follow UL and EU electrical safety standards. A customized design can be provided in 3 days tailored to customer's request.

Excellent Signcomplex LED luminaires have already provided inspiration for thousands of designers, architects and engineers all over the world. With our customer, we actively explore the ideas in architectural, residential, commercial, industrial lighting and special auxiliary lighting. We have already helped offering lots of LED lighting solutions to many famous brands, e. g., Marlboro, L'OREAL, Hilton, Four Seasons, Coca-Cola, McDonald's, Armani, The Body Shop, H&M, Cartier and Nissan, etc.

Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer.
