China RF Touchable IP65 RGB LED Remote Waterproof Controller with Ce RoHS FCC

Name: China RF Touchable IP65 RGB LED Remote Waterproof Controller with Ce RoHS FCC
Brand: all-electronics-online.com
SKU: 800051545
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 25-30/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-0RGB-D5-01D
Output Current:	3A /Channel
Output Channel:	RGB 3 Channels Output
Output Power:	108W(12V Input)/216W(24V Input
Waterproof Level:	IP65
Maximum Remote Control Distance:	100
Product Name:	RGB Controller
Keyword:	Waterproof Controller
Control Distance:	100m

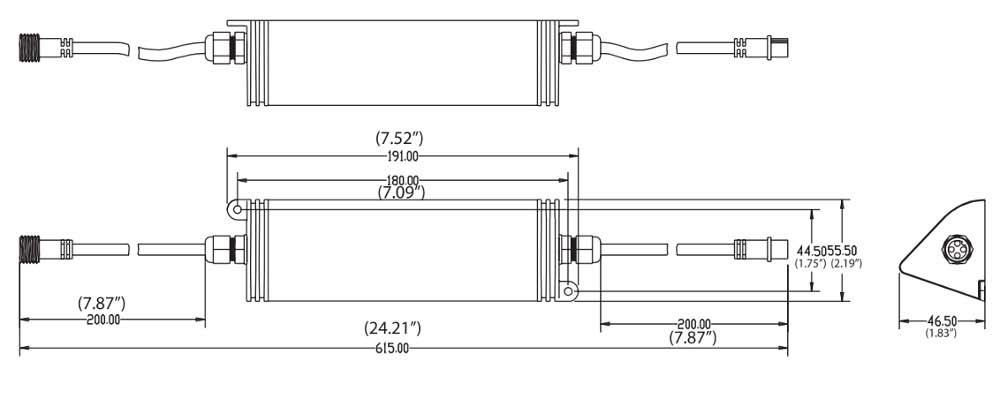

Dimension:	L191W55.5H46.5mm
Packaging Dimension:	L244W70H68mm
Application:	Control RGB LED Strip, RGB Luminaires....
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Type:	Touch Slide Ring Control
Voltage:	DC 12/24V

Product Description

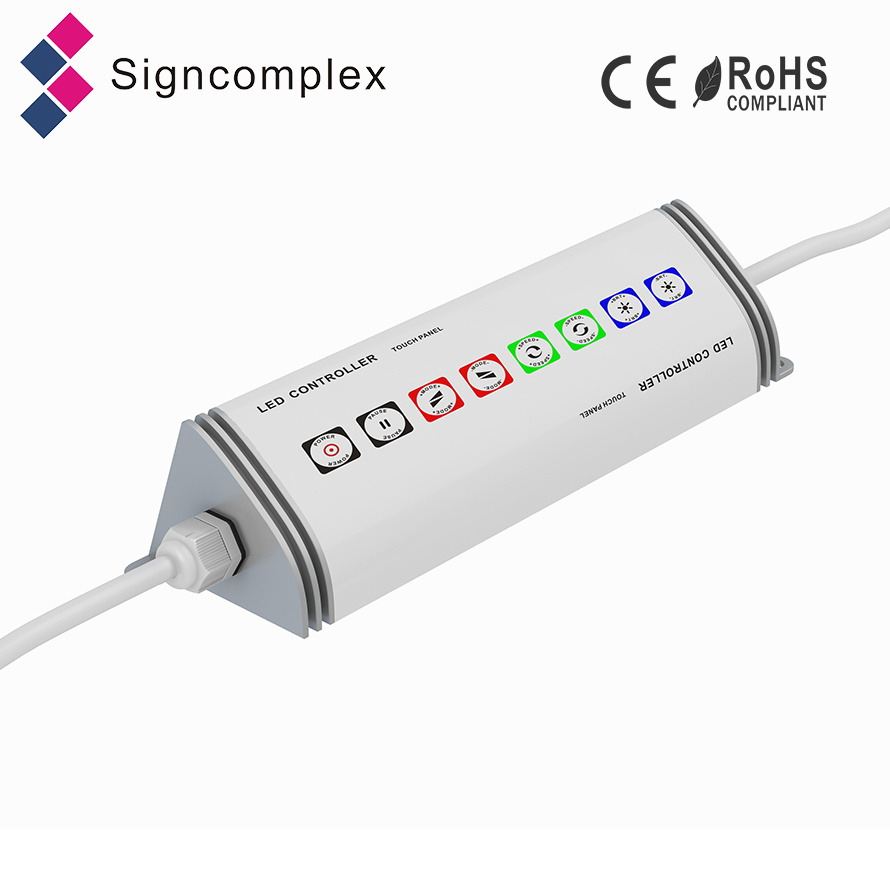

China RF touchable IP65 Waterproof RGB LED remote controller with CE ROHS FCC

Waterproof Led Controller

LC-0RGB-D5-01C/D

Features:
The waterproof controller is used for controlling ordinary RGB LED strip and low-voltage RGB LED lights,and there are built-in 52 kinds change modes.Unique touch technology,humanized operation,convenient to use;it can be controlled via touch panel of controller,and it can also be remotely controlled with wireless remote controller.Automatically adapt to DC12V/24V voltage input,apply to most of the RGB LED products.MCU built-in hardware PWM dimming,fine and smooth dimming,no flicker,total current of RGB 3-way driver reach 9A.

Function description:
1)52 color modes,such as 7-color static state(can dimming seperately),jump change,gradual change (with pause function);
2)255 level dimming;
3)255 level speed regulation;

Technical parameters:
Working voltage:12/24V DC	Waterproof level:IP65
Output channel:RGB 3 channels output	Controller dimension:L191W55.5H46.5mm
Output current:3A /channel	Packaging dimension:L244W70H68mm
Output power:108W(12V input)/216W(24V input	Outer carton dimension:508.5423263mm
Maximum remote control distance:100m(barrier-free indoor)

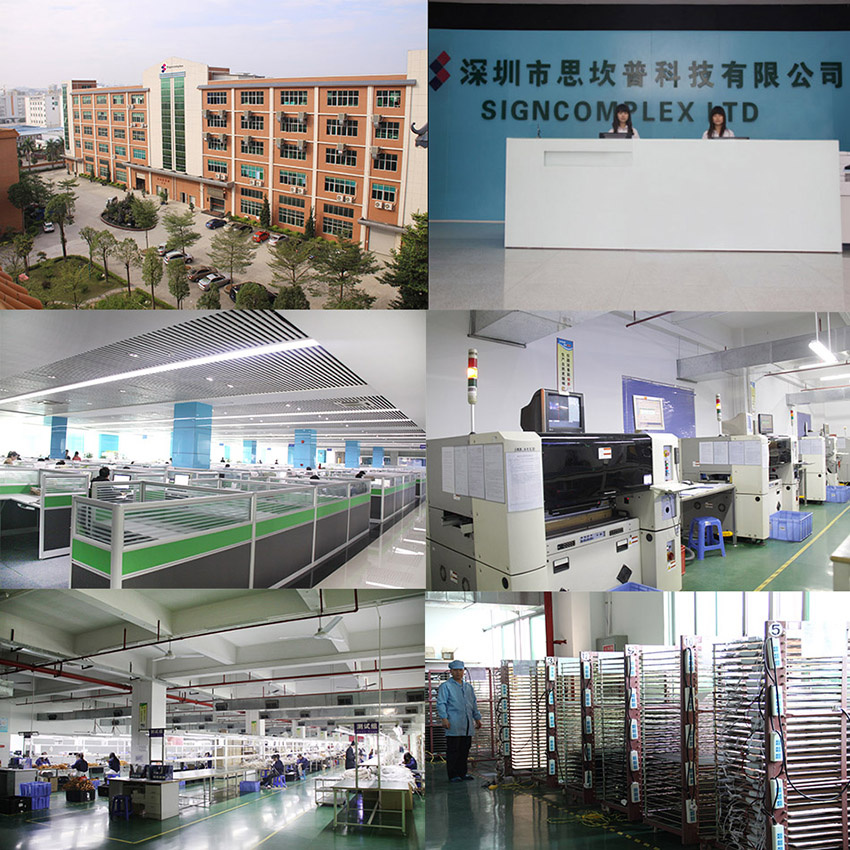

Company pictures:

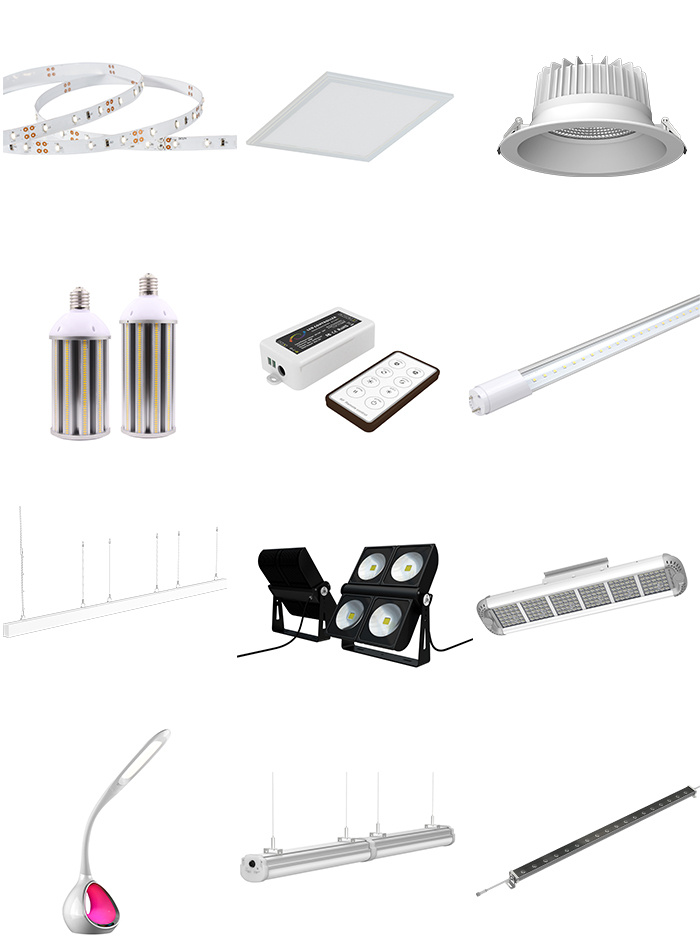

Main Products:

Trade shows:

Sale team:

Signcomplex Ltd., founded in 2006, is a state-level high-tech enterprise and TUV ISO 9001: 2015 certified and registered company. Currently there are over 1000 employees, and a fabrication area of more than 40, 000 square meters. Our company has advanced LED luminaire manufacturing facilities such as auto soldering and SMT machines, electrical testing device such as integrating spheres and distribution photometer, and an independent EMI laboratory as well. We also have a professionally trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant. Signcomplex enjoys a high reputation as a LED luminaire supplier throughout Europe and the US.

Signcomplex devotes itself to developing new products with state-of-the-art technologies. Our 50 people R&D team has abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. Most of our products are self-designed with private moulds. We have more than 40 patents of shape design, utility model patents and software copyright. We monthly develop more than 2 new products and 10 customized products. All our designs fully follow UL and EU electrical safety standards. A customized design can be provided in 3 days tailored to customer's request.

Excellent Signcomplex LED luminaires have already provided inspiration for thousands of designers, architects and engineers all over the world. With our customer, we actively explore the ideas in architectural, residential, commercial, industrial lighting and special auxiliary lighting. We have already helped offering lots of LED lighting solutions to many famous brands, e. g., Marlboro, L'OREAL, Hilton, Four Seasons, Coca-Cola, McDonald's, Armani, The Body Shop, H&M, Cartier and Nissan, etc.

Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer.
